DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0424R3013FAN AXIAL 40X28MM 24VDC WIRE |
371 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 18.0 CFM (0.504m³/min) | 1.057 in H2O (263.3 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 6 W | 14000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.115 lb (52.16 g) |
|

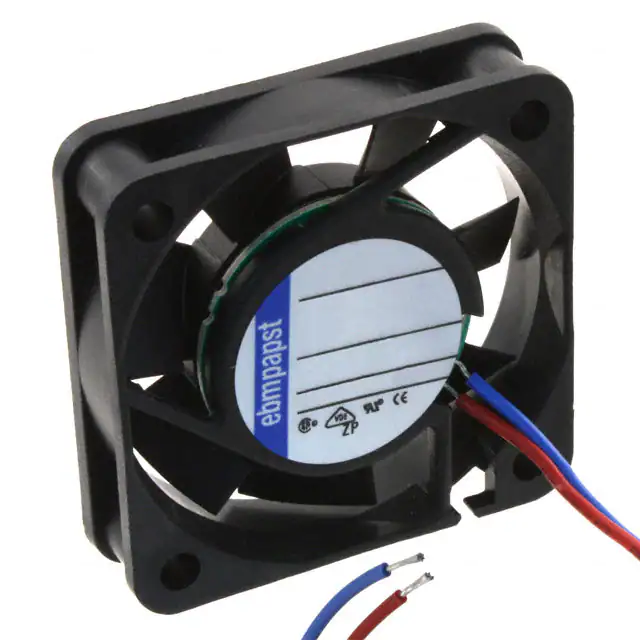

412FHFAN AXIAL 40X10MM 12VDC WIRE |
1,264 |
|
Datasheet |
400F | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | - | Sintec | 10.00mm | Tubeaxial | - | 26.0dB(A) | 800 mW | 6000 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.038 lb (17.24 g) |
|
OD9225-12HB01AFAN AXIAL 92.5X25MM 12VDC WIRE |
142 |
|
Datasheet |
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 60.2 CFM (1.69m³/min) | 0.025 in H2O (6.2 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 38.0dB | - | 3325 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
AFB0412VB-AFAN AXIAL 40X15MM 12VDC WIRE |
379 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.2 CFM (0.426m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 2.52 W | 12000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.057 lb (25.85 g) |
|
BFB0712HH-AWPHFAN BLOWER 75.7X25MM 12VDC WIRE |
2,374 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 15.3 CFM (0.428m³/min) | 0.977 in H2O (243.4 Pa) | Ball | 25.00mm | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 4.08 W | 4400 RPM | CE, cURus, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

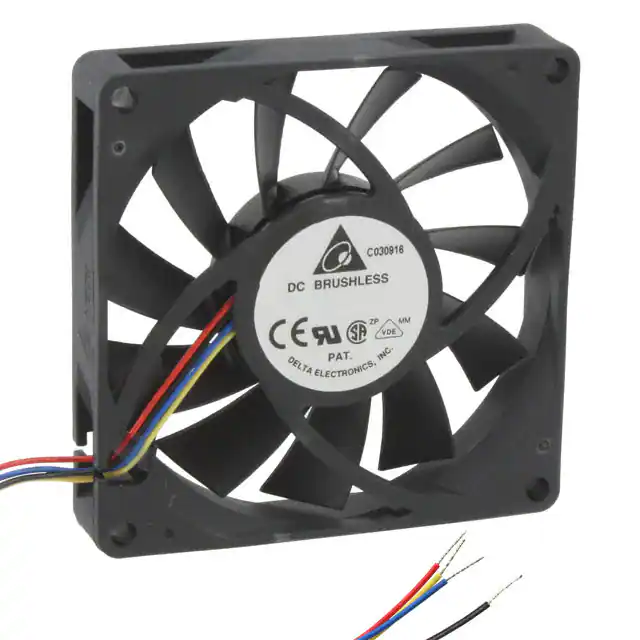

EFC0812DB-F00FAN AXIAL 80X15MM 12VDC WIRE |
487 |
|
Datasheet |
EFC | Box | Active | 12VDC | Square - 80mm L x 80mm H | 48.8 CFM (1.37m³/min) | 0.171 in H2O (42.6 Pa) | Ball | 15.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 3.96 W | 3800 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.148 lb (67.13 g) |
|

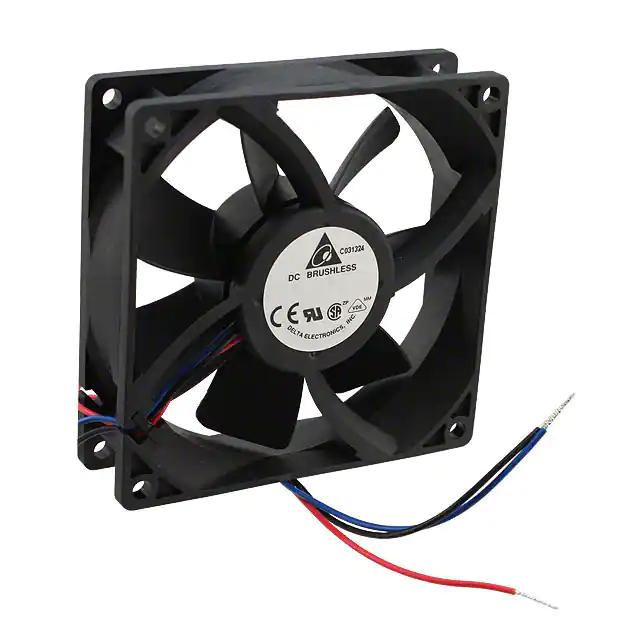

AFB0912SH-AF00FAN AXIAL 92X25.4MM 12VDC WIRE |
1,598 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 9 W | 4800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.267 lb (121.11 g) |
|
412FMFAN AXIAL 40X10MM 12VDC WIRE |
552 |
|
Datasheet |
400F | Box | Active | 12VDC | Square - 40mm L x 40mm H | 3.5 CFM (0.098m³/min) | - | Sintec | 10.00mm | Tubeaxial | - | 16.5dB(A) | 600 mW | 4300 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.038 lb (17.24 g) |
|

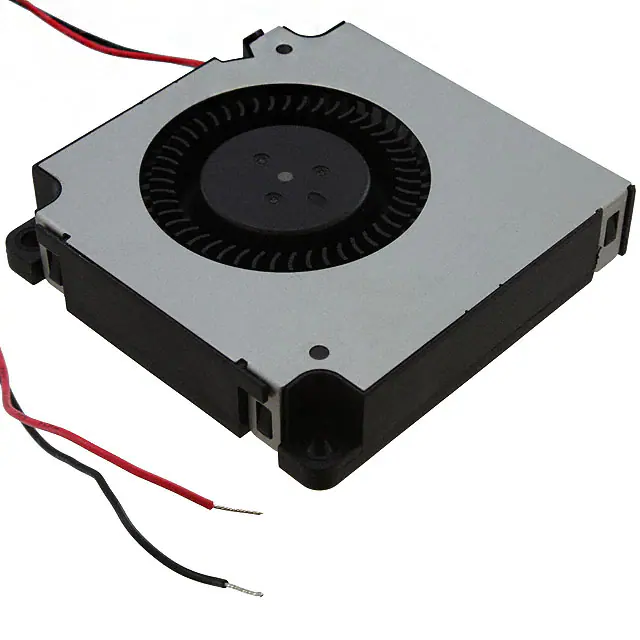

BFB0512HHA-CFAN BLOWER 50X10.3MM 12VDC WIRE |
12,027 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 4.0 CFM (0.112m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 10.30mm | Blower | Locked Rotor Protection | 37.5dB(A) | 1.92 W | 5900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.05 lb (22.68 g) |
|
BFB04512HHA-CF00FAN BLOWER 45X10.3MM 12VDC WIRE |
1,792 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square - 45mm L x 45mm H | 3.5 CFM (0.098m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 10.30mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 35.5dB(A) | 1.56 W | 5900 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.04 lb (18.14 g) |
|
BFB04512VHDFAN BLOWER 45X20MM 12VDC WIRE |
1,686 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 45mm L x 45mm H | 6.0 CFM (0.168m³/min) | 0.557 in H2O (138.7 Pa) | Ball | 20.00mm | Blower | Locked Rotor Protection | 30.5dB(A) | 1.92 W | 4500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.038 lb (17.24 g) |
|
BFB04505HHA-CF00FAN BLOWER 45X10.3MM 5VDC WIRE |
324 |
|
Datasheet |
BFB | Box | Active | 5VDC | Square - 45mm L x 45mm H | 3.5 CFM (0.098m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 10.30mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 35.5dB(A) | 1.25 W | 5900 RPM | CE, cURus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.04 lb (18.14 g) |
|
CFM-8025BG-170-517-22FAN AXIAL 80X25.4MM 12VDC WIRE |
151 |
|
Datasheet |
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 72.4 CFM (2.03m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.8dB(A) | 9 W | 7000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MEC0252V1-000U-A99FAN AXIAL 120X25MM 24VDC WIRE |
1,562 |
|
Datasheet |
MagLev® MEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart | 44.5dB(A) | 5 W | 3100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.359 lb (162.84 g) |
|

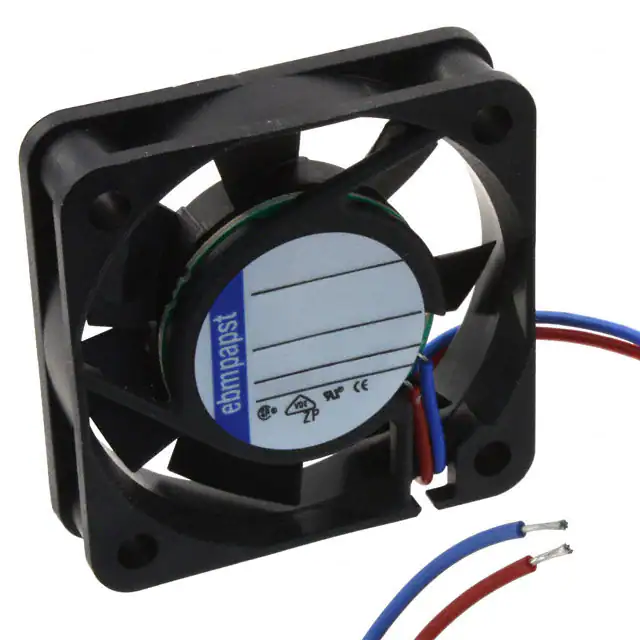

414FFAN AXIAL 40X10MM 24VDC WIRE |
1,157 |
|
Datasheet |
400F | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | - | Sintec | 10.00mm | Tubeaxial | - | 22.1dB(A) | 800 mW | 5400 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.038 lb (17.24 g) |
|

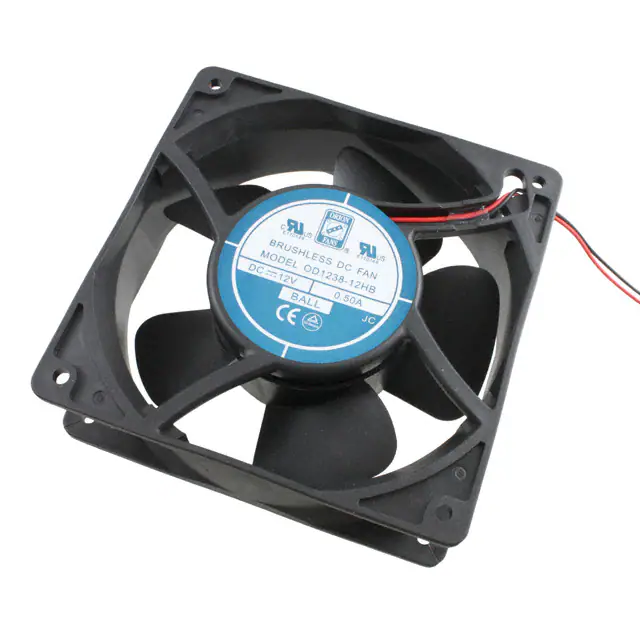

OD1238-12HBFAN AXIAL 120X38MM 12VDC WIRE |
2,475 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 44.1dB(A) | 6 W | 2895 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.572 lb (259.45 g) |
|
08028GS-12N-AA-00FAN BLOWER 78.9X28MM 12VDC WIRE |
178 |
|
Datasheet |
08028GS | Box | Active | 12VDC | Rectangular/Rounded - 78.9mm L x 79.7mm H | 17.0 CFM (0.476m³/min) | 1.075 in H2O (267.8 Pa) | Sleeve | 28.00mm | Blower | Auto Restart | 40.0dB | 4.32 W | 3650 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|

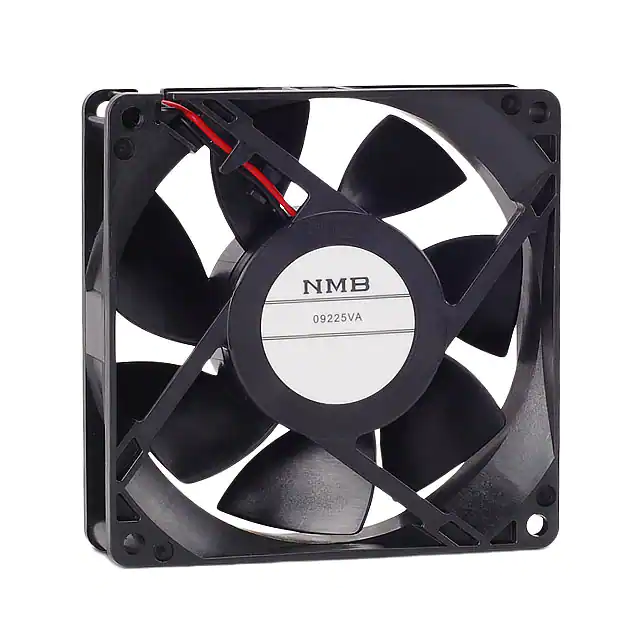

09225VA-12Q-CA-00FAN AXIAL 92X25MM 12VDC WIRE |
10,943 |
|
Datasheet |
09225VA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 25.00mm | Tubeaxial | - | 51.0dB | 8.64 W | 5600 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 0.331 lb (150.14 g) |
|
9GA0412P6H001FAN AXIAL 40X20MM 12VDC WIRE |
8,171 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.770 in H2O (191.8 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 1.68 W | 12400 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.077 lb (34.93 g) |
|

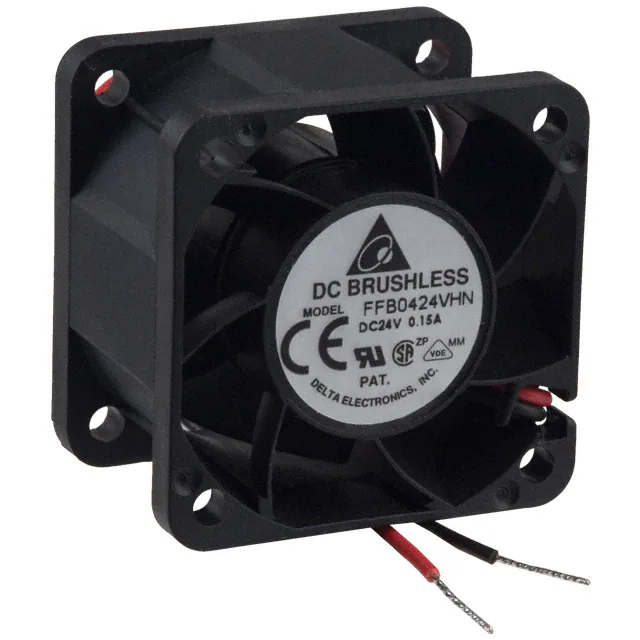

FFB0424VHNFAN AXIAL 40X28MM 24VDC WIRE |
1,449 |
|
Datasheet |
FFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 2.4 W | 9500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.071 lb (32.21 g) |
