DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0848S401FAN AXIAL 80X25MM 48VDC WIRE |
113 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.88 W | 3400 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|

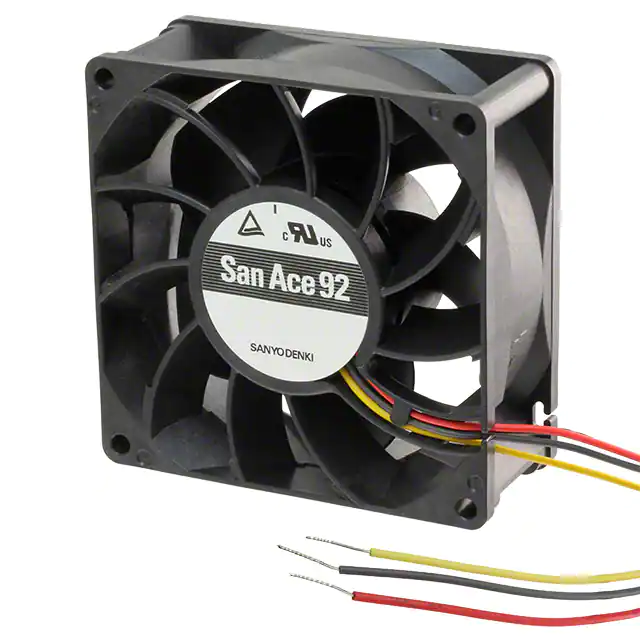

9S0912F401FAN AXIAL 92X25MM 12VDC WIRE |
766 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.68 W | 2650 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.222 lb (100.7 g) |
|
|
9S0912F4011FAN AXIAL 92X25MM 12VDC WIRE |
514 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.68 W | 2650 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.222 lb (100.7 g) |
|
UF3A3-700TCFAN AXIAL 10X3MM VAPO 3VDC WIRE |
931 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 10mm L x 10mm H | 0.121 CFM (0.003m³/min) | 0.042 in H2O (10.4 Pa) | Vapo-Bearing™ | 3.00mm | Tubeaxial | Auto Restart | 21.0dB(A) | 290 mW | 17000 RPM | CE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.002 lb (0.91 g) |
|

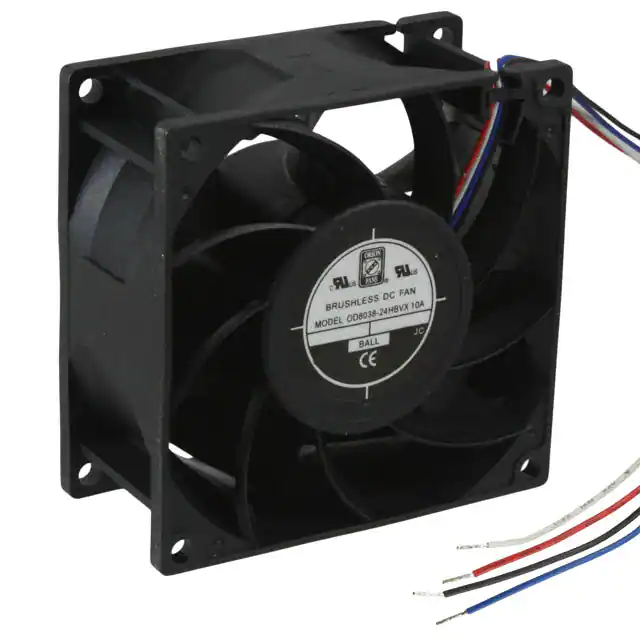

OD8038-24HBVXC10AFAN AXIAL 80X38MM 24VDC WIRE |
8,042 |
|
Datasheet |
OD8038 VA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 99.0 CFM (2.77m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.0dB | 13 W | 6300 RPM | cURus | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OD8038-24HBVXCFAN AXIAL 80X38MM 24VDC WIRE |
4,421 |
|
Datasheet |
OD8038 VA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 99.0 CFM (2.77m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 57.0dB | 13 W | 6300 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9G0924G1D01FAN AXIAL 92X38MM 24VDC WIRE |
666 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 50.0dB(A) | 13.2 W | 5000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.397 lb (180.08 g) |
|

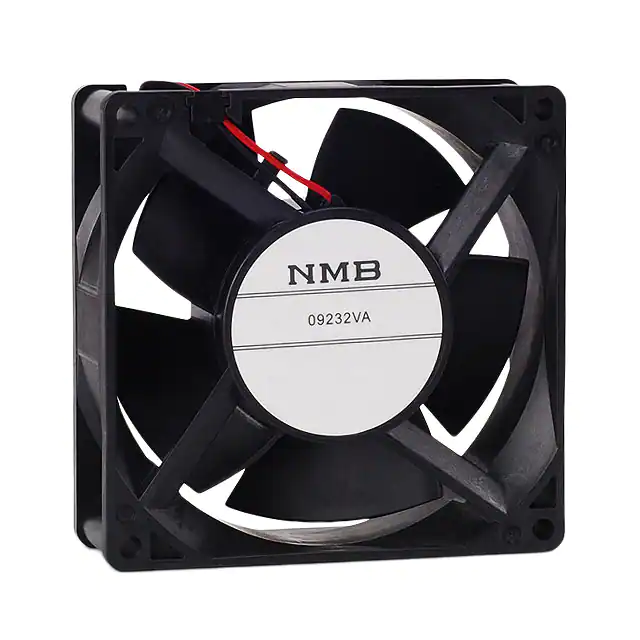

09232VA-24R-CAS-0FAN AXIAL 92X32MM 24VDC WIRE |
174 |
|
Datasheet |
09232VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 105.9 CFM (2.97m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 32.00mm | Tubeaxial | - | 59.0dB(A) | 12 W | 7000 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 0.485 lb (219.99 g) |
|
MS6038H12B-FSR-2EMFAN AXIAL 60X38MM 12VDC WIRE |
478 |
|
Datasheet |
MS6038-S | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 59.0dB(A) | - | 11000 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.231 lb (104.78 g) |
|
BFB0712HH-AF00FAN BLOWER 75.7X25MM 12VDC WIRE |
241 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 15.3 CFM (0.428m³/min) | 0.977 in H2O (243.4 Pa) | Ball | 25.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 4.08 W | 4400 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
AFB1212SHEFAN AXIAL 120X38MM 12VDC WIRE |
1,509 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 12.6 W | 3700 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.564 lb (255.83 g) |
|

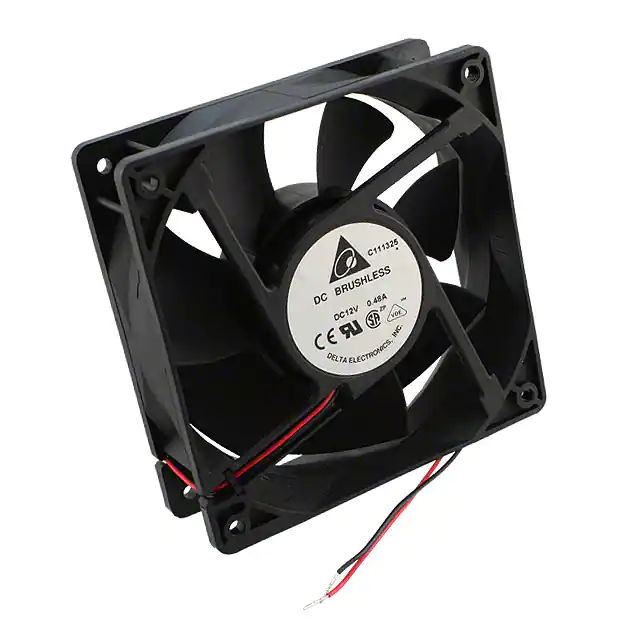

AFB1212HEFAN AXIAL 120X38MM 12VDC WIRE |
156 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 3.84 W | 2600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.565 lb (256.28 g) |
|
614FFAN AXIAL 60X15MM 24VDC WIRE |
211 |
|
Datasheet |
600F | Box | Active | 24VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | - | Sintec | 15.00mm | Tubeaxial | - | 27.0dB(A) | 1.1 W | 3900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.066 lb (29.94 g) |
|
|
MS1225H24B-FHR-2EMFAN AXIAL 120X25MM 24VDC WIRE |
146 |
|
Datasheet |
MS1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 86.0 CFM (2.41m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 41.0dB(A) | - | 2600 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.267 lb (121.11 g) |
|
EEC0254B1-000U-A99FAN AXIAL 120X25MM 48VDC WIRE |
3,038 |
|
Datasheet |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 44.5dB(A) | 5.7 W | 3100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.346 lb (156.94 g) |
|

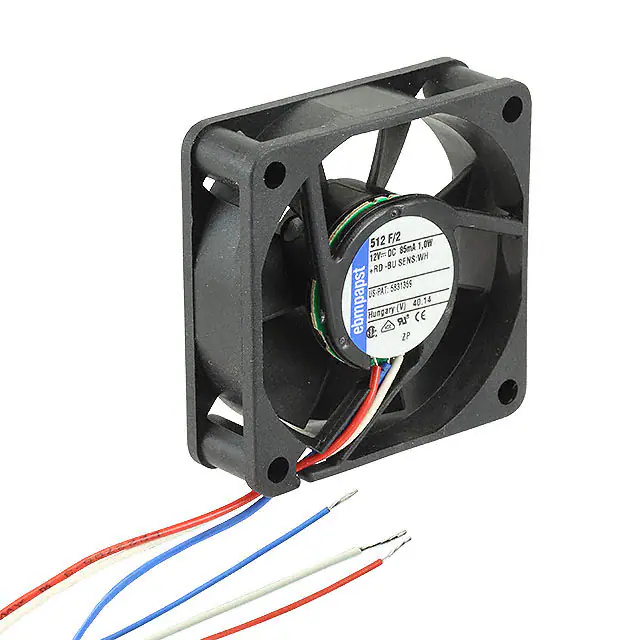

512F/2FAN AXIAL 50X15MM 12VDC WIRE |
1,172 |
|
Datasheet |
500F | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 11.8 CFM (0.330m³/min) | - | Sintec | 15.00mm | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1 W | 5000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.055 lb (24.95 g) |
.jpg)
|
9GA0624P6G001FAN AXIAL 60X20MM 24VDC WIRE |
2,074 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 31.1 CFM (0.871m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 20.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 2.88 W | 6850 RPM | CSA, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.154 lb (69.85 g) |
|
|
9GA0624P6S001FAN AXIAL 60X20MM 24VDC WIRE |
287 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | 0.326 in H2O (81.2 Pa) | Ball | 20.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 1.68 W | 5500 RPM | CSA, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.154 lb (69.85 g) |
|
614NGMFAN AXIAL 60X25.4MM 24VDC WIRE |
1,450 |
|
Datasheet |
600NG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.6 CFM (0.577m³/min) | - | Sintec | 25.40mm | Tubeaxial | - | 28.0dB(A) | 1.7 W | 4100 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.145 lb (65.77 g) |
|

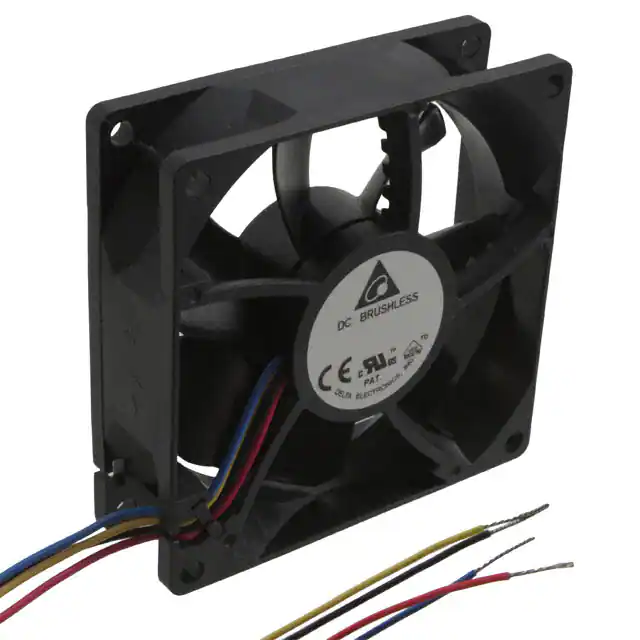

QFR0812SH-CX13FAN AXIAL 80X25.4MM 12VDC WIRE |
216 |
|
Datasheet |
QFR | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 54.6 CFM (1.53m³/min) | 0.331 in H2O (82.4 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.2dB(A) | 3.96 W | 4300 RPM | CE, cURus, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.191 lb (86.64 g) |
