DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMD1208PMB1-A.(2).GNFAN AXIAL 80X38MM 12VDC WIRE |
574 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 84.1 CFM (2.35m³/min) | 0.740 in H2O (184.3 Pa) | Ball | 38.00mm | Tubeaxial | - | 55.2dB(A) | 9.1 W | 5700 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.386 lb (175.09 g) |
_Series.jpg)
|
3414NGHFAN AXIAL 92X25.4MM 24VDC WIRE |
108 |
|
Datasheet |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 55.3 CFM (1.55m³/min) | - | Sintec | 25.40mm | Tubeaxial | - | 36.0dB(A) | 3 W | 3000 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.22 lb (99.79 g) |
|
PFC0612DE-F00FAN AXIAL 60X38MM 12VDC WIRE |
1,146 |
|
Datasheet |
PFC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 67.8 CFM (1.90m³/min) | 2.129 in H2O (530.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 16.8 W | 12000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.287 lb (130.18 g) |
|
9G0924H102FAN AXIAL 92X38MM 24VDC WIRE |
510 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 90.0 CFM (2.52m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 38.00mm | Tubeaxial | - | 43.0dB(A) | 7.2 W | 4000 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.397 lb (180.08 g) |
|

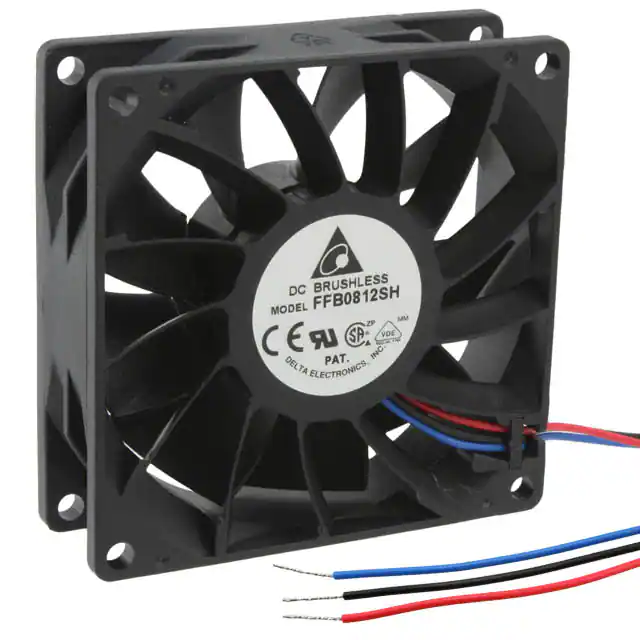

FFB0812SH-F00FAN AXIAL 80X25.4MM 12VDC WIRE |
449 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 67.0 CFM (1.88m³/min) | 0.392 in H2O (97.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.6dB(A) | 6 W | 4500 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.253 lb (114.76 g) |
|
9GA0912P4J03FAN AXIAL 92X25MM 12VDC WIRE |
2,189 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 4.68 W | 5000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.276 lb (125.19 g) |
|
|
9GA0912P4J031FAN AXIAL 92X25MM 12VDC WIRE |
848 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 4.68 W | 5000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.276 lb (125.19 g) |
|
MR1238E24B1+6-FSRFAN AXIAL 120X38MM 24VDC WIRE |
264 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 67.9dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.838 lb (380.11 g) |
|
614NGHHFAN AXIAL 60X25.4MM 24VDC WIRE |
577 |
|
Datasheet |
600NG | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Sintec | 25.40mm | Tubeaxial | - | 43.0dB(A) | 3.8 W | - | CE, CSA, UL, VDE | 2 Wire Leads | - | - | 0.19 lb (86.18 g) |
.jpg)
|
9G0612P4S001FAN AXIAL 60X25MM 12VDC WIRE |
2,461 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.04 W | 11000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
9G0612P4S0011FAN AXIAL 60X25MM 12VDC WIRE |
2,067 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.04 W | 11000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|

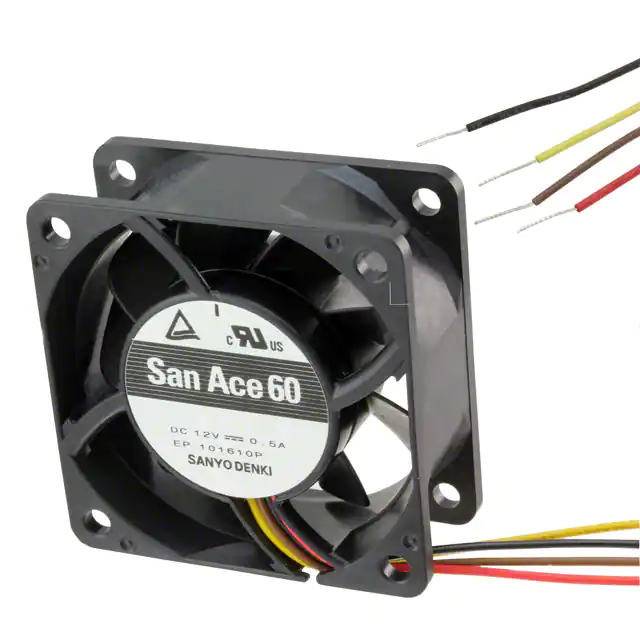

9G0612P4H0011FAN AXIAL 60X25MM 12VDC WIRE |
727 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 6 W | 9500 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|

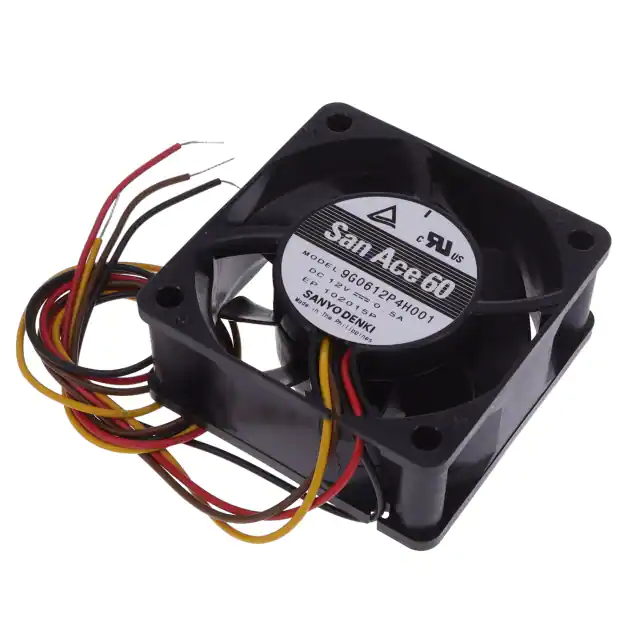

9G0612P4H001FAN AXIAL 60X25MM 12VDC WIRE |
556 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 6 W | 9500 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|

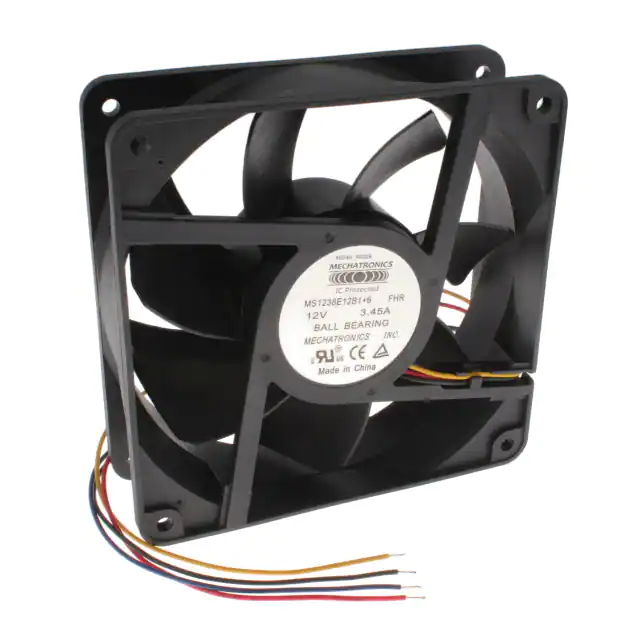

MS1238E12B1+6-FHRFAN AXIAL 120X38MM 12VDC WIRE |
623 |
|
Datasheet |
MS1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | - | 5000 RPM | - | 4 Wire Leads | - | - | 0.667 lb (302.55 g) |
|
MS1238H24B1+6-FHRFAN AXIAL 120X38MM 24VDC WIRE |
187 |
|
Datasheet |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 203.3 CFM (5.69m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | - | 4000 RPM | - | 4 Wire Leads | - | - | 0.667 lb (302.55 g) |
|
GF80321B1-000U-SC9FAN AXIAL 80X32MM 12VDC WIRE |
166 |
|
Datasheet |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 59.4 CFM (1.66m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 32.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 45.2dB(A) | 3.72 W | 4800 RPM | CE, CUR, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP56 - Dust Protected, Water Resistant | 0.24 lb (108.86 g) |
|
9G0924G101FAN AXIAL 92X38MM 24VDC WIRE |
241 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 13.2 W | 5000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.397 lb (180.08 g) |
|
AFB1212HHE-TP02FAN AXIAL 120X38MM 12VDC WIRE |
2,838 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 4.8 W | 2900 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.565 lb (256.28 g) |
|
GE92252B1-000U-AE9FAN AXIAL 92X25MM 24VDC WIRE |
1,531 |
|
Datasheet |
GE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 47.0dB(A) | 5.28 W | 4500 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.249 lb (112.94 g) |
|
|
FFB0448EN-00EEYFAN AXIAL 40X28MM 48VDC WIRE |
269 |
|
Datasheet |
FFB | Box | Not For New Designs | 48VDC | Square - 40mm L x 40mm H | 35.4 CFM (0.992m³/min) | 4.880 in H2O (1215.6 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 20.64 W | 26500 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
