| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
08020SA-24M-EA-00FAN AXIAL 80X20MM 24VDC WIRE |
1,034 |
|
Datasheet |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 39.9 CFM (1.12m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 37.5dB(A) | 2.16 W | 3700 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
08020SA-12J-EA-00FAN AXIAL 80X20MM 12VDC WIRE |
197 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 20.00mm | Tubeaxial | - | 27.0dB | 600 mW | 2600 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
109P0412P3H013FAN AXIAL 40X28MM 12VDC WIRE |
3,270 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.34 W | 8700 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.115 lb (52.16 g) |
|
04020VA-24P-AA-00FAN AXIAL 40X20MM 24VDC WIRE |
350 |
|
Datasheet |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 37.0dB | 2.4 W | 9500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
04020VA-12P-AA-00FAN AXIAL 40X20MM 12VDC WIRE |
122 |
|
Datasheet |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 37.0dB | 1.6 W | 9500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
06020SA-24N-AL-00FAN AXIAL 60X20MM 24VDC WIRE |
105 |
|
Datasheet |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.5 CFM (0.574m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Sensor | 30.5dB | 1.68 W | 4400 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|
DC0802012U2B-2T0FAN AXIAL 80X20MM 12VDC WIRE |
274 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.6 W | 4300 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FAD1-06025BBHW12-AFAN AXIAL 60X25MM BALL 5VDC WIRE |
1,521 |
|
Datasheet |
FAD1-06025-A | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 25.00mm | Tubeaxial | - | 33.1dB(A) | 1.75 W | 4500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.137 lb (62.14 g) |
|
EFB0412HHDFAN AXIAL 40X20MM 12VDC WIRE |
754 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection | 30.5dB(A) | 1.2 W | 8200 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.073 lb (33.11 g) |
|

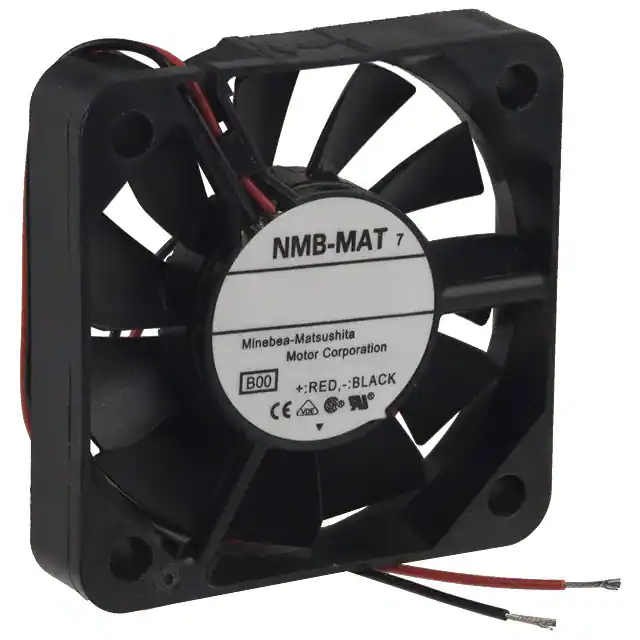

2004KL-01W-B50-B00FAN AXIAL 50X10MM BALL 5VDC WIRE |
532 |
|
Datasheet |
2004KL | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.2 CFM (0.286m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 10.00mm | Tubeaxial | - | 34.0dB | 1.5 W | 5500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.044 lb (19.96 g) |
|
CFM-9225V-142-437FAN AXIAL 92X25MM 12VDC WIRE |
471 |
|
Datasheet |
CFM-92V | Tray | Active | 12VDC | Square - 92mm L x 92mm H | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | 25.00mm | Tubeaxial | Auto Restart | 43.7dB(A) | 3.87 W | 4200 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.234 lb (106.14 g) |
|
|
DC0501024M2B-2T0FAN 50X10MM 24VDC |
559 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.92 W | 5500 RPM | CE, cURus | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9S0924L402FAN AXIAL 92X25MM 24VDC WIRE |
121 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 17.0dB(A) | 960 mW | 1750 RPM | CSA, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.222 lb (100.7 g) |
|
OD3010-05MB02AFAN AXIAL 30X10MM BALL 5VDC WIRE |
1,013 |
|
Datasheet |
OD3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.3 CFM (0.092m³/min) | 0.180 in H2O (45.0 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Sensor | 28.4dB(A) | 400 mW | 9000 RPM | CE, cURus | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.018 lb (8.16 g) |
|
|
OD6010-24LBThermal Products |
329 |
|
Datasheet |
OD6010 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 14.3 CFM (0.400m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart | 28.1dB(A) | 1.6 W | 3500 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
9GA0412P3K011FAN AXIAL 40X28MM 12VDC WIRE |
184 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.6 CFM (0.801m³/min) | 3.210 in H2O (800.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 11.04 W | 22000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
9GV3612G301FAN AXIAL 36X28MM 12VDC WIRE |
2,922 |
|
Datasheet |
San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 14.1 CFM (0.395m³/min) | 1.104 in H2O (275.0 Pa) | Ball | 28.00mm | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 4.08 W | 14000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.101 lb (45.81 g) |
|
AFB0924VH-R00FAN AXIAL 92X25.4MM 24VDC WIRE |
1,269 |
|
Datasheet |
AFB | Tray | Active | 24VDC | Square - 92mm L x 92mm H | 67.8 CFM (1.90m³/min) | 0.302 in H2O (75.2 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Sensor | 45.0dB(A) | 5.28 W | 3800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.218 lb (98.88 g) |
|
CFM-A225V-231-445FAN AXIAL 120X25MM 24VDC WIRE |
4,759 |
|
Datasheet |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | 25.00mm | Tubeaxial | Auto Restart | 44.5dB(A) | 5.71 W | 3100 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.359 lb (162.84 g) |
|
|
04020VA-24N-AL-00FAN AXIAL 40X20MM 24VDC WIRE |
848 |
|
Datasheet |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.2 CFM (0.286m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.5dB | 1.7 W | 8500 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
