| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EF40101B1-1000U-A99Thermal Products |
206 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 10.00mm | Tubeaxial | Auto Restart | 27.3dB(A) | 990 mW | 7000 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
04020VA-24N-AA-00FAN AXIAL 40X20MM 24VDC WIRE |
358 |
|
Datasheet |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.2 CFM (0.286m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 32.5dB | 1.7 W | 8500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OD4010-12HB01AFAN AXIAL 40X10.5MM 12VDC WIRE |
1,394 |
|
Datasheet |
OD4010 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.4dB | 720 mW | 8000 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
|
OD8025-12HB01AFAN AXIAL 80X25MM 12VDC WIRE |
622 |
|
Datasheet |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB | 1.8 W | 3100 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.191 lb (86.64 g) |
|
|
06015KA-24N-AL-00FAN AXIAL 60X15MM 24VDC TERM |
126 |
|
Datasheet |
06015KA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 18.3 CFM (0.512m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB | 2.4 W | 4600 RPM | - | 3 Terminals | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
AFB0912HHFAN AXIAL 92X25.4MM 12VDC WIRE |
2,249 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 57.9 CFM (1.62m³/min) | 0.221 in H2O (55.0 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 3 W | 3200 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.219 lb (99.34 g) |
|
MD4028V12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
785 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | 28.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
F8025X12B1-FHRFAN AXIAL 80X25MM 12VDC WIRE |
556 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 39.0dB(A) | - | 4200 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.182 lb (82.55 g) |
|
MD4028H24B-RSRFAN AXIAL 40X28MM 24VDC WIRE |
484 |
|
Datasheet |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 13.6 CFM (0.381m³/min) | 0.533 in H2O (132.8 Pa) | Ball | 28.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB(A) | - | 9200 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.111 lb (50.35 g) |
|

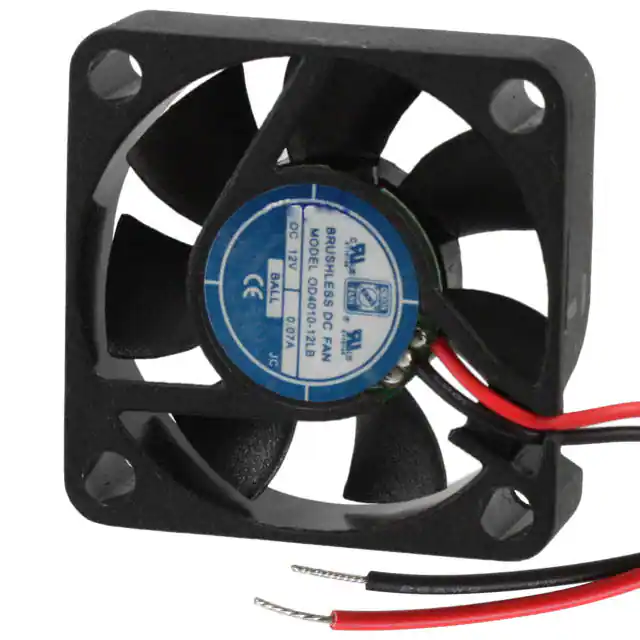

OD4010-12LBFAN AXIAL 40X10.5MM 12VDC WIRE |
126 |
|
Datasheet |
OD4010 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart | 20.1dB | 500 mW | 4000 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
|

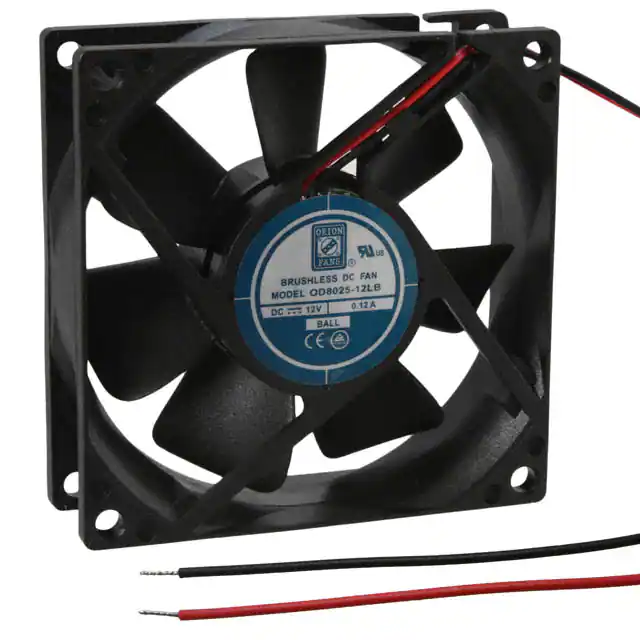

OD8025-12LBFAN AXIAL 80X25MM 12VDC WIRE |
1,983 |
|
Datasheet |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 26.0 CFM (0.728m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 23.0dB | 600 mW | 2100 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.191 lb (86.64 g) |
|

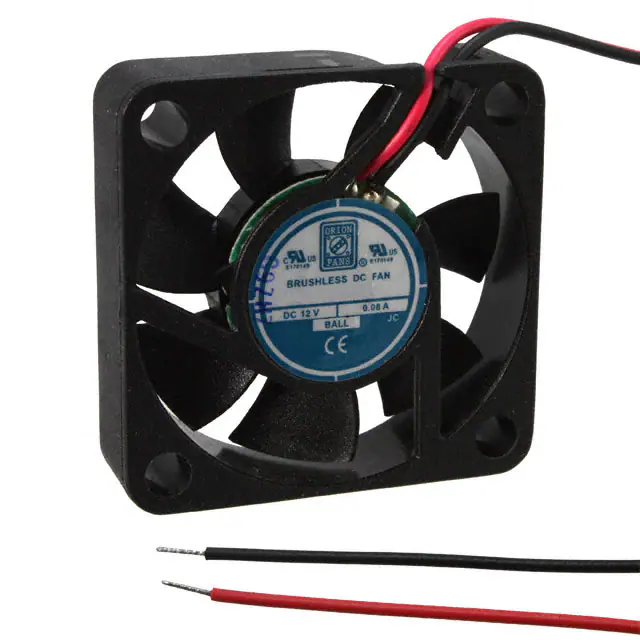

OD4010-12MBFAN AXIAL 40X10.5MM 12VDC WIRE |
1,756 |
|
Datasheet |
OD4010 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart | 26.3dB | 600 mW | 6000 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
|
OD8015-12MBFAN AXIAL 80X15MM 12VDC WIRE |
935 |
|
Datasheet |
OD8015 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 15.00mm | Tubeaxial | - | 26.0dB | - | 2500 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 176°F (-20 ~ 80°C) | - | - |
|

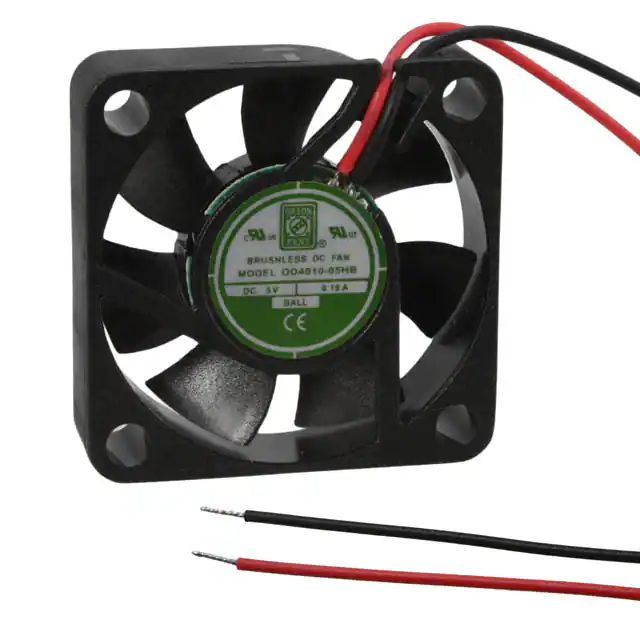

OD4010-05HBFAN AXIAL 40X10.5MM 5VDC WIRE |
537 |
|
Datasheet |
OD4010 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart | 33.4dB | 500 mW | 8000 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
|
OD4020-24MBFAN AXIAL 40X20MM 24VDC WIRE |
403 |
|
Datasheet |
OD4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 30.0dB(A) | 1.7 W | 6475 RPM | CE, cURus, TUV | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|

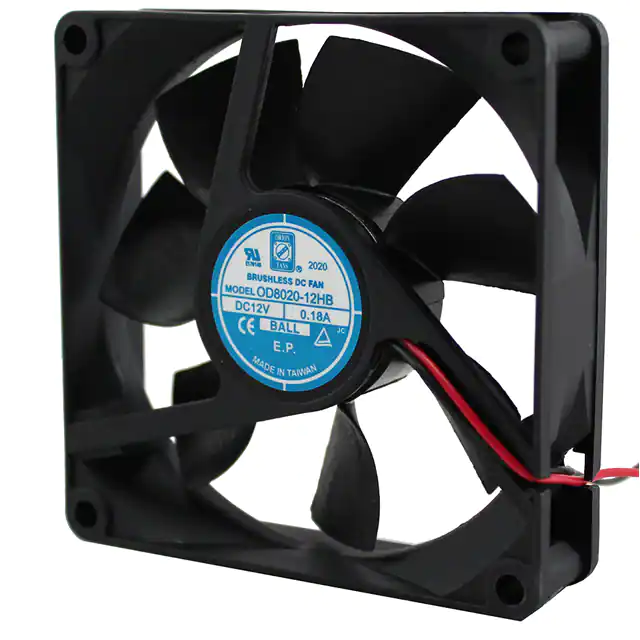

OD8020-12HBFAN AXIAL 80X20MM 12VDC WIRE |
365 |
|
Datasheet |
OD8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 20.00mm | Tubeaxial | - | - | - | - | - | 2 Wire Leads | - | - | - |
|

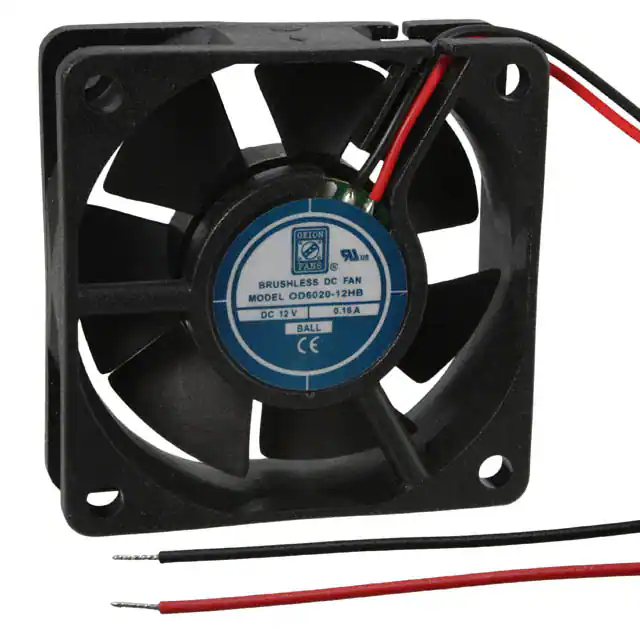

OD6020-12HBFAN AXIAL 60X20MM 12VDC WIRE |
186 |
|
Datasheet |
OD6020 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 20.00mm | Tubeaxial | - | 30.0dB | - | 4500 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
MD4028M24B-RSRFAN AXIAL 40X28MM 24VDC WIRE |
143 |
|
Datasheet |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 11.8 CFM (0.330m³/min) | 0.403 in H2O (100.4 Pa) | Ball | 28.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 37.2dB(A) | - | 8000 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
CFM-3828BF-1150-517-20FAN AXIAL 38X28MM 12VDC WIRE |
360 |
|
Datasheet |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 14.1 CFM (0.395m³/min) | 1.310 in H2O (326.3 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.7dB(A) | 4.08 W | 15000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
109R0612H4011FAN AXIAL 60X25MM 12VDC WIRE |
1,237 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.32 W | 3800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
