| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB3F3-700-TCThermal Products |
3,803 |
|
Datasheet |
MagLev® UB, Mighty Mini | Bulk | Active | 3VDC | Square - 15mm L x 15mm H | 0.160 CFM (0.004m³/min) | 0.136 in H2O (33.9 Pa) | Vapo-Bearing™ | 3.00mm | Blower | Auto Restart | 30.0dB(A) | 100 mW | 14000 RPM | CE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | - |
|
|
CFM-9225BG-150-502-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
3,386 |
|
Datasheet |
CFM-92BG | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.2 CFM (2.47m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.2dB(A) | 6.84 W | 5000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

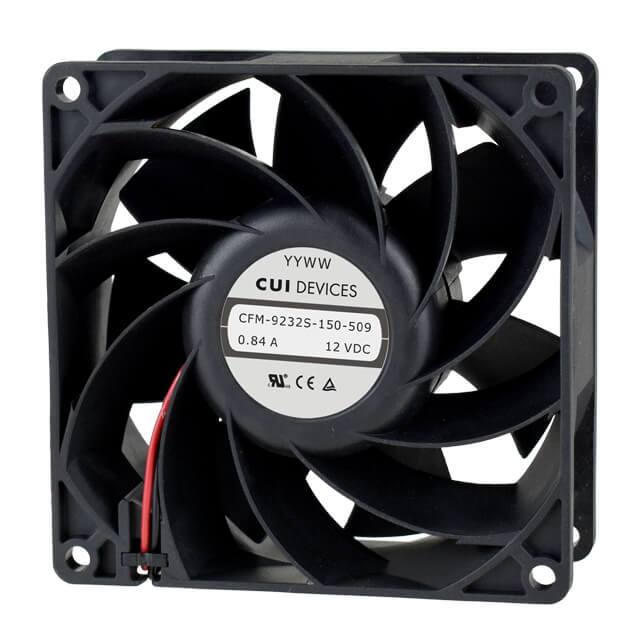

CFM-9232S-150-509-20FAN AXIAL 92.2X32MM 12VDC WIRE |
4,521 |
|
Datasheet |
CFM-92S | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 102.8 CFM (2.91m³/min) | 0.620 in H2O (154.4 Pa) | Sleeve | 32.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.0dB(A) | 10.9 W | 5000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0402812M2B-2T2FAN 40X28MM 12VDC MOLEX 22-01-10 |
3,448 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 4.2 W | 11000 RPM | CE, cURus, TUV | 2 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
PE60251B2-000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
2,676 |
|
Datasheet |
PE | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 31.5 CFM (0.882m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 42.0dB(A) | 2.79 W | 6100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.157 lb (71.21 g) |
|
|
PE60251B3-000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
2,039 |
|
Datasheet |
PE | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 29.0 CFM (0.812m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 38.0dB(A) | 2.37 W | 5600 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.157 lb (71.21 g) |
|
|
PE60252B2-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
1,166 |
|
Datasheet |
PE | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 31.5 CFM (0.882m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 42.0dB(A) | 2.91 W | 6100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.167 lb (75.75 g) |
|
|
PE60252B3-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
2,714 |
|
Datasheet |
PE | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 29.0 CFM (0.812m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 38.0dB(A) | 2.5 W | 5600 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.167 lb (75.75 g) |
|
MR8025E12B6-FSRFAN AXIAL 80X25MM 12VDC WIRE |
1,071 |
|
Datasheet |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 67.0 CFM (1.88m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control | 44.2dB(A) | - | 4800 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.119 lb (53.98 g) |
|
MS2507E05B2-RSRFAN AXIAL 25X7.4MM 5VDC WIRE |
4,216 |
|
Datasheet |
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 2.8 CFM (0.078m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 7.40mm | Tubeaxial | Locked Rotor Sensor | 31.0dB(A) | - | 17000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
MS2507E05D1-RSRFAN AXIAL 25X7.4MM 5VDC WIRE |
4,866 |
|
Datasheet |
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 2.8 CFM (0.078m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 7.40mm | Tubeaxial | Speed Sensor (Tach) | 31.0dB(A) | - | 17000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
MS2507E12D1-RSRFAN AXIAL 25X7.4MM 12VDC WIRE |
2,682 |
|
Datasheet |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.8 CFM (0.078m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 7.40mm | Tubeaxial | Speed Sensor (Tach) | 31.0dB(A) | - | 17000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
MS2507H05B2-RSRFAN AXIAL 25X7.4MM 5VDC WIRE |
1,813 |
|
Datasheet |
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 7.40mm | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | - | 14000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
MS2507H05D1-RSRFAN AXIAL 25X7.4MM 5VDC WIRE |
4,019 |
|
Datasheet |
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | 7.40mm | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | - | 14000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
MS2507H12B2-RSRFAN AXIAL 25X7.4MM 12VDC WIRE |
1,655 |
|
Datasheet |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 7.40mm | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | - | 14000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
MS2507H12D1-RSRFAN AXIAL 25X7.4MM 12VDC WIRE |
3,220 |
|
Datasheet |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | 7.40mm | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | - | 14000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
MS2507L05B2-RSRFAN AXIAL 25X7.4MM 5VDC WIRE |
2,135 |
|
Datasheet |
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.2 CFM (0.034m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 7.40mm | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | - | 7000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
MS2507L05D1-RSRFAN AXIAL 25X7.4MM 5VDC WIRE |
4,014 |
|
Datasheet |
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.2 CFM (0.034m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | 7.40mm | Tubeaxial | Speed Sensor (Tach) | 20.0dB(A) | - | 7000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
MS2507L12B2-RSRFAN AXIAL 25X7.4MM 12VDC WIRE |
4,669 |
|
Datasheet |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.2 CFM (0.034m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 7.40mm | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | - | 7000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
MS2507L12D1-RSRFAN AXIAL 25X7.4MM 12VDC WIRE |
2,300 |
|
Datasheet |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.2 CFM (0.034m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | 7.40mm | Tubeaxial | Speed Sensor (Tach) | 20.0dB(A) | - | 7000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.011 lb (4.99 g) |
