| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0382812U2B-BT0FAN AXIAL 38X28MM 12VDC WIRE |
4,656 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 19.2 CFM (0.538m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 5.76 W | 15000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.067 lb (30.39 g) |
|
DC0401005V2B-3T0FAN 40X10MM 5VDC TACH |
4,540 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2 W | 10000 RPM | CE, cURus | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0922524V2B-3T3FAN 92X25MM 24VDC TACH MOLEX 22- |
3,734 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 81.0 CFM (2.27m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 9.84 W | 4500 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
109P0612W6D01FAN AXIAL 60X20MM 12VDC WIRE |
4,051 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Sensor | 31.0dB(A) | 1.56 W | 4200 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109P0624W6D01FAN AXIAL 60X20MM 24VDC WIRE |
4,052 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Sensor | 31.0dB(A) | 1.68 W | 4200 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
AFB0612VH-AFAN AXIAL 60X25.4MM 12VDC WIRE |
3,109 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 30.5 CFM (0.854m³/min) | 0.345 in H2O (85.9 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 2.76 W | 5500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (80.00 g) |
|

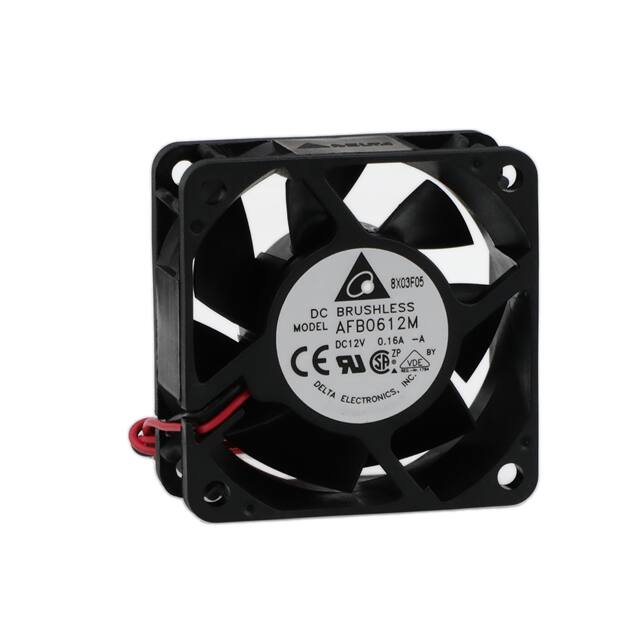

AFB0612M-AFAN AXIAL 60X25.4MM 12VDC WIRE |
2,390 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.155 in H2O (38.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.56 W | 3600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
|
DC0402024M2B-3T0FAN 40X20MM 24VDC TACH |
1,621 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 2.64 W | 10000 RPM | CE, cURus | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
EF80252BX-1000U-Q9924VDC FAN 80X25MM ALARM/PWM |
3,935 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 44.9 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 36.1dB(A) | 1.71 W | 3600 RPM | CCC, CE, cURus, TUV, UKCA | 4 Wire Leads | - | - | - |
|
|
EF80251BX-1000U-Q9912VDC FAN 80X25MM ALARM/PWM |
1,815 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 44.9 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 36.1dB(A) | 1.47 W | 3600 RPM | CCC, CE, cURus, TUV, UKCA | 4 Wire Leads | - | - | - |
|
|
EF92251BX-1000U-Q9912VDC FAN 92X25MM ALARM/PWM |
4,269 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 36.9dB(A) | 1.62 W | 3400 RPM | CCC, CE, cURus, TUV, UKCA | 4 Wire Leads | - | - | - |
|
|
9A0824F401FAN AXIAL 80X25MM 24VDC WIRE |
2,900 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 1.44 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
9A0824L401FAN AXIAL 80X25MM 24VDC WIRE |
4,696 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 960 mW | 1850 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
9A0824L4011FAN AXIAL 80X25MM 24VDC WIRE |
1,780 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 960 mW | 1850 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
9A0824L4D01FAN AXIAL 80X25MM 24VDC WIRE |
1,813 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | 960 mW | 1850 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
9A0824L4D011FAN AXIAL 80X25MM 24VDC WIRE |
2,724 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | 960 mW | 1850 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
9A0824F4D01FAN AXIAL 80X25MM 24VDC WIRE |
3,180 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | 1.44 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
9A0824F4D011FAN AXIAL 80X25MM 24VDC WIRE |
2,730 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | 1.44 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
9A0824H4D011FAN AXIAL 80X25MM 24VDC WIRE |
3,109 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 29.0dB(A) | 1.68 W | 2900 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
9A0824M4D011FAN AXIAL 80X25MM 24VDC WIRE |
2,355 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 1.2 W | 2350 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
