| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

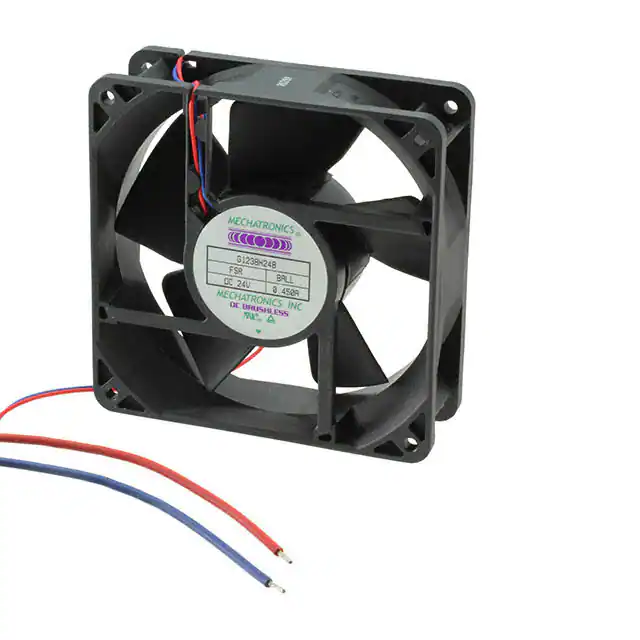

G1238H24B-FSRFAN AXIAL 119X38MM 24VDC WIRE |
181 |
|
Datasheet |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 141.2 CFM (3.95m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 46.0dB(A) | - | 3200 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.74 lb (335.66 g) |
|
FFB0812SHEFAN AXIAL 80X38MM 12VDC WIRE |
1,303 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 68.5 CFM (1.92m³/min) | 0.591 in H2O (147.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 48.5dB(A) | 6.96 W | 4900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
FFB0812EHEFAN AXIAL 80X38MM 12VDC WIRE |
471 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 80.2 CFM (2.25m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 52.5dB(A) | 10.8 W | 5700 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
9GA0812P2H0011FAN AXIAL 80X32MM 12VDC WIRE |
610 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 77.7 CFM (2.18m³/min) | 1.180 in H2O (294.0 Pa) | Ball | 32.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 7.08 W | 8700 RPM | CSA, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.287 lb (130.18 g) |
|
9GA0524P7H001FAN AXIAL 52X15MM 24VDC WIRE |
532 |
|
Datasheet |
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 9.7 CFM (0.272m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 15.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 22.0dB(A) | 720 mW | 4300 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.088 lb (39.92 g) |
|
AFB1224SHFAN AXIAL 120X25.4MM 24VDC WIRE |
232 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 6.72 W | 3400 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
9G1224E401FAN AXIAL 119X25MM 24VDC WIRE |
1,061 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 8.88 W | 3650 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
MR9238E12B-FSRFAN AXIAL 92X38MM 12VDC WIRE |
172 |
|
Datasheet |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 63.3dB(A) | - | 8000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.437 lb (198.00 g) |
|
9GA0612P1K03FAN AXIAL 60X38MM 12VDC WIRE |
3,473 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 53.0 CFM (1.48m³/min) | 2.410 in H2O (600.0 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 11.4 W | 14800 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.287 lb (130.18 g) |
|
109BM12HC2-1FAN BLOWER 97.2X33MM 12VDC WIRE |
181 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 25.1 CFM (0.703m³/min) | 0.819 in H2O (204.0 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 48.5dB(A) | 4.8 W | 3300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.386 lb (175.09 g) |
|
612NGMEFAN AXIAL 60X25.4MM 12VDC WIRE |
1,188 |
|
Datasheet |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.6 CFM (0.577m³/min) | - | Sintec | 25.40mm | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.2 W | 4100 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.146 lb (66.22 g) |
|
11925SA-12R-EUD-1FAN AXIAL 119X25MM 12VDC WIRE |
891 |
|
Datasheet |
11925SA | Box | Active | 12VDC | Square - 119mm L x 119mm H | 128.2 CFM (3.59m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.0dB | 7.44 W | 3500 RPM | CE, cULus, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
OD9225-24HBIP68FAN AXIAL 92X25MM 24VDC WIRE |
136 |
|
Datasheet |
OD9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 33.0dB | 3.5 W | 2900 RPM | cURus, TUV | 2 Wire Leads | 5 ~ 149°F (-15 ~ 65°C) | IP68 - Dust Tight, Waterproof | 0.211 lb (95.71 g) |
|
|
MR9238E24B-FSRFAN AXIAL 92X38MM 24VDC WIRE |
575 |
|
Datasheet |
MR9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 63.3dB(A) | - | 8000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.437 lb (198.00 g) |
|

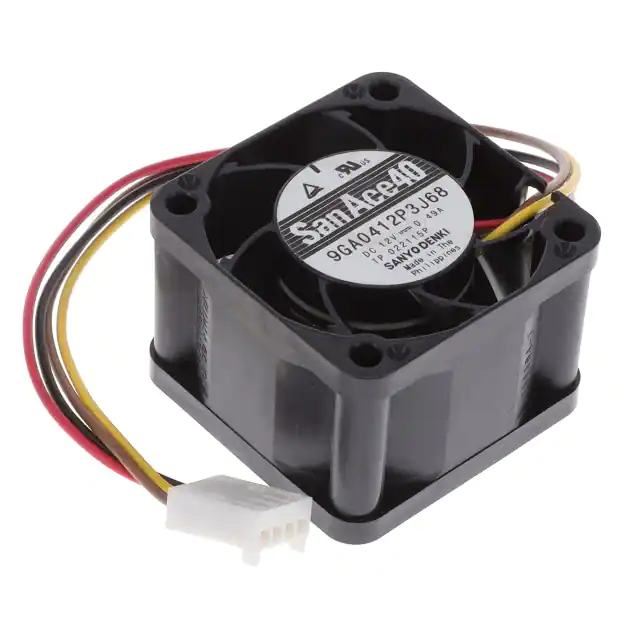

9GA0412P3J68FAN AXL 40X28MM 12VDC RECT CONN |
125 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | - | 18000 RPM | - | 4 Position Rectangular Connector | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
OD6025-48HBXEFAN AXIAL 60X25MM 48VDC WIRE |
270 |
|
Datasheet |
OD6025 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 49.0 CFM (1.37m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 63.1dB(A) | 7.2 W | 7515 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|

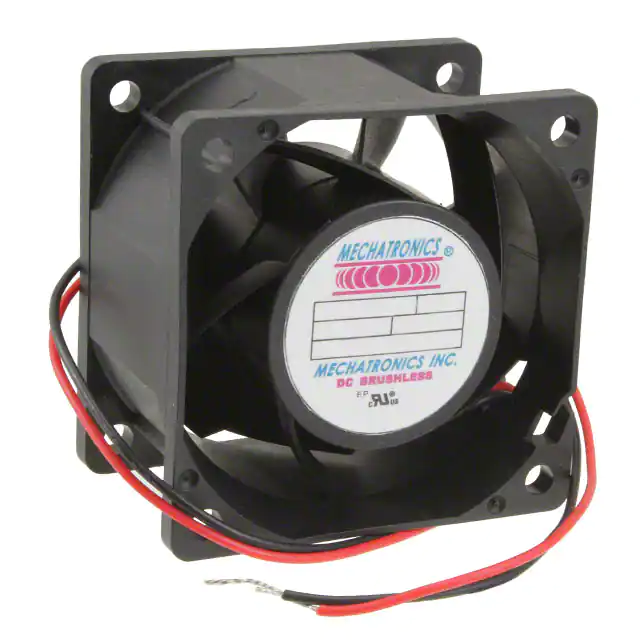

MQ6038E24B-FSRFAN AXIAL 60X38MM 24VDC WIRE |
152 |
|
Datasheet |
MQ6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 69.2 CFM (1.94m³/min) | 2.111 in H2O (525.8 Pa) | Ball | 38.00mm | Tubeaxial | - | 64.0dB(A) | - | 11000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.234 lb (106.14 g) |
|
9S1212L401FAN AXIAL 119X25MM 12VDC WIRE |
714 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 48.1 CFM (1.35m³/min) | 0.060 in H2O (14.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 17.0dB(A) | 960 mW | 1500 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|

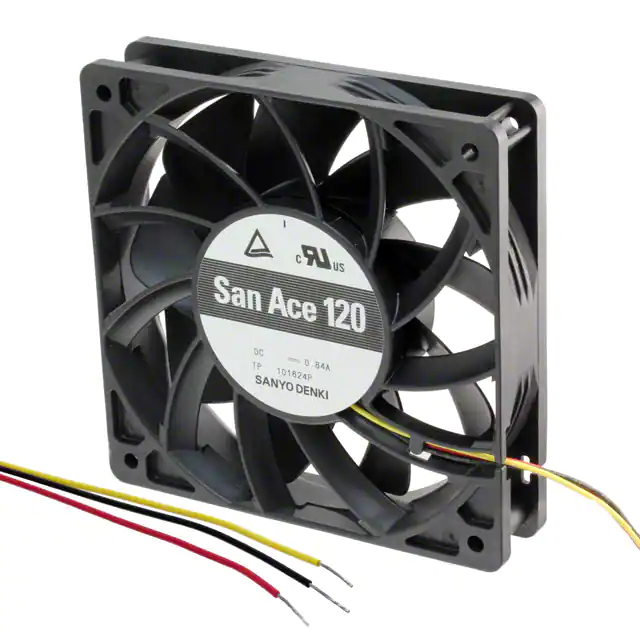

9S1212F401FAN AXIAL 119X25MM 12VDC WIRE |
122 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 70.6 CFM (1.98m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 2.28 W | 2200 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|
9GA0612G9001FAN AXIAL 60X15MM 12VDC WIRE |
294 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 21.9 CFM (0.613m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 15.00mm | Tubeaxial | Speed Sensor (Tach) | 43.0dB(A) | 3.24 W | 6200 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.077 lb (34.93 g) |
