| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR1225E24B1+6-FSRFAN AXIAL 120X25MM 24VDC WIRE |
793 |
|
Datasheet |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 151.0 CFM (4.23m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 56.6dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.275 lb (124.74 g) |
|
9S1224M401FAN AXIAL 120X25MM 24VDC WIRE |
1,624 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.44 W | 1850 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|
9G0812G101FAN AXIAL 80X38MM 12VDC WIRE |
561 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 13.2 W | 6300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
9S1224M4011FAN AXIAL 120X25MM 24VDC WIRE |
242 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.44 W | 1850 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|
9G0624S101FAN AXIAL 60X38MM 24VDC WIRE |
299 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 60.0 CFM (1.68m³/min) | 1.486 in H2O (370.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 16.8 W | 10800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
MR8038X24B1+6-RSRFAN AXIAL 80X38MM 24VDC WIRE |
184 |
|
Datasheet |
MR8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 126.0 CFM (3.53m³/min) | 2.030 in H2O (505.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | - | 10000 RPM | - | 4 Wire Leads | - | - | - |
|
|
9G0624G101FAN AXIAL 60X38MM 24VDC WIRE |
175 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 20.4 W | 11800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
EEC0382B1-000U-F99FAN AXIAL 120X38MM 24VDC WIRE |
282 |
|
Datasheet |
EEC | Box | Active | 24VDC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 48.0dB(A) | 9.2 W | 3100 RPM | CE, CUR, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.472 lb (214.1 g) |
|
BSB0205HP-00EFGFAN AXIAL 17X5.28MM 5VDC WIRE |
1,467 |
|
Datasheet |
BSB - Miniature | Box | Not For New Designs | 5VDC | Square - 17mm L x 17mm H | 0.570 CFM (0.016m³/min) | 0.400 in H2O (99.6 Pa) | Sleeve | 5.28mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.9dB(A) | 400 mW | 12000 RPM | cURus, TUV | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.004 lb (1.81 g) |
|
9WF0424H7D01FAN AXIAL 40X15MM 24VDC WIRE |
322 |
|
Datasheet |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 6.9 CFM (0.193m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 2.04 W | 11300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | Oil Resistant | 0.077 lb (34.93 g) |
|
|
9WF0424H701FAN AXIAL 40X15MM 24VDC WIRE |
225 |
|
Datasheet |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 6.9 CFM (0.193m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 15.00mm | Tubeaxial | Speed Sensor (Tach) | 38.0dB(A) | 2.04 W | 11300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | Oil Resistant | 0.077 lb (34.93 g) |
|
AFB1212HHFAN AXIAL 120X25.4MM 12VDC WIRE |
166 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 41.5dB(A) | 3.96 W | 2800 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
OD9238-24LBFAN AXIAL 92X38MM 24VDC WIRE |
120 |
|
Datasheet |
OD9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 78.0 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 50.2dB(A) | 4.8 W | 3500 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
OD8025-12HBIP69KFAN AXIAL 80X25MM 12VDC WIRE |
514 |
|
Datasheet |
OD8025-IP69K | Box | Active | 12VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 33.0dB(A) | 2.2 W | 3300 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
OD8025-24HBIP69KFAN AXIAL 80X25MM 24VDC WIRE |
254 |
|
Datasheet |
OD8025-IP69K | Box | Active | 24VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 33.0dB(A) | 2.9 W | 3300 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
EEC0384B1-000U-A99FAN AXIAL 120X38MM 48VDC WIRE |
1,063 |
|
Datasheet |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 48.0dB(A) | 9.7 W | 3100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.472 lb (214.1 g) |
|

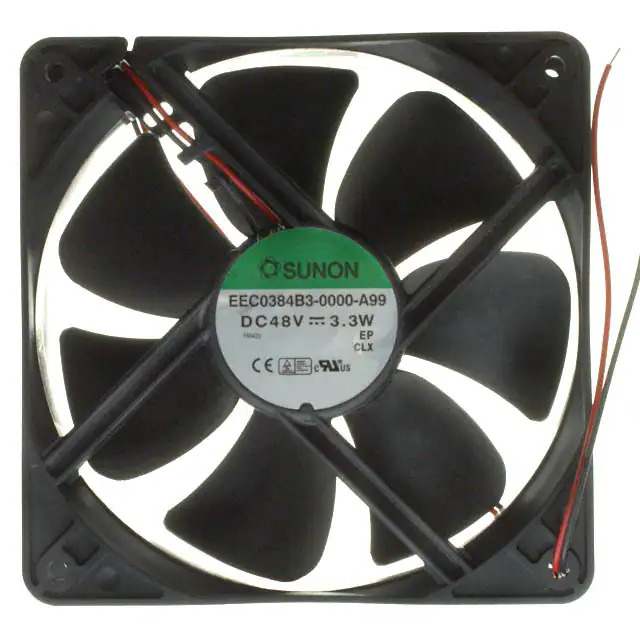

EEC0384B3-000U-A99FAN AXIAL 120X38MM 48VDC WIRE |
938 |
|
Datasheet |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 37.0dB(A) | 3.3 W | 2100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.472 lb (214.1 g) |
|

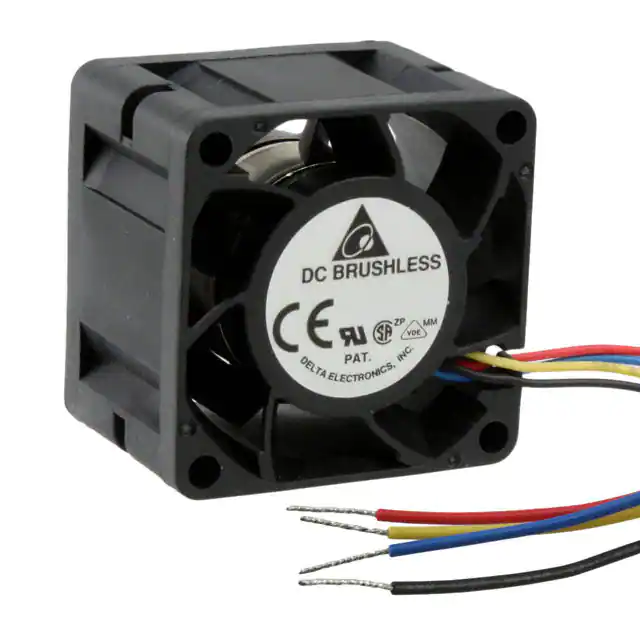

FFB03812VN-SPCFAN AXIAL 38X28MM 12VDC WIRE |
249 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 38mm L x 38mm H | 23.0 CFM (0.644m³/min) | 3.400 in H2O (846.9 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.5dB(A) | 10.2 W | 23000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.106 lb (48.08 g) |
|
|
CFM-6025BG68-1120-587DC AXIAL FAN, 60 MM SQUARE, 25 M |
130 |
|
Datasheet |
CFM-60BG68 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 52.4 CFM (1.47m³/min) | 1.700 in H2O (423.5 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 58.7dB(A) | 17.76 W | 12000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|

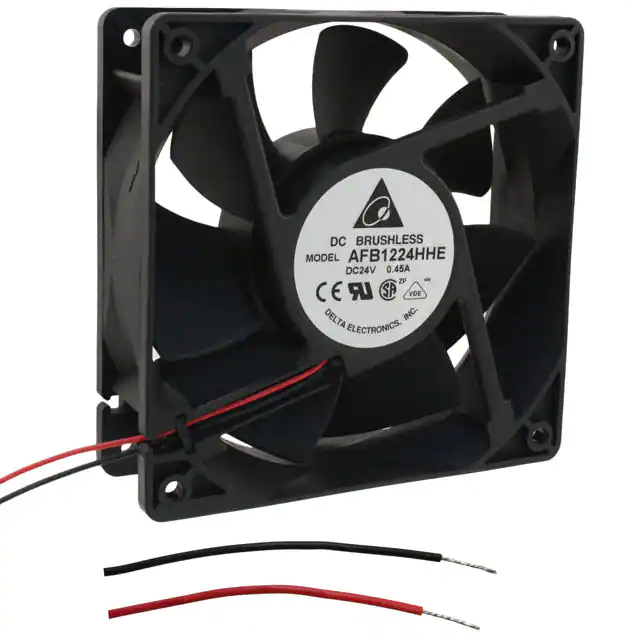

AFB1224HHEFAN AXIAL 120X38MM 24VDC WIRE |
13,829 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 7.2 W | 2900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.565 lb (256.28 g) |
