| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1238X12BT-FHRFAN AXIAL 119X38MM 12VDC TERM |
4,787 |
|
Datasheet |
F1238-H | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 130.0 CFM (3.64m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 47.0dB(A) | - | 3600 RPM | CE, cUL, TUV, UL | 2 Terminals | - | - | 0.59 lb (267.62 g) |
|
F1238X12BT-FSRFAN AXIAL 119X38MM 12VDC TERM |
2,931 |
|
Datasheet |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 45.0dB(A) | - | 3100 RPM | CE, cUL, TUV, UL | 2 Terminals | - | - | 0.536 lb (243.13 g) |
|
|
F1238X24B-FHRFAN AXIAL 119X38MM 24VDC WIRE |
3,295 |
|
Datasheet |
F1238-H | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 130.0 CFM (3.64m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 47.0dB(A) | - | 3600 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.59 lb (267.62 g) |
|
|
F1238X24B-FSRFAN AXIAL 119X38MM 24VDC WIRE |
2,681 |
|
Datasheet |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 45.0dB(A) | - | 3100 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.536 lb (243.13 g) |
|

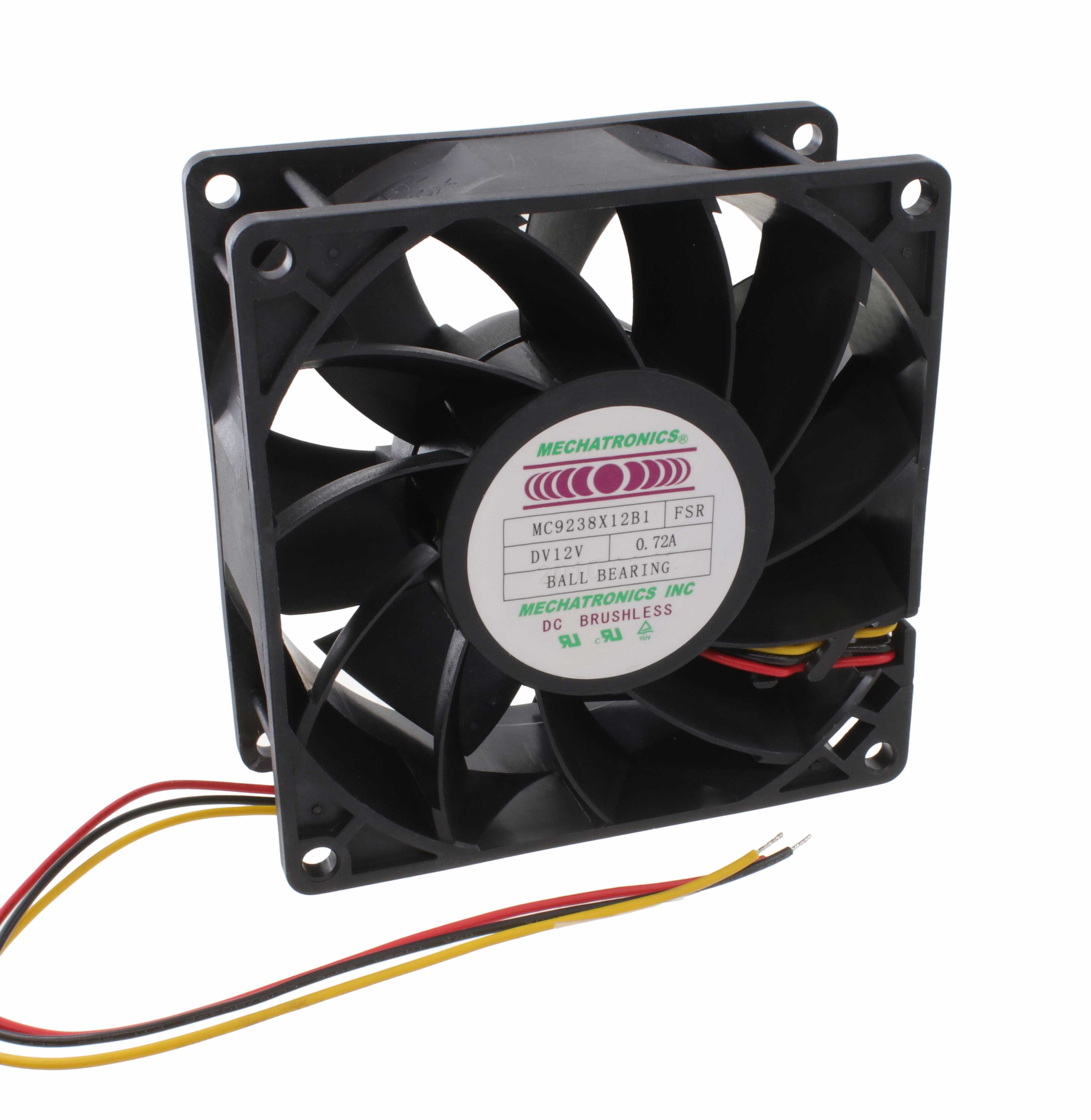

MC9238X12B1-FSRFAN AXIAL 92X38MM 12VDC WIRE |
2,523 |
|
Datasheet |
MC9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 80.2 CFM (2.25m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 47.5dB(A) | - | 4000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.4 lb (181.44 g) |
|
|
F1238E12BT-FHRFAN AXIAL 119X38MM 12VDC TERM |
3,573 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC9238L12B1-FSRFAN AXIAL 92X38MM 12VDC WIRE |
1,293 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
QFR0812UHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
2,749 |
|
Datasheet |
QFR | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 105.2 CFM (2.95m³/min) | 1.335 in H2O (332.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 13.8 W | 9000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.353 lb (160.12 g) |
|
|
EEC0252B2-000U-G9924VDC FAN 120X25MM ALARM |
4,867 |
|
Datasheet |
EE | Box | Active | 24VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (55.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.5dB(A) | 3.5 W | 2700 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
EEC0252B3-000U-G9924VDC FAN 120X25MM ALARM |
3,086 |
|
Datasheet |
EE | Box | Active | 24VDC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 2 W | 2200 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
8414GLFAN AXIAL 80X25MM 24VDC WIRE |
3,831 |
|
Datasheet |
8400 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | - | Sintec | 25.00mm | Tubeaxial | - | 20.0dB(A) | 800 mW | - | - | 2 Wire Leads | - | - | 0.31 lb (140.61 g) |
|
|
8414GMFAN AXIAL 80X25MM 24VDC WIRE |
4,897 |
|
Datasheet |
8400 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 27.0 CFM (0.756m³/min) | - | Sintec | 25.00mm | Tubeaxial | - | 29.0dB(A) | 1.2 W | - | - | 2 Wire Leads | - | - | 0.31 lb (140.61 g) |
|
|
MS8025H24B1+6-FHR-2EMFAN AXIAL 80X25.2MM 24VDC WIRE |
3,991 |
|
Datasheet |
MS8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 70.5 CFM (1.97m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 25.20mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | - | 5000 RPM | - | 4 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.172 lb (78.02 g) |
|
|
MH4028H12B1+6-RSR-PCFAN AXIAL 40X28MM 12VDC WIRE |
4,267 |
|
Datasheet |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 21.1 CFM (0.591m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, Paraylene Coating, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 52.0dB(A) | - | 13000 RPM | - | 4 Wire Leads | - | - | 0.089 lb (40.37 g) |
|
|
MH4028E12B1+6-RSR-PCFAN AXIAL 40X28MM 12VDC WIRE |
4,360 |
|
Datasheet |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.5 CFM (0.685m³/min) | 1.180 in H2O (294.0 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, Paraylene Coating, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 55.0dB(A) | - | 15000 RPM | - | 4 Wire Leads | - | - | 0.089 lb (40.37 g) |
|
|
PF92252B1-1000U-Q9924VDC FAN 92X25MM ALARM/PWM |
4,002 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 46.1dB(A) | 4.92 W | 4500 RPM | CCC, CE, cURus, TUV, UKCA | 4 Wire Leads | - | - | - |
|

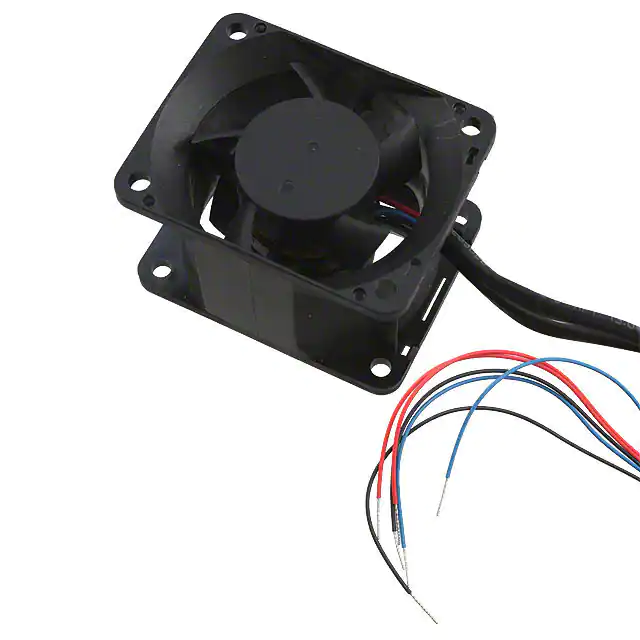

GFB0412VHF-F00FAN AXIAL DUAL 40X32MM 12VDC |
1,929 |
|
Datasheet |
GFB | Bulk | Obsolete | 12VDC | Rectangular - 40mm L x 50mm H | 19.7 CFM (0.552m³/min) | 0.554 in H2O (138.0 Pa) | Ball | 32.00mm | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 51.5dB(A) | 4.32 W | 9500 Front, 9100 Rear | CE, CSA, UL, VDE | 3 Wire Leads per Fan | 14 ~ 140°F (-10 ~ 60°C) | - | 0.101 lb (45.81 g) |
|
|
9G0624H102FAN AXIAL 60X38MM 24VDC WIRE |
4,639 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 54.4 CFM (1.52m³/min) | 1.223 in H2O (304.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 13.68 W | 9800 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
|
9G0624H1021FAN AXIAL 60X38MM 24VDC WIRE |
4,408 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 54.4 CFM (1.52m³/min) | 1.223 in H2O (304.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 13.68 W | 9800 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
|
9G0624S102FAN AXIAL 60X38MM 24VDC WIRE |
3,122 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 60.0 CFM (1.68m³/min) | 1.486 in H2O (370.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 16.8 W | 10800 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
