| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV1212P1G01FAN AXIAL 120X38MM 12VDC WIRE |
119 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 192.6 CFM (5.39m³/min) | 1.063 in H2O (264.8 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 25.2 W | 5500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.794 lb (360.15 g) |
|

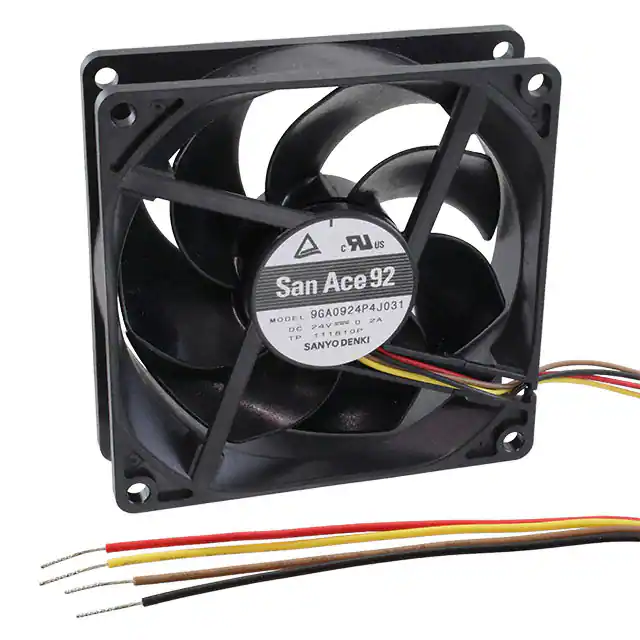

9GA0924P4J031FAN AXIAL 92X25MM 24VDC WIRE |
262 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 4.8 W | 5000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.276 lb (125.19 g) |
|
09238RA-24P-GA-00FAN AXIAL 92X38.4MM 24VDC WIRE |
753 |
|
Datasheet |
09238RA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 141.3 CFM (3.96m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 38.40mm | Tubeaxial | Auto Restart | 61.0dB | 22.08 W | 6700 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - |
|
OD1238-12HHBFAN AXIAL 120X38MM 12VDC WIRE |
374 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 135.8 CFM (3.80m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 38.00mm | Tubeaxial | - | 48.2dB(A) | 15.6 W | 3195 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
9G1224G102FAN AXIAL 119X38MM 24VDC WIRE |
491 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 38.00mm | Tubeaxial | - | 49.0dB(A) | 12 W | 3600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|

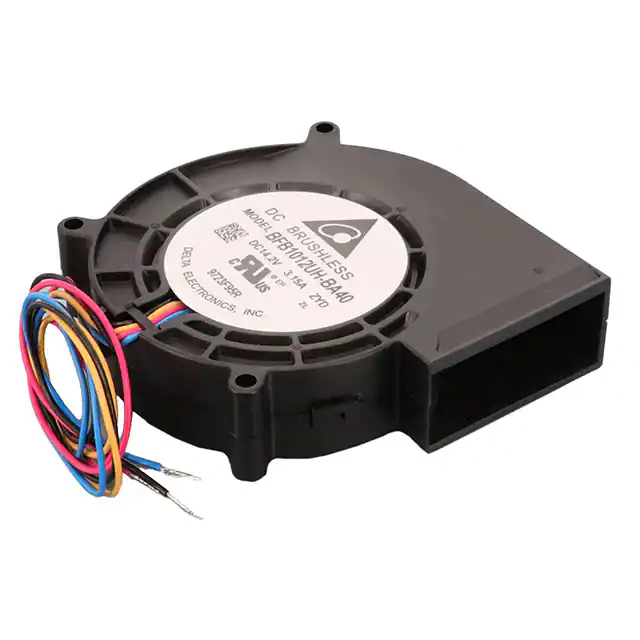

BFB1012UH-BA40ZYDFAN BLOWER 96.6X24.9MM 14.2VDC |
112 |
|
Datasheet |
BFB - High-Performance | Box | Active | 14.2VDC | Rectangular/Rounded - 96.6mm L x 94.3mm H | 37.0 CFM (1.04m³/min) | 4.764 in H2O (1186.7 Pa) | Ball | 24.90mm | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 30.53 W | 7000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 122°F (-10 ~ 50°C) | - | 0.386 lb (175.09 g) |
|
9G1224G101FAN AXIAL 119X38MM 24VDC WIRE |
124 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 12 W | 3600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
.jpg)
|
9GV0648P1H031FAN AXIAL 60X38MM 48VDC WIRE |
2,117 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 76.0 CFM (2.13m³/min) | 2.480 in H2O (617.7 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 24 W | 14500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.287 lb (130.18 g) |
|
9L0412J301FAN AXIAL 40X28MM 12VDC WIRE |
130 |
|
Datasheet |
San Ace 40L | Box | Active | 12VDC | Square - 40mm L x 40mm H | 18.4 CFM (0.515m³/min) | 0.827 in H2O (206.0 Pa) | Ball | 28.00mm | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 3.72 W | 11700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.122 lb (55.34 g) |
|

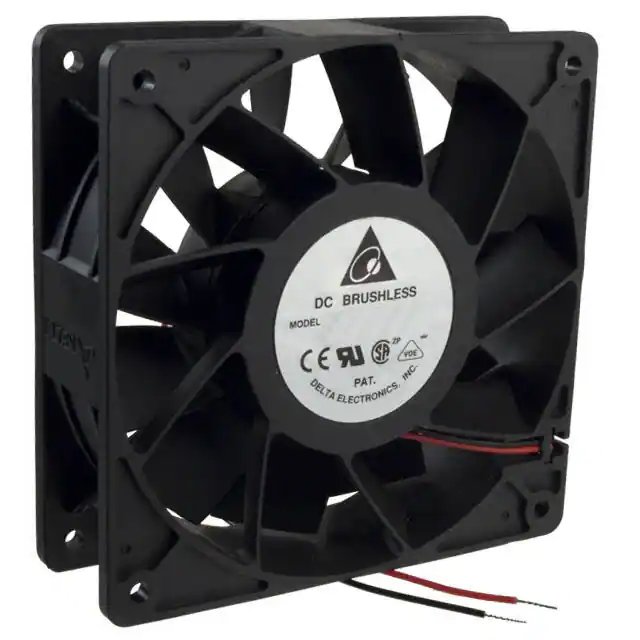

PFB1224EHEWCAFAN AXIAL 120X38MM 24VDC WIRE |
230 |
|
Datasheet |
PFB | Box | Not For New Designs | 24VDC | Square - 120mm L x 120mm H | 181.3 CFM (5.08m³/min) | 0.751 in H2O (187.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 21.6 W | 4000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.838 lb (380.11 g) |
|
06025DE-12R-CU-0660X60X25MM, 12VDC, 11,000 RPM, 4 |
504 |
|
Datasheet |
06025DE | Box | Active | 12VDC | Square - 60mm L x 60mm H | 45.6 CFM (1.28m³/min) | 1.160 in H2O (288.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 52.0dB | 8.04 W | 11000 RPM | CE, cURus, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
04028DE24P-ZUK-140X40X28MM, 24VDC, 18,000 RPM, 2 |
264 |
|
Datasheet |
04028DE | Box | Active | 24VDC | Square - 40mm L x 40mm H | 24.0 CFM (0.672m³/min) | 1.840 in H2O (458.3 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 55.0dB | 7.2 W | 18000 RPM | cURus, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP68 - Dust Tight, Waterproof | - |
|
9BMB24G201FAN BLOWER 97.1X33MM 24VDC WIRE |
777 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 47.3 CFM (1.32m³/min) | 3.052 in H2O (760.0 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 61.0dB(A) | 19.9 W | 5750 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.419 lb (190.06 g) |
|
|
PF80381B1-1000U-A9HFAN 60X38MM 12VDC |
156 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 113.9 CFM (3.19m³/min) | 2.680 in H2O (670.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 63.4dB(A) | 21.6 W | 11200 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
PF80381BX-1000U-A9HFAN AXL 80X38MM BALL 12VDC WIRE |
148 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 141.9 CFM (3.97m³/min) | 3.500 in H2O (871.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 69.1dB(A) | 48 W | 14000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9CRH0412P5J101FAN AXIAL DUAL 40X56MM 12VDC |
4,560 |
|
Datasheet |
San Ace 40 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 32.9 CFM (0.921m³/min) | 6.830 in H2O (1701.2 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 30.24 W | 29500 Front, 25500 Rear | cURus, TUV | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
422J/2HPFAN AXIAL 40X28MM 12VDC WIRE |
2,117 |
|
Datasheet |
420J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 22.4 CFM (0.627m³/min) | - | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 6.8 W | 17200 RPM | CE | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.099 lb (44.91 g) |
|
255HFAN AXIAL 25X8MM 5VDC WIRE |
619 |
|
Datasheet |
250 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 2.6 CFM (0.073m³/min) | - | Sintec | 8.00mm | Tubeaxial | - | 23.0dB(A) | 600 mW | 12000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 131°F (-10 ~ 55°C) | - | 0.011 lb (4.99 g) |
|
9GV0812P1G03FAN AXIAL 80X38MM 12VDC WIRE |
732 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 45.6 W | 10200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.485 lb (220.00 g) |
|
8414NMFAN AXIAL 80X25.4MM 24VDC WIRE |
194 |
|
Datasheet |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 34.1 CFM (0.955m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 27.0dB(A) | 1.4 W | 2600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.209 lb (94.8 g) |
