| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WF0624H4D01FAN AXIAL 60X25MM 24VDC WIRE |
151 |
|
Datasheet |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 23.6 CFM (0.661m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 41.0dB(A) | 3.6 W | 6500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | Oil Resistant | 0.243 lb (110.22 g) |
|
OD8038-12HBXE10AFAN AXIAL 80X38MM 12VDC WIRE |
1,048 |
|
Datasheet |
OD8038 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 141.2 CFM (3.95m³/min) | 3.900 in H2O (971.5 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 49 W | 13500 RPM | cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.483 lb (219.09 g) |
|
9GL1224H101FAN AXIAL 119X38MM 24VDC WIRE |
172 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
AFB1212VH-T500FAN AXIAL 120X25.4MM 12VDC WIRE |
558 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 103.7 CFM (2.90m³/min) | 0.371 in H2O (92.5 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 4.8 W | 3100 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP55 - Dust Protected, Water Resistant | 0.437 lb (198.00 g) |
|
AFB1212VHE-T50FFAN AXIAL 120X38MM 12VDC WIRE |
150 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 3200 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP55 - Dust Protected, Water Resistant | 0.565 lb (256.28 g) |
BF.jpg)
|
CFM-A225BF-158-597-22FAN AXIAL 120X25.4MM 12VDC WIRE |
135 |
|
Datasheet |
CFM-120BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 185.5 CFM (5.19m³/min) | 0.980 in H2O (244.0 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 59.7dB(A) | 28.8 W | 5800 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9HV0412P3K001FAN AXIAL 40X28MM 12VDC WIRE |
3,036 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 29.3 CFM (0.820m³/min) | 4.420 in H2O (1100.0 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 18.3 W | 25000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.133 lb (60.33 g) |
_Series.jpg)
|
3414NGHHFAN AXIAL 92X25.4MM 24VDC WIRE |
382 |
|
Datasheet |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 60.0 CFM (1.68m³/min) | - | Sintec | 25.40mm | Tubeaxial | - | 39.0dB(A) | 3.2 W | 3250 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.22 lb (99.79 g) |
|

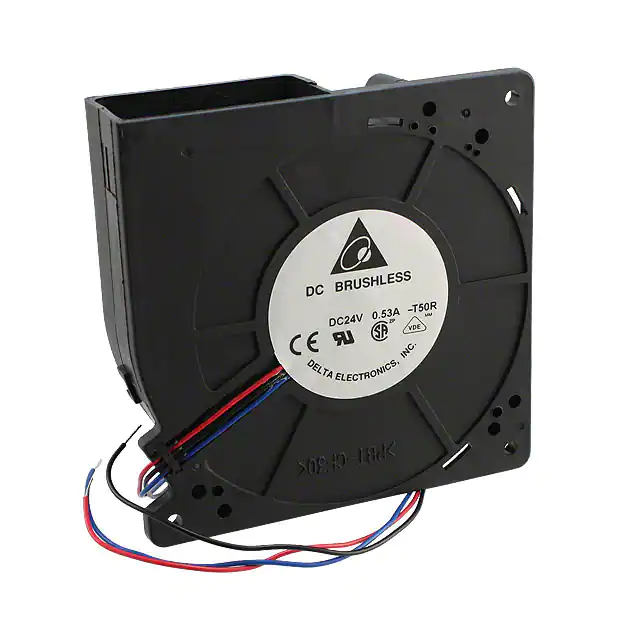

BFB1224H-T50RFAN BLOWER 120X32MM 24VDC WIRE |
428 |
|
Datasheet |
BFB | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 29.0 CFM (0.812m³/min) | 0.827 in H2O (206.0 Pa) | Ball | 32.00mm | Blower | Locked Rotor Sensor | 51.0dB(A) | 8.4 W | 2500 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP55 - Dust Protected, Water Resistant | 0.508 lb (230.42 g) |
|

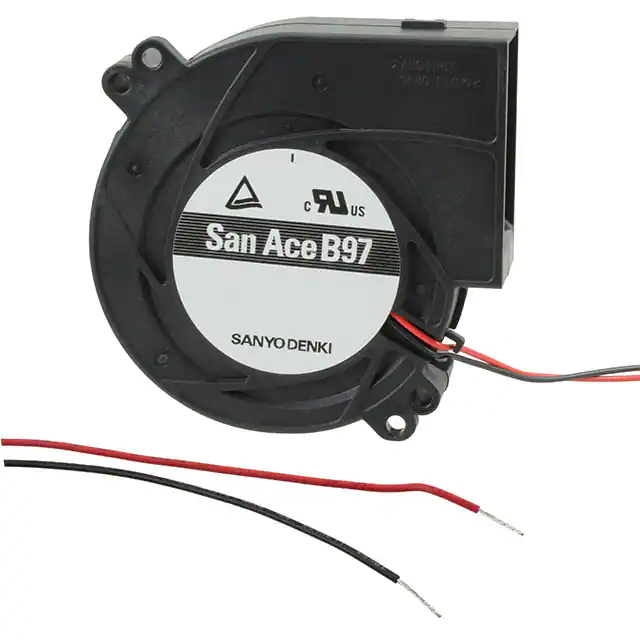

9BMB12H202FAN BLOWER 97.1X33MM 12VDC WIRE |
349 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection | 57.0dB(A) | 13.2 W | 4850 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.419 lb (190.06 g) |
|
MR1238E48B1+6-FSRFAN AXIAL 120X38MM 48VDC WIRE |
419 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 67.9dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.838 lb (380.11 g) |
|
614NGNFAN AXIAL 60X25.4MM 24VDC WIRE |
133 |
|
Datasheet |
600NG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | - | Sintec | 25.40mm | Tubeaxial | - | 35.0dB(A) | 2.1 W | - | CE, CSA, UL, VDE | 2 Wire Leads | - | - | 0.19 lb (86.18 g) |
|
|
3412NMEFAN AXIAL 92X25.4MM 12VDC WIRE |
139 |
|
Datasheet |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 28.0dB(A) | 1.1 W | 2300 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.22 lb (99.79 g) |
|
MS1238H48B-FHR-2EMFAN AXIAL 120X38MM 48VDC WIRE |
129 |
|
Datasheet |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 203.3 CFM (5.69m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 56.0dB(A) | - | 4000 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.667 lb (302.55 g) |
|
8312HFAN AXIAL 80X32MM 12VDC WIRE |
118 |
|
Datasheet |
8300 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 47.1 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 48.0dB(A) | 5.5 W | 5000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.375 lb (170.1 g) |
|

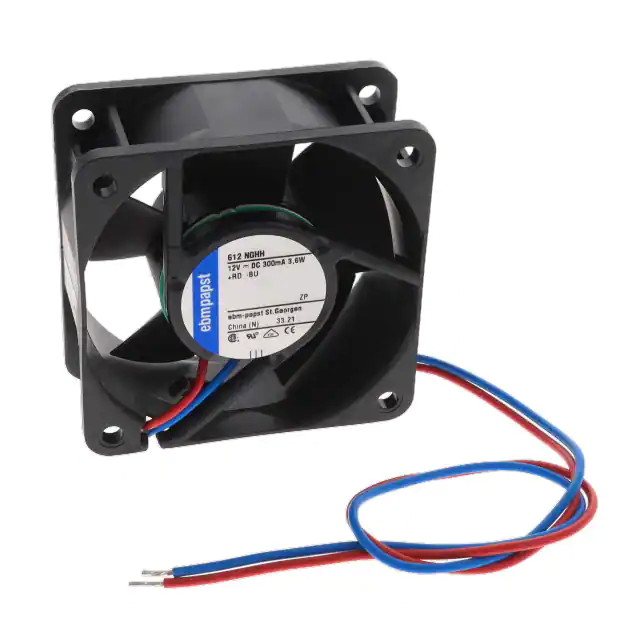

612NGHHFAN AXIAL 60X25.4MM 12VDC WIRE |
1,159 |
|
Datasheet |
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Sintec | 25.40mm | Tubeaxial | - | 43.0dB(A) | 3.8 W | 6850 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.19 lb (86.18 g) |
|

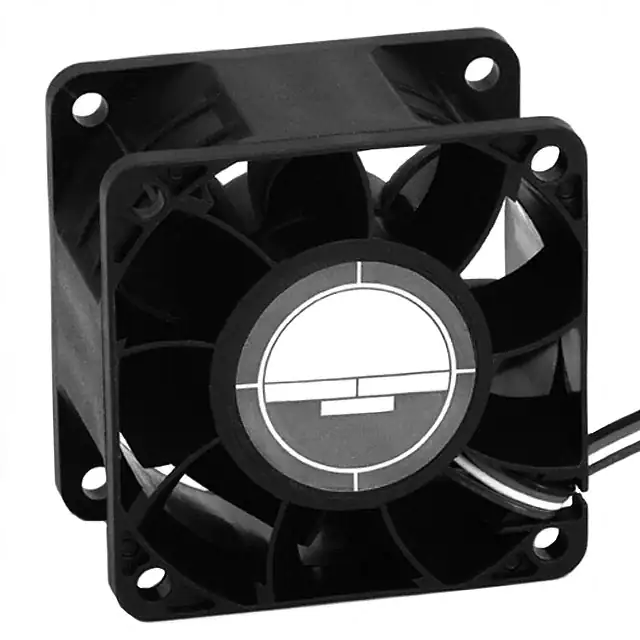

OD6038-12HHBXC10AFAN AXIAL 60X38MM 12VDC WIRE |
181 |
|
Datasheet |
OD6038 XC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 86.0 CFM (2.41m³/min) | 2.950 in H2O (734.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.0dB | 36 W | 16000 RPM | cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.276 lb (125.19 g) |
|
PF60381BX-000U-S99FAN AXIAL 60X38MM 12VDC WIRE |
219 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 75.2 CFM (2.11m³/min) | 3.280 in H2O (817.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 67.6dB(A) | 30 W | 16500 RPM | CE, CUR, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.28 lb (127.01 g) |
|
9CRB0412P5S201FAN AXIAL DUAL 40X56MM 12VDC |
1,125 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 31.8 CFM (0.890m³/min) | 4.197 in H2O (1045.4 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 16.8 W | 22000 Front, 19700 Rear | cURus, TUV | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.222 lb (100.7 g) |
|
|
04028DA-12T-A6N-E40X40X28MM, 12VDC, 34,500 RPM, 3 |
106 |
|
Datasheet |
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 34.6 CFM (0.969m³/min) | 7.600 in H2O (1893.0 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 69.5dB(A) | 30 W | 34500 RPM | CE, cULus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
