| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9CRA0612P0G001FAN AXIAL DUAL 60X76MM 12VDC |
301 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 70.6 CFM (1.98m³/min) | 4.000 in H2O (996.3 Pa) | Ball | 76.00mm | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 27.6 W | 16500 Front, 13000 Rear | cURus, TUV | 3 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.604 lb (273.97 g) |
|
MA1751X24B-FSRFAN AXIAL 172X50.8MM 24VDC WIRE |
163 |
|
Datasheet |
MA1751 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 290.6 CFM (8.14m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 50.80mm | Tubeaxial | Thermal Overload Protector (TOP) | 63.0dB(A) | - | 3400 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 1.7 lbs (771.1 g) |
|
4184NGXFAN AXIAL 119X38MM 24VDC TERM |
179 |
|
Datasheet |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 94.0 CFM (2.63m³/min) | - | Sintec | 38.00mm | Tubeaxial | - | 44.0dB(A) | 3.5 W | 2800 RPM | CE, CSA, UL, VDE | 2 Terminals | 14 ~ 167°F (-10 ~ 75°C) | - | 0.86 lb (390.09 g) |
|
8212JNFAN AXIAL 80X38MM 12VDC WIRE |
432 |
|
Datasheet |
8200J | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 78.0 CFM (2.18m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 55.0dB(A) | 10 W | 8400 RPM | CE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.353 lb (160.12 g) |
|

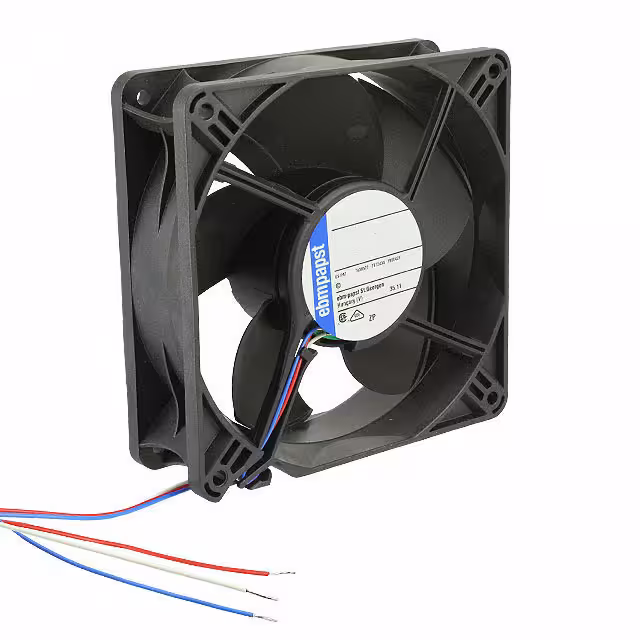

4418/2HHPFAN AXIAL 119X38MM 48VDC WIRE |
155 |
|
Datasheet |
4400 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 167.7 CFM (4.70m³/min) | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 13 W | 5000 RPM | - | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
MA1751X48B2-FSRFAN AXIAL 172X50.8MM 48VDC WIRE |
2,794 |
|
Datasheet |
MA1751 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 290.6 CFM (8.14m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 50.80mm | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 63.0dB(A) | - | 3400 RPM | cUL, TUV, UL | 3 Wire Leads | - | - | 1.7 lbs (771.1 g) |
|
9WPA0812P4G0011FAN AXIAL 80X25.2MM 12VDC WIRE |
110 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 81.8 CFM (2.29m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 25.20mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 8.52 W | 8250 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
9WPA0824P4G001FAN AXIAL 80X25.2MM 24VDC WIRE |
106 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 81.8 CFM (2.29m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 25.20mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 8.52 W | 8250 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
3314NHHUFAN AXIAL 92X32MM 24VDC WIRE |
179 |
|
Datasheet |
3300NU | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 63.0 CFM (1.76m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 42.0dB(A) | - | 3450 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP68 - Dust Tight, Waterproof | 0.419 lb (190.06 g) |
|
|
MA1751X48B1-FSRFAN AXIAL 172X50.8MM 48VDC WIRE |
4,051 |
|
Datasheet |
MA1751 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 290.6 CFM (8.14m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 50.80mm | Tubeaxial | Conformal Coating, Speed Sensor (Tach) | 63.0dB(A) | - | 3400 RPM | cUL, TUV, UL | 3 Wire Leads | - | - | 1.7 lbs (771.1 g) |
|
9LG0912H4001FAN AXIAL 92X25MM 12VDC WIRE |
2,249 |
|
Datasheet |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.8 W | 3150 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
12038VE-48R-GU-01120X120X38MM, 48VDC, 6,400 RPM, |
3,993 |
|
Datasheet |
12038VE | Box | Active | 48VDC | Square - 120mm L x 120mm H | 244.0 CFM (6.90m³/min) | 1.490 in H2O (371.1 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 64.0dB | 36 W | 6400 RPM | CE, cURus, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP68 - Dust Tight, Waterproof | - |
|
8414N/2HPFAN AXIAL 80X25.4MM 24VDC WIRE |
2,071 |
|
Datasheet |
8400N | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.5 CFM (1.30m³/min) | - | Ball | 25.40mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.6 W | 3600 RPM | - | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.211 lb (95.71 g) |
|

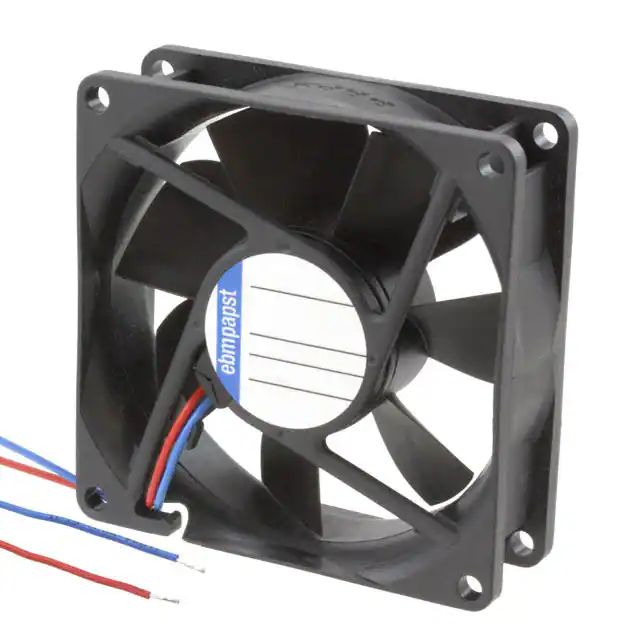

8414NHUFAN AXIAL 80X25.4MM 24VDC WIRE |
7,293 |
|
Datasheet |
8400NU | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.5 CFM (1.30m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 37.0dB(A) | 2.4 W | 3600 RPM | UL | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP68 - Dust Tight, Waterproof | 0.21 lb (95.25 g) |
|
9HV0812P1G001FAN AXIAL 80X38MM 12VDC WIRE |
250 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.508 lb (230.42 g) |
|
19039646AFAN AXIAL 119X39MM MDD48K6S3 |
125 |
|
Datasheet |
Muffin XL | Box | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 128.0 CFM (3.58m³/min) | - | Ball | 39.12mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 53.2dB(A) | 7.7 W | 3600 RPM | CE, UL | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

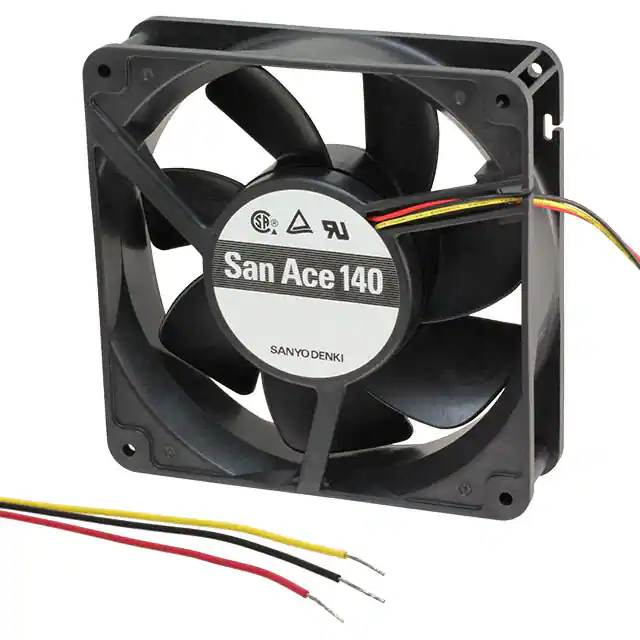

109P1412H101FAN AXIAL 140X38MM 12VDC WIRE |
3,626 |
|
Datasheet |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 159.0 CFM (4.45m³/min) | 0.378 in H2O (94.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.76 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.993 lb (450.42 g) |
|
|
PFB1224EHEP6AXIAL 120X120X38MM 24V PWM IP68 |
191 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 181.3 CFM (5.08m³/min) | 0.751 in H2O (187.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 21.6 W | 4000 RPM | CE, cURus, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
19031085AFAN AXIAL 172X50.8MM 48V PQ48B4 |
425 |
|
Datasheet |
Patriot | Bulk | Active | 48VDC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 51.2dB(A) | 22 W | 3475 RPM | CE, cUL, UL | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|
4412FNHFAN AXIAL 119X25.4MM 12VDC WIRE |
135 |
|
Datasheet |
4400FN | Box | Active | 12VDC | Square - 119mm L x 119mm H | 132.5 CFM (3.71m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 55.0dB(A) | 12 W | 5400 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
