| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9HV0912P4H001FAN AXIAL 92X25.2MM 12VDC WIRE |
105 |
|
Datasheet |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 97.1 CFM (2.72m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 25.20mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 8.52 W | 6050 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
4414NFAN AXIAL 119X38MM 24VDC WIRE |
1,796 |
|
Datasheet |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 120.7 CFM (3.38m³/min) | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 5.4 W | 3650 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
4414LFAN AXIAL 119X38MM 24VDC WIRE |
3,218 |
|
Datasheet |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 88.4 CFM (2.47m³/min) | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 2.4 W | 2700 RPM | - | 2 Wire Leads | -4 ~ 176°F (-20 ~ 80°C) | - | 0.553 lb (250.84 g) |
|
4314/2FAN AXIAL 119X32MM 24VDC WIRE |
3,483 |
|
Datasheet |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 32.00mm | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 5 W | 2800 RPM | - | 3 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.485 lb (220.00 g) |
|
GF80251B1-000U-SE9FAN AXIAL 80X25MM 12VDC WIRE |
112 |
|
Datasheet |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.5dB(A) | 3.96 W | 4800 RPM | CE, CUR, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.231 lb (104.78 g) |
|

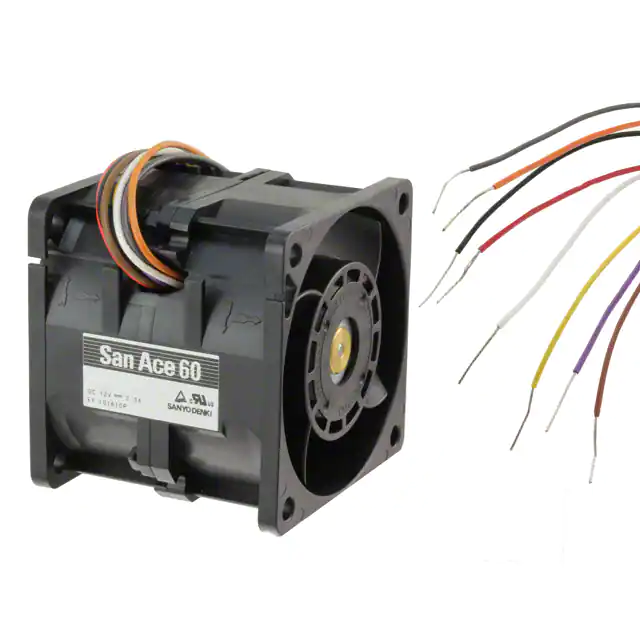

9CRA0612P6J001FAN AXIAL DUAL 60X56MM 12VDC |
1,353 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 74.1 CFM (2.07m³/min) | 3.827 in H2O (953.3 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 70.0dB(A) | 27.6 W | 16800 Front, 14500 Rear | cURus, TUV | 3 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.441 lb (200.00 g) |
|
9RF0912P1H001FAN AXIAL 92X38MM 12VDC WIRE |
3,264 |
|
Datasheet |
San Ace 92RF | Bulk | Active | 12VDC | Round - 92mm Dia | 42.4 CFM (1.19m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Reversible Flow, Speed Sensor (Tach) | 39.0dB(A) | 2 W | - | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9GV1248P1J01FAN AXIAL 120X38MM 48VDC WIRE |
297 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 36 W | 6400 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.794 lb (360.15 g) |
|
8314HRFAN AXIAL 80X32MM 24VDC WIRE |
1,511 |
|
Datasheet |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 47.1 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 48.0dB(A) | 6 W | 5000 RPM | - | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
9HV0912P4G0011FAN AXIAL 92X25.2MM 12VDC WIRE |
4,756 |
|
Datasheet |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 118.0 CFM (3.30m³/min) | 1.120 in H2O (279.0 Pa) | Ball | 25.20mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 14.76 W | 7350 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
8414NH-221FAN AXIAL 80X25.4MM 24VDC WIRE |
2,325 |
|
Datasheet |
8400N | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.5 CFM (1.30m³/min) | - | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.2 W | 3600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
PFB1224SE-00P0AXIAL 120X38 24V PWM |
121 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 265.4 CFM (7.43m³/min) | 2.070 in H2O (515.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 50.4 W | 7500 RPM | - | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
RER100-25/12FAN IMP MTRZD 100X32MM 12VDC |
4,818 |
|
Datasheet |
RER100DC | Box | Active | 12VDC | Round - 100mm Dia | 33.6 CFM (0.941m³/min) | - | Ball | 32.00mm | Motorized Impellers | - | 47.0dB(A) | 3.7 W | 1800 RPM | - | 2 Wire Leads | - | - | 0.4 lb (181.44 g) |
|
19032002AFAN AXIAL 79.8X41.8MM 24V SD24B2 |
277 |
|
Datasheet |
Sprite | Bulk | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 41.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | CE, UL | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 1.1 lbs (500.0 g) |
|
|
9WPA0424P6G001FAN AXIAL 40X20MM 24VDC WIRE |
2,704 |
|
Datasheet |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 13.4 CFM (0.375m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 2 W | 13700 RPM | CE, cURus, TUV, UR | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|

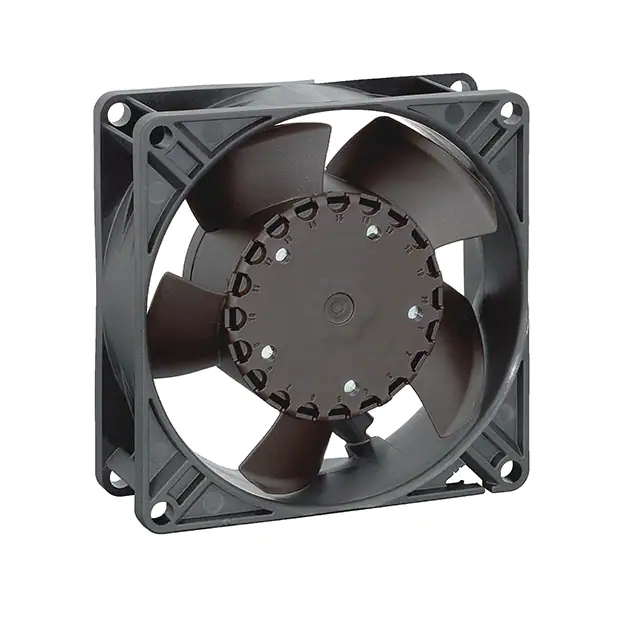

3314NHHFAN AXIAL 92X32MM 24VDC WIRE |
304 |
|
Datasheet |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 63.0 CFM (1.76m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 42.0dB(A) | - | 3450 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.419 lb (190.06 g) |
|
9GA0948P1H03FAN AXIAL 92X38MM 48VDC WIRE |
379 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 141.2 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 26.4 W | 9700 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
9GA1212G40011FAN AXIAL 120X25.4MM 12VDC WIRE |
3,005 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 11.16 W | 6400 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.617 lb (280.00 g) |
|

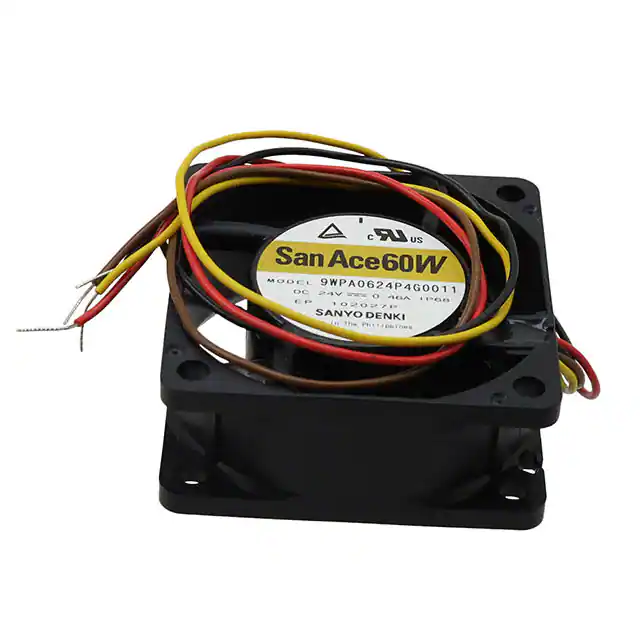

9WPA0624P4G0011FAN AXIAL 60X25MM 24VDC WIRE |
119 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 53.7 CFM (1.50m³/min) | 1.440 in H2O (358.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 11.04 W | 12000 RPM | - | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|

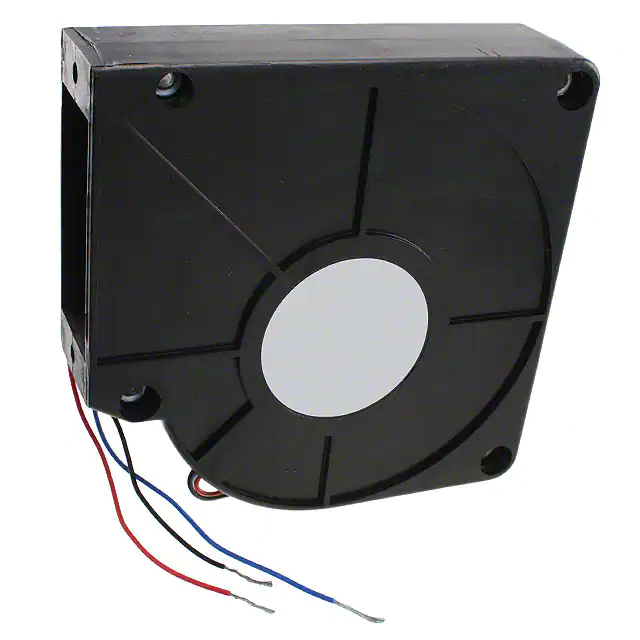

19030622AFAN BLOWER 120.7X31MM 24V BD24B7 |
190 |
|
Datasheet |
Biscuit | Bulk | Active | 24VDC | Square/Rounded - 120.7mm L x 120.7mm H | 25.0 CFM (0.700m³/min) | 0.870 in H2O (216.7 Pa) | Ball | 31.00mm | Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 51.2dB(A) | 11.5 W | 3100 RPM | CE, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.619 lb (280.77 g) |
