| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GL1248H1D01FAN AXIAL 120X38MM 48VDC WIRE |
1,461 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 5.28 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
|
9GL1248M1D01FAN AXIAL 120X38MM 48VDC WIRE |
1,927 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 3.36 W | 1950 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
|
9GL1248F101FAN AXIAL 119X38MM 48VDC WIRE |
4,253 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 4.32 W | 2280 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
|
9GL1248M101FAN AXIAL 119X38MM 48VDC WIRE |
2,482 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 3.36 W | 1950 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
|
DC0923824M2B-3T1FAN 92X38MM 24VDC TACH COMPUTER |
2,653 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 21.6 W | 5000 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0603824J2B-3T1FAN 60X38MM 24VDC TACH COMPUTER |
4,817 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 16.32 W | 9000 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0603824L2B-3T1FAN 60X38MM 24VDC TACH COMPUTER |
3,130 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 24 W | 10000 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
PMB1297PYB2-AY.(2).GNFAN BLOWER 97.2X33MM 12VDC WIRE |
4,199 |
|
Datasheet |
PMB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 26.6 CFM (0.745m³/min) | 0.650 in H2O (161.9 Pa) | Ball | 33.00mm | Blower | Auto Restart | 53.1dB(A) | 5.28 W | 3200 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.408 lb (185.07 g) |
|
|
PMB1297PYB3-AY.(2).GNFAN BLOWER 97.2X33MM 12VDC WIRE |
2,606 |
|
Datasheet |
PMB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 22.4 CFM (0.627m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 33.00mm | Blower | Auto Restart | 50.0dB(A) | 3.6 W | 2700 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.408 lb (185.07 g) |
|

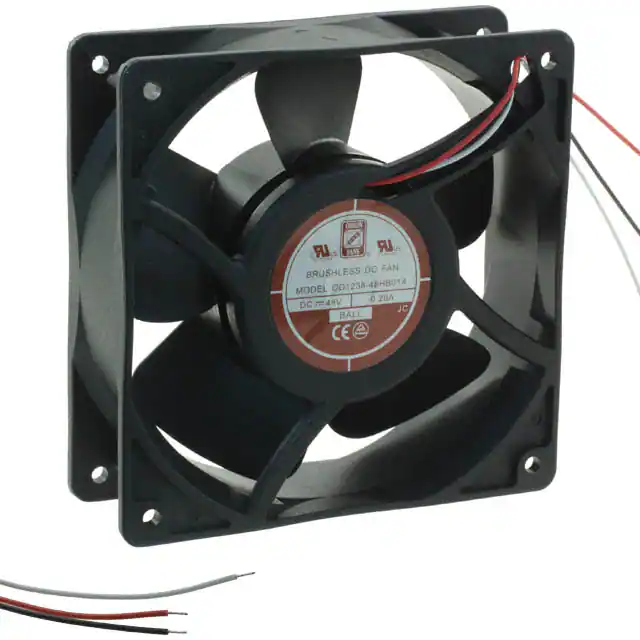

OD1238-48HB01AFAN AXIAL 120X38MM 48VDC WIRE |
3,431 |
|
Datasheet |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.1dB(A) | 14 W | 2895 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.572 lb (259.45 g) |
|
|
PF92382B3-1000U-A9HDC Fans DC Axial Fan, 92x92x38mm |
4,340 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PF92382B2-1000U-A9HDC Fans DC Axial Fan, 92x92x38mm |
2,406 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC1203848U2B-3T1FAN 120X38MM 48VDC TACH COMPUTER |
2,012 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 36 W | 2900 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
19032126AFAN 12VDC SPRINT ST12G3 |
1,842 |
|
Datasheet |
Sprint | - | Active | 12VDC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.128 in H2O (31.9 Pa) | Sleeve | 32.00mm | Tubeaxial | - | 35.5dB(A) | 1.4 W | 2490 RPM | - | 2 Wire Leads | - | - | 0.397 lb (180.08 g) |
|
3312FAN AXIAL 92X32MM 12VDC WIRE |
2,173 |
|
Datasheet |
3300 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 47.1 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 37.0dB(A) | 2.4 W | 3000 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.42 lb (190.51 g) |
|
|
3314FAN AXIAL 92X32MM 24VDC WIRE |
4,339 |
|
Datasheet |
3300 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 47.1 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 37.0dB(A) | 2.6 W | 3000 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.419 lb (190.06 g) |
|
4414FMDFAN AXIAL 119X25.4MM 24VDC WIRE |
2,176 |
|
Datasheet |
4400F | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 82.0 CFM (2.30m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 38.0dB(A) | 3.2 W | - | CE, CSA, UL, VDE | 2 Wire Leads | - | - | 0.38 lb (172.37 g) |
|
|
PF60382B1-1000U-A9HDC Fans DC Axial Fan, 60x60x38mm |
4,864 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PF60382B3-1000U-A9HDC Fans DC Axial Fan, 60x60x38mm |
4,792 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PF60382BX-1000U-A9HDC Fans DC Axial Fan, 60x60x38mm |
4,368 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
