| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1248M1D011FAN AXIAL 120X38MM 48VDC WIRE |
2,117 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 3.36 W | 1950 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
|
9G1248M1011FAN AXIAL 120X38MM 48VDC WIRE |
1,826 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 3.36 W | 1950 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
|
9GV0648H10160X38MM 48V,GUIDE VANE DC TACH |
1,781 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | cURus, TUV | 3 Wire Leads | - | - | - |
|
|
9RA1212F40011120X25MM 12VDC TACH |
2,426 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 78.3 CFM (2.19m³/min) | 0.173 in H2O (43.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.04 W | 2700 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA1212F4001120X25MM 12VDC TACH |
1,790 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 78.3 CFM (2.19m³/min) | 0.173 in H2O (43.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.04 W | 2700 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
DC1203848V2B-3T1FAN 120X38MM 48VDC TACH COMPUTER |
4,670 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 38.4 W | 3200 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

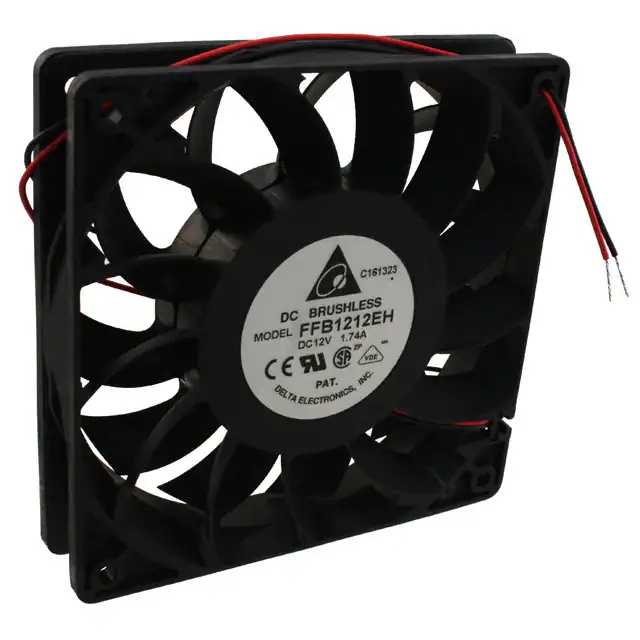

FFB1212EHFAN AXIAL 120X25.4MM 12VDC WIRE |
4,981 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 56.4dB(A) | 17.4 W | 4000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.452 lb (205.02 g) |
|
|
9GL1248E102FAN AXIAL 119X38MM 48VDC WIRE |
1,894 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 38.00mm | Tubeaxial | - | 46.0dB(A) | 8.16 W | 3100 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
|
9GL1248G102FAN AXIAL 119X38MM 48VDC WIRE |
1,528 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 38.00mm | Tubeaxial | - | 49.0dB(A) | 12 W | 3600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
|
DC0923824H2B-3T1FAN 92X38MM 24VDC TACH COMPUTER |
4,959 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 28.8 W | 6000 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0923824U2B-3T1FAN 92X38MM 24VDC TACH COMPUTER |
3,213 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 67.0dB(A) | 60 W | 7000 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OD1238-12MBXCFAN AXIAL 120X38.5MM 12VDC WIRE |
4,187 |
|
Datasheet |
OD1238 XC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 175.0 CFM (4.90m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 38.50mm | Tubeaxial | Auto Restart | 57.0dB | 18 W | 3800 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OD1238-48HBXCFAN AXIAL 120X38.5MM 48VDC WIRE |
2,297 |
|
Datasheet |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 200.0 CFM (5.60m³/min) | 0.640 in H2O (159.4 Pa) | Ball | 38.50mm | Tubeaxial | Auto Restart | 61.0dB | 25 W | 4300 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OD1238-48HHBXCFAN AXIAL 120X38.5MM 48VDC WIRE |
1,923 |
|
Datasheet |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 220.0 CFM (6.16m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 38.50mm | Tubeaxial | Auto Restart | 63.0dB | 32 W | 4700 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OD1238-48LBXCFAN AXIAL 120X38.5MM 48VDC WIRE |
1,727 |
|
Datasheet |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 150.0 CFM (4.20m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 38.50mm | Tubeaxial | Auto Restart | 52.0dB | 11 W | 3200 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OD1238-48MBXCFAN AXIAL 120X38.5MM 48VDC WIRE |
1,865 |
|
Datasheet |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 175.0 CFM (4.90m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 38.50mm | Tubeaxial | Auto Restart | 57.0dB | 17 W | 3800 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
PMD2409PMB3-A (2).GN.IP55FAN AXIAL 92X38MM 24VDC WIRE |
3,146 |
|
Datasheet |
PMD | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 91.8 CFM (2.57m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.3dB(A) | 6 W | 3800 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | - |
|
|
PMD4809PMB1-A.(2).GNFAN AXIAL 92X38MM 48VDC WIRE |
1,134 |
|
Datasheet |
PMD | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 120.2 CFM (3.37m³/min) | 0.710 in H2O (176.9 Pa) | Ball | 38.00mm | Tubeaxial | - | 57.6dB(A) | 11.5 W | 4900 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.419 lb (190.06 g) |
|
|
PMD4806PMB3-A.(2).GNFAN AXIAL 60X38MM 48VDC WIRE |
3,234 |
|
Datasheet |
PMD | Bulk | Obsolete | 48VDC | Square - 60mm L x 60mm H | 41.6 CFM (1.16m³/min) | 0.533 in H2O (132.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 47.0dB(A) | 6.2 W | 6000 RPM | - | 2 Wire Leads | - | - | - |
|
|
PMD4806PMB4-A.(2).GNFAN AXIAL 60X38MM 48VDC WIRE |
3,768 |
|
Datasheet |
PMD | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | - | - | Ball | 38.00mm | Tubeaxial | Auto Restart | - | - | - | - | 2 Wire Leads | - | - | - |
