| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV1224G4021FAN AXIAL 120X25.4MM 24VDC WIRE |
1,021 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 20.16 W | 5100 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.573 lb (260.00 g) |
|
|
9WP1248H1D01FAN AXIAL 120X38MM 48VDC WIRE |
2,422 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 5.28 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.794 lb (360.15 g) |
|
|
9WP1248H1D011FAN AXIAL 120X38MM 48VDC WIRE |
4,048 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 5.28 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.794 lb (360.15 g) |
|
|
9WP1248H101FAN AXIAL 120X38MM 48VDC WIRE |
3,974 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.794 lb (360.15 g) |
|
|
9WP1248H1011FAN AXIAL 120X38MM 48VDC WIRE |
2,728 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.794 lb (360.15 g) |
|
|
9WP1248H1021FAN AXIAL 120X38MM 48VDC WIRE |
4,717 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 5.28 W | 2600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.794 lb (360.15 g) |
|
|
9WP1248M1D01120X38MM 48V,SPLASH PROOF DC LCK |
2,402 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | - | - | - | CSA, TUV, UR | 3 Wire Leads | - | IP68 - Dust Tight, Waterproof | - |
|
|
9WP1248M1D011120X38MM 48V,SPLASH PROOF,RBLS D |
4,859 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | - | - | - | CSA, TUV, UR | 3 Wire Leads | - | IP68 - Dust Tight, Waterproof | - |
|
CFM-A751BF-225-460FAN AXIAL 172X51.5MM 24VDC WIRE |
4,090 |
|
Datasheet |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 180.5 CFM (5.11m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 51.50mm | Tubeaxial | Auto Restart | 46.0dB(A) | 12 W | 2500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-A751BF-125-460FAN AXIAL 172X51.5MM 12VDC WIRE |
4,871 |
|
Datasheet |
CFM-A7BF | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 180.5 CFM (5.11m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 51.50mm | Tubeaxial | Auto Restart | 46.0dB(A) | 10.08 W | 2500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

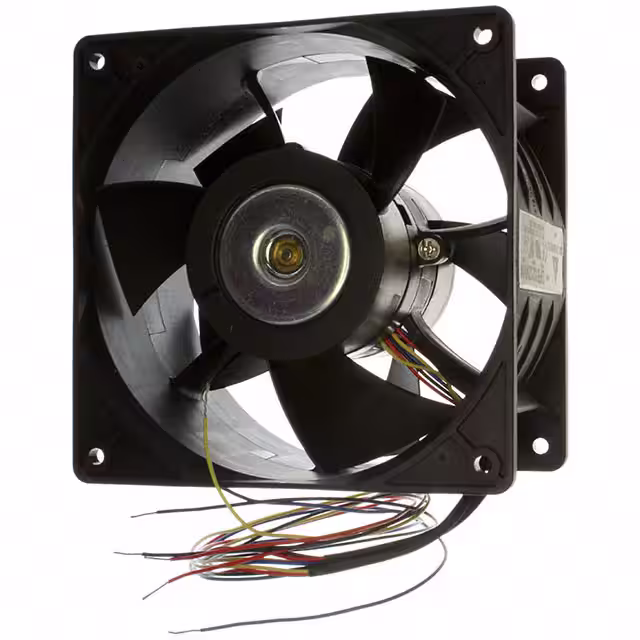

GFB1212VHW-TP05FAN AXIAL DUAL 120X76.2MM 12VDC |
3,089 |
|
Datasheet |
GFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 220.3 CFM (6.17m³/min) | 0.592 in H2O (147.5 Pa) | Ball | 76.20mm | Tubeaxial (Dual) | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 20.4 W | 3550 Front, 3200 Rear | CE, CSA, UL, VDE | 4 Wire Leads per Fan | 14 ~ 140°F (-10 ~ 60°C) | - | 1.3 lbs (589.7 g) |
|
|
9GV1212G401FAN AXIAL 119X25.4MM 12VDC WIRE |
3,833 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.573 lb (260.00 g) |
|
|
9GV1212G4011FAN AXIAL 119X25.4MM 12VDC WIRE |
4,896 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.573 lb (260.00 g) |
|
|
9GV1224G4D01FAN AXIAL 120X25.4MM 24VDC WIRE |
3,981 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Sensor | 58.0dB(A) | 20.16 W | 5100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.573 lb (260.00 g) |
|
|
9GV1212G4D01120X25MM 12V,GUIDE VANE DC LCKRT |
4,219 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | - | - | - | cURus, TUV | 3 Wire Leads | - | - | - |
|
|
9CR0612H00260X76MM 12V,COUNTER ROTATING DC |
4,150 |
|
Datasheet |
San Ace 60 | Box | Not For New Designs | 12VDC | Square - 60mm L x 60mm H | 70.7 CFM (1.98m³/min) | 1.807 in H2O (450.0 Pa) | Ball | 76.00mm | Tubeaxial (Dual) | Locked Rotor Protection | 64.0dB(A) | 32.4 W | 10300 Front, 6500 Rear | CSA, TUV, UR | 2 Wire Leads | - | - | - |
|
|
9GV1224P4G011FAN AXIAL 120X25.4MM 24VDC WIRE |
3,095 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.573 lb (260.00 g) |
|
|
PF60561BX-000U-A9HThermal Products |
2,025 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 72.9 CFM (2.04m³/min) | 3.440 in H2O (856.9 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Auto Restart | 71.7dB(A) | 30 W | 15300 RPM Front, 14300 RPM Rear | CE, CUR, TUV, UL | 2 Wire Leads per Fan | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
PF60561B1-000U-A9HThermal Products |
3,842 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 58.5 CFM (1.64m³/min) | 2.350 in H2O (585.4 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Auto Restart | 67.0dB(A) | 16.8 W | 12300 RPM Front, 11500 RPM Rear | CCC, CE, cURus, TUV | 2 Wire Leads | - | - | - |
|
19039193AFAN AXIAL 127X38.1MM GL12K3 |
4,136 |
|
Datasheet |
Galaxy | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 175.0 CFM (4.90m³/min) | - | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 57.9dB(A) | 23.9 W | 3900 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.4 lbs (635.0 g) |
