| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17001217AFAN AXIAL 24VDC SDD24B1-E3E |
1,714 |
|
Datasheet |
Sprite | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | - | Ball | 41.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
9GV1512H5021FAN AXIAL 150X50MM 12VDC WIRE |
3,008 |
|
Datasheet |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 50.00mm | Tubeaxial | - | 61.0dB(A) | 34.8 W | 3900 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.993 lb (450.42 g) |
|
|
9GV1512M5021FAN AXIAL 150X50MM 12VDC WIRE |
4,899 |
|
Datasheet |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 224.0 CFM (6.27m³/min) | 0.530 in H2O (132.0 Pa) | Ball | 50.00mm | Tubeaxial | - | 53.0dB(A) | 14.4 W | 3000 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.993 lb (450.42 g) |
|
|
9GV1512M502FAN AXIAL 150X50MM 12VDC WIRE |
2,470 |
|
Datasheet |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 224.0 CFM (6.27m³/min) | 0.530 in H2O (132.0 Pa) | Ball | 50.00mm | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 14.4 W | 3000 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.993 lb (450.42 g) |
|
|
5015KL-05W-B40-E00DC AXIAL FAN |
4,656 |
|
Datasheet |
5015KL | Box | Active | 24VDC | Square - 127mm L x 127mm H | 180.5 CFM (5.11m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 38.40mm | Tubeaxial | Auto Restart | 57.5dB | 17.28 W | 4000 RPM | - | 2 Wire Leads | 14 ~ 122°F (-10 ~ 50°C) | - | - |
|
|
9GV1248G4011FAN AXIAL 120X25.4MM 48VDC WIRE |
2,870 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.573 lb (260.00 g) |
|
|
9GV1248G401120X25MM 48V,GUIDE VANE DC TACH |
3,384 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | cURus, TUV | 3 Wire Leads | - | - | - |
|
|
3312/2FAN AXIAL 92X32MM 12VDC WIRE |
3,310 |
|
Datasheet |
3300N | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 47.1 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 2.4 W | 3000 RPM | - | 3 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
PF60561BX-000U-Q9H12VDC FAN 60X56MM ALARM/PWM |
1,400 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 72.8 CFM (2.04m³/min) | 3.440 in H2O (856.9 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | PWM Control | 71.7dB(A) | 30 W | 15300 RPM Front, 14300 RPM Rear | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads per Fan | - | - | - |
|
|
PF60561B1-000U-Q9H12VDC FAN 60X56MM ALARM/PWM |
4,069 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 58.8 CFM (1.64m³/min) | 2.350 in H2O (585.4 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | PWM Control | 67.0dB(A) | 16.8 W | 12300 RPM Front, 11500 RPM Rear | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads per Fan | - | - | - |
|
|
19039031AFAN 127X38.1MM 24V GL24B7-E2 |
3,147 |
|
Datasheet |
- | Box | Active | 24VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | - | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 53.6dB(A) | 15 W | 3200 RPM | UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9GV1512H5011FAN AXIAL 150X50MM 12VDC WIRE |
2,528 |
|
Datasheet |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 50.00mm | Tubeaxial | Speed Sensor (Tach) | 61.0dB(A) | 34.8 W | 3900 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.993 lb (450.42 g) |
|
|
9GV1512M5011FAN AXIAL 150X50MM 12VDC WIRE |
2,198 |
|
Datasheet |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 224.0 CFM (6.27m³/min) | 0.530 in H2O (132.0 Pa) | Ball | 50.00mm | Tubeaxial | Speed Sensor (Tach) | 53.0dB(A) | 14.4 W | 3000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.993 lb (450.42 g) |
|
|
17001141AFAN AXIAL 12VDC SDD12K1E2X-E3 |
2,407 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 43.0 CFM (1.20m³/min) | - | Ball | 41.78mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.1dB(A) | 5.2 W | 4200 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|

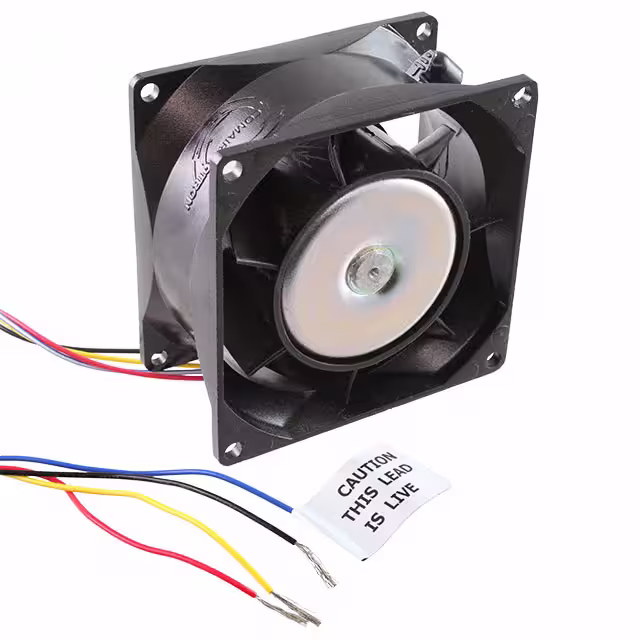

17001142AFAN AXIAL 24VDC SDD24K1E2X-E3 |
4,441 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 43.0 CFM (1.20m³/min) | - | Ball | 41.78mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.1dB(A) | 5.2 W | 4200 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
17001144AFAN DC IP68 SDD12Z1E2X-E3 |
1,987 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 50.0 CFM (1.40m³/min) | - | Ball | 41.78mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.4dB(A) | 8.1 W | 4900 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
17001145AFAN AXIAL 24VDC SDD24Z1E2X-E3 |
3,609 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 50.0 CFM (1.40m³/min) | - | Ball | 41.78mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.4dB(A) | 7.7 W | 4900 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
9GV1248P4G011FAN AXIAL 120X25.4MM 48VDC WIRE |
3,087 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.573 lb (260.00 g) |
|
|
9GV1248H402FAN AXIAL 120X25.4MM 48VDC WIRE |
3,608 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 154.0 CFM (4.31m³/min) | 0.730 in H2O (181.8 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 15.84 W | 4600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.573 lb (260.00 g) |
|
|
RL48-19/12MLDC FLATPAK - RADIAL BLOWER |
3,781 |
|
Datasheet |
RL48 | Bulk | Active | 12VDC | Rectangular/Rounded - 75.5mm L x 75.2mm H | 13.0 CFM (0.363m³/min) | - | Ball | 27.00mm | Blower, Centrifugal | - | - | 5 W | 3500 RPM | CSA, CE, VDE, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
