| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

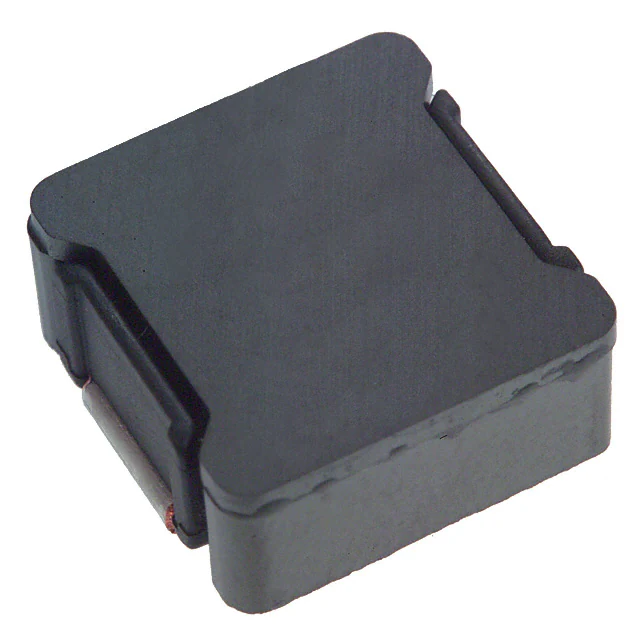

ETQ-P6F102HFAFIXED IND 10.2UH 6.5A 13.3 MOHM |
3,309 |
|
Datasheet |
PCC-F126F (N6) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | ±25% | 6.5 A | 4.7A | 10.2 µH | Shielded | 13.3mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|

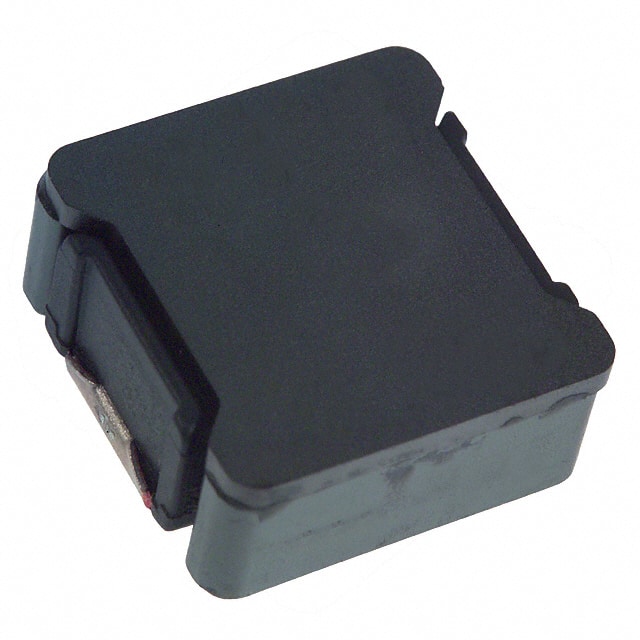

ETQ-P6F1R0SFAFIXED IND 1UH 14.2A 2.24MOHM SMD |
1,624 |
|
Datasheet |
PCC-F126F (N6) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | ±30% | 14.2 A | 19.4A | 1 µH | Shielded | 2.24mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|
|
ETQ-P6F1R6SFAFIXED IND 1.6UH 12.5A 3.3MOHM SM |
1,192 |
|
Datasheet |
PCC-F126F (N6) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | ±30% | 12.5 A | 14.9A | 1.6 µH | Shielded | 3.3mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|
|
ETQ-P6F2R5SFAFIXED IND 2.5UH 10.8A 4.92 MOHM |
4,087 |
|
Datasheet |
PCC-F126F (N6) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | ±30% | 10.8 A | 11.3A | 2.5 µH | Shielded | 4.92mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|
|
ETQ-P6F0R8LFAFIXED IND 800NH 14.2A 2.24 MOHM |
3,861 |
|
Datasheet |
PCC-F126F (N6) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | ±30% | 14.2 A | 25.2A | 800 nH | Shielded | 2.24mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|
|
ETQ-P6F1R3LFAFIXED IND 1.3UH 12.5A 3.3MOHM SM |
2,042 |
|
Datasheet |
PCC-F126F (N6) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | ±30% | 12.5 A | 18.6A | 1.3 µH | Shielded | 3.3mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|
RL895-333KFIXED IND 33MH 48MA 64.2 OHM TH |
1,630 |
|
Datasheet |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 48 mA | - | 33 mH | Unshielded | 64.2Ohm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
|
RL895-473KFIXED IND 47MH 38MA 96.4 OHM TH |
1,023 |
|
Datasheet |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 38 mA | - | 47 mH | Unshielded | 96.4Ohm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
ELJ-RER12JF3FIXED IND 120NH 130MA 3 OHM SMD |
3,226 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 130 mA | - | 120 nH | Unshielded | 3Ohm Max | 5 @ 25.2MHz | 1.2GHz | - | Surface Mount | -40°C ~ 85°C | - | 25.2 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RER18JF3FIXED IND 180NH 80MA 6.5 OHM SMD |
4,061 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 80 mA | - | 180 nH | Unshielded | 6.5Ohm Max | 4 @ 25.2MHz | 1GHz | - | Surface Mount | -40°C ~ 85°C | - | 25.2 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RER22JF3FIXED IND 220NH 70MA 7.5 OHM SMD |
1,629 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 70 mA | - | 220 nH | Unshielded | 7.5Ohm Max | 4 @ 25.2MHz | 900MHz | - | Surface Mount | -40°C ~ 85°C | - | 25.2 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
ELJ-RF56NJFFIXED IND 56NH 130MA 2.5 OHM SMD |
2,962 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 130 mA | - | 56 nH | Unshielded | 2.5Ohm Max | 8 @ 100MHz | 1.5GHz | - | Surface Mount | -20°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF68NJFFIXED IND 68NH 120MA 4 OHM SMD |
4,925 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 120 mA | - | 68 nH | Unshielded | 4Ohm Max | 8 @ 100MHz | 1.5GHz | - | Surface Mount | -20°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF82NJFFIXED IND 82NH 110MA 4.5 OHM SMD |
2,737 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 110 mA | - | 82 nH | Unshielded | 4.5Ohm Max | 8 @ 100MHz | 1.4GHz | - | Surface Mount | -20°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

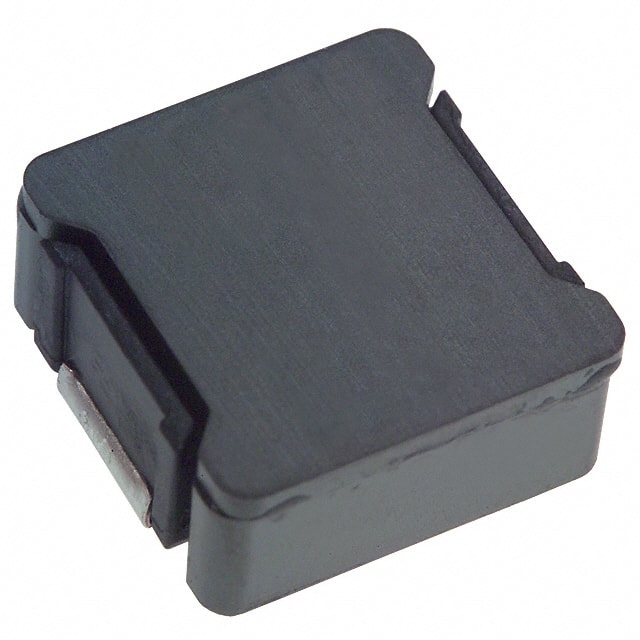

ETQ-PAF4R8HFAFIXED IND 4.8UH 14.4A 2.29 MOHM |
1,911 |
|
Datasheet |
PCC-F179F (S1) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | ±30% | 14.4 A | 10.6A | 4.8 µH | Shielded | 2.29mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.677" L x 0.661" W (17.20mm x 16.80mm) | 0.354" (9.00mm) |
|
ELL-6RH6R2MFIXED IND 6.2UH 1.4A 62 MOHM SMD |
4,347 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.4 A | - | 6.2 µH | Shielded | 62mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.110" (2.80mm) |
|
|
ELL-6RH7R5MFIXED IND 7.5UH 1.25A 80MOHM SMD |
3,000 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.25 A | - | 7.5 µH | Shielded | 80mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.110" (2.80mm) |
|
ELL-6SH391MFIXED IND 390UH 210MA 2.8OHM SMD |
4,958 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 210 mA | - | 390 µH | Shielded | 2.8Ohm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
|
|
ELL-6SH561MFIXED IND 560UH 180MA 3.7OHM SMD |
2,793 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 180 mA | - | 560 µH | Shielded | 3.7Ohm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
|
TTC-119FIXED IND 1.3H 100MA 180 OHM TH |
2,091 |
|
Datasheet |
167 | Radial, Horizontal, 4 Leads | Bulk | Obsolete | - | - | -10%, +50% | 100 mA | - | 1.3 H | Unshielded | 180Ohm | - | - | - | Through Hole | - | - | 1 kHz | - | 1.429" L x 1.250" W (36.30mm x 31.75mm) | 1.319" (33.50mm) |
