| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P6F1R1BFAFIXED IND 1.06UH 16A 2.24MOHM SM |
1,075 |
|
Datasheet |
PCC-D126F (N6B) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | ±20% | 16 A | - | 1.06 µH | Shielded | 2.24mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|
|
ETQ-P6F2R5BFAFIXED IND 2.45UH 12A 4.92 MOHM |
2,103 |
|
Datasheet |
PCC-D126F (N6B) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | ±20% | 12 A | - | 2.45 µH | Shielded | 4.92mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|

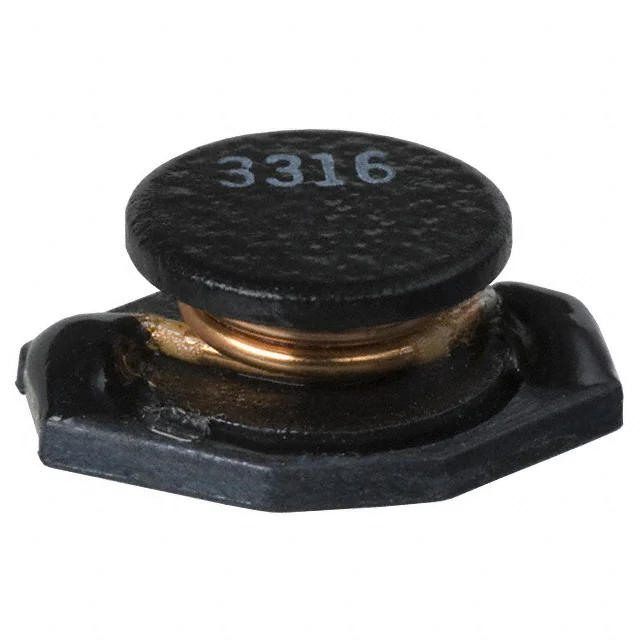

PM3316-681MFIXED IND 680UH 400MA 2.02OHM SM |
2,290 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 400mA | 680 µH | Unshielded | 2.02Ohm | - | - | - | Surface Mount | -55°C ~ 105°C | - | 100 kHz | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
PM3308-150MFIXED IND 15UH 1.5A 150 MOHM SMD |
4,144 |
|
Datasheet |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 2A | 15 µH | Unshielded | 150mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-330MFIXED IND 33UH 1.1A 300 MOHM SMD |
4,848 |
|
Datasheet |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.4A | 33 µH | Unshielded | 300mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-221MFIXED IND 220UH 400MA 1.9OHM SMD |
2,810 |
|
Datasheet |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 500mA | 220 µH | Unshielded | 1.9Ohm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-681MFIXED IND 680UH 100MA 5.3OHM SMD |
2,505 |
|
Datasheet |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 100 mA | 200mA | 680 µH | Unshielded | 5.3Ohm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-102MFIXED IND 1MH 50MA 8.4 OHM SMD |
3,095 |
|
Datasheet |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 50 mA | 100mA | 1 mH | Unshielded | 8.4Ohm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
PM3340-681MFIXED IND 680UH 200MA 1.2OHM SMD |
2,962 |
|
Datasheet |
PM3340 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 200 mA | 1A | 680 µH | Unshielded | 1.2Ohm Max | - | - | - | Surface Mount | -55°C ~ 105°C | - | 100 kHz | - | 0.512" L x 0.402" W (13.00mm x 10.20mm) | 0.453" (11.50mm) |
|

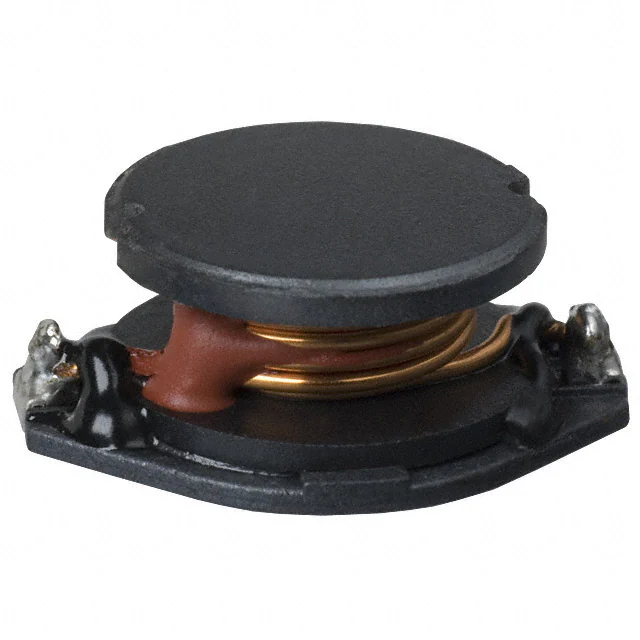

PM5022-102MFIXED IND 1MH 500MA 1.8 OHM SMD |
4,527 |
|
Datasheet |
PM5022 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 1A | 1 mH | Unshielded | 1.8Ohm | - | - | - | Surface Mount | -55°C ~ 105°C | - | 100 kHz | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
2102-HFIXED IND 12UH 10.3A 7 MOHM TH |
4,748 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | ±15% | 10.3 A | - | 12 µH | Unshielded | 7mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2215-HFIXED IND 180UH 3.8A 75 MOHM TH |
1,162 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 3.8 A | - | 180 µH | Shielded | 75mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
ELJ-PA470KFFIXED IND 47UH 135MA 2.25OHM SMD |
2,563 |
|
Datasheet |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 135 mA | - | 47 µH | Unshielded | 2.25Ohm Max | 15 @ 2.52MHz | 9.5MHz | - | Surface Mount | -20°C ~ 85°C | - | 2.52 MHz | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ELJ-PE2N2KFFIXED IND 2.2NH 2.1A 30 MOHM SMD |
4,330 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 2.1 A | - | 2.2 nH | Unshielded | 30mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-PE4N7KFFIXED IND 4.7NH 2.1A 50 MOHM SMD |
4,960 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 2.1 A | - | 4.7 nH | Unshielded | 50mOhm Max | 9 @ 100MHz | 4.8GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-PE6N8KFFIXED IND 6.8NH 1.9A 55 MOHM SMD |
2,812 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 1.9 A | - | 6.8 nH | Unshielded | 55mOhm Max | 9 @ 100MHz | 4GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-PE10NKFFIXED IND 10NH 1.4A 65 MOHM SMD |
2,180 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 1.4 A | - | 10 nH | Unshielded | 65mOhm Max | 9 @ 100MHz | 2.8GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-PE12NKFFIXED IND 12NH 1.3A 80 MOHM SMD |
1,465 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 1.3 A | - | 12 nH | Unshielded | 80mOhm Max | 9 @ 100MHz | 2.5GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-PE15NKFFIXED IND 15NH 900MA 100MOHM SMD |
3,784 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 900 mA | - | 15 nH | Unshielded | 100mOhm Max | 9 @ 100MHz | 2.2GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-PE18NKFFIXED IND 18NH 800MA 120MOHM SMD |
1,528 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 800 mA | - | 18 nH | Unshielded | 120mOhm Max | 9 @ 100MHz | 2GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
