| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM1210-8R2JFIXED IND 8.2UH 170MA 2.3OHM SMD |
4,947 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 170 mA | - | 8.2 µH | Unshielded | 2.3Ohm Max | 30 @ 7.96MHz | 40MHz | - | Surface Mount | -40°C ~ 125°C | - | 7.96 MHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-120JFIXED IND 12UH 140MA 2.8 OHM SMD |
4,982 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 140 mA | - | 12 µH | Unshielded | 2.8Ohm Max | 30 @ 2.52MHz | 33MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-180JFIXED IND 18UH 120MA 3.6 OHM SMD |
1,070 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 120 mA | - | 18 µH | Unshielded | 3.6Ohm Max | 30 @ 2.52MHz | 27MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-270JFIXED IND 27UH 80MA 5 OHM SMD |
1,402 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 80 mA | - | 27 µH | Unshielded | 5Ohm Max | 30 @ 2.52MHz | 20MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-390JFIXED IND 39UH 65MA 6.4 OHM SMD |
2,804 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 65 mA | - | 39 µH | Unshielded | 6.4Ohm Max | 30 @ 2.52MHz | 16MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-470JFIXED IND 47UH 60MA 7 OHM SMD |
4,812 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 60 mA | - | 47 µH | Unshielded | 7Ohm Max | 30 @ 2.52MHz | 15MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-560JFIXED IND 56UH 55MA 8 OHM SMD |
2,649 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 55 mA | - | 56 µH | Unshielded | 8Ohm Max | 30 @ 2.52MHz | 13MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-680JFIXED IND 68UH 50MA 9 OHM SMD |
1,809 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 50 mA | - | 68 µH | Unshielded | 9Ohm Max | 30 @ 2.52MHz | 12MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-820JFIXED IND 82UH 45MA 10 OHM SMD |
4,097 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 45 mA | - | 82 µH | Unshielded | 10Ohm Max | 30 @ 2.52MHz | 11MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-121JFIXED IND 120UH 70MA 110 OHM SMD |
2,061 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 70 mA | - | 120 µH | Unshielded | 110Ohm Max | 20 @ 796kHz | 10MHz | - | Surface Mount | -40°C ~ 125°C | - | 796 kHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-181JFIXED IND 180UH 60MA 17 OHM SMD |
1,014 |
|
Datasheet |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 60 mA | - | 180 µH | Unshielded | 17Ohm Max | 20 @ 796kHz | 7MHz | - | Surface Mount | -40°C ~ 125°C | - | 796 kHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

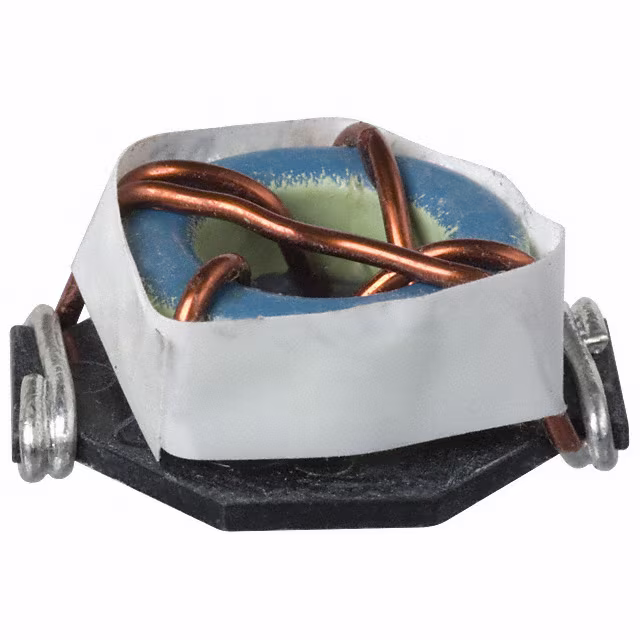

PM2110-5R6MFIXED IND 5.6UH 13.7A 5 MOHM SMD |
1,887 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±20% | 13.7 A | - | 5.6 µH | Unshielded | 5mOhm Max | - | - | - | Surface Mount | -55°C ~ 105°C | - | 1 kHz | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.570" (14.48mm) |
|

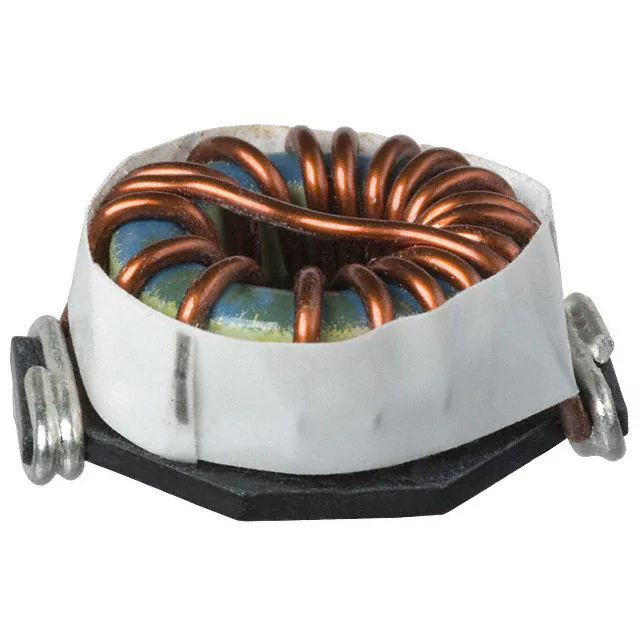

PM2110-390KFIXED IND 39UH 6.8A 20 MOHM SMD |
1,392 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±10% | 6.8 A | - | 39 µH | Unshielded | 20mOhm Max | - | - | - | Surface Mount | -55°C ~ 105°C | - | 1 kHz | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.620" (15.75mm) |
|
|
PM2110-331KFIXED IND 330UH 3.2A 90 MOHM SMD |
4,299 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±10% | 3.2 A | - | 330 µH | Unshielded | 90mOhm Max | - | - | - | Surface Mount | -55°C ~ 105°C | - | 1 kHz | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|
|
PM2110-391KFIXED IND 390UH 3.1A 98 MOHM SMD |
4,321 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±10% | 3.1 A | - | 390 µH | Unshielded | 98mOhm Max | - | - | - | Surface Mount | -55°C ~ 105°C | - | 1 kHz | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|

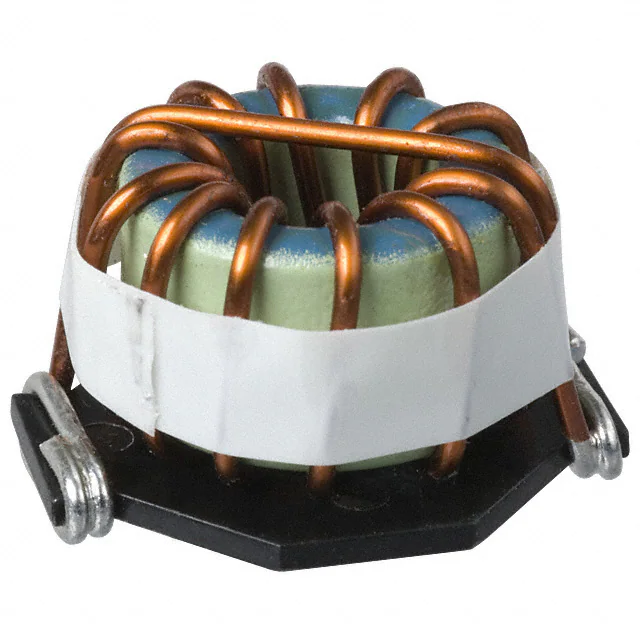

PM2120-331KFIXED IND 330UH 3.6A 100MOHM SMD |
3,707 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±10% | 3.6 A | - | 330 µH | Unshielded | 100mOhm Max | - | - | - | Surface Mount | -55°C ~ 105°C | - | 1 kHz | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.780" (19.81mm) |
|

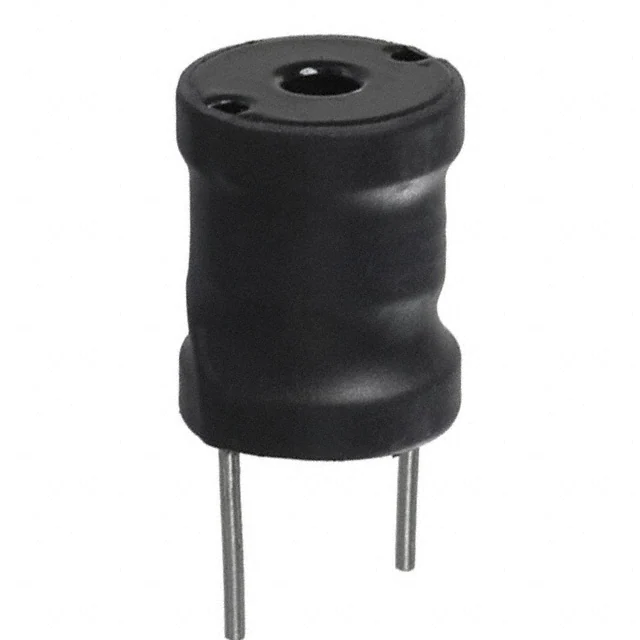

1110-3R3MFIXED IND 3.3UH 9A 5 MOHM TH |
4,573 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 9 A | - | 3.3 µH | Unshielded | 5mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-271KFIXED IND 270UH 1.6A 300 MOHM TH |
2,745 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | - | 270 µH | Unshielded | 300mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-471KFIXED IND 470UH 800MA 636MOHM TH |
3,006 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | - | 470 µH | Unshielded | 636mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
1120-1R2MFIXED IND 1.2UH 11.4A 3 MOHM TH |
1,796 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 11.4 A | - | 1.2 µH | Unshielded | 3mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
