| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL187-471J-RCFIXED IND 470UH 200MA 4 OHM TH |
4,826 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 200 mA | - | 470 µH | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.9MHz | - | Through Hole | -55°C ~ 105°C | - | 796 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-561J-RCFIXED IND 560UH 200MA 4 OHM TH |
4,447 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 200 mA | - | 560 µH | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.7MHz | - | Through Hole | -55°C ~ 105°C | - | 796 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-681J-RCFIXED IND 680UH 200MA 4 OHM TH |
2,757 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 200 mA | - | 680 µH | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.6MHz | - | Through Hole | -55°C ~ 105°C | - | 796 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-821J-RCFIXED IND 820UH 200MA 6 OHM TH |
3,446 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 200 mA | - | 820 µH | Unshielded | 6Ohm Max | 80 @ 796kHz | 1.4MHz | - | Through Hole | -55°C ~ 105°C | - | 796 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-122J-RCFIXED IND 1.2MH 150MA 9 OHM TH |
3,961 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 150 mA | - | 1.2 mH | Unshielded | 9Ohm Max | 90 @ 252kHz | 1.2MHz | - | Through Hole | -55°C ~ 105°C | - | 252 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-152J-RCFIXED IND 1.5MH 150MA 9 OHM TH |
4,464 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 150 mA | - | 1.5 mH | Unshielded | 9Ohm Max | 90 @ 252kHz | 1.1MHz | - | Through Hole | -55°C ~ 105°C | - | 252 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-222J-RCFIXED IND 2.2MH 100MA 13 OHM TH |
1,439 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 100 mA | - | 2.2 mH | Unshielded | 13Ohm Max | 90 @ 252kHz | 900kHz | - | Through Hole | -55°C ~ 105°C | - | 252 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-272J-RCFIXED IND 2.7MH 100MA 13 OHM TH |
4,805 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 100 mA | - | 2.7 mH | Unshielded | 13Ohm Max | 90 @ 252kHz | 800kHz | - | Through Hole | -55°C ~ 105°C | - | 252 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-332J-RCFIXED IND 3.3MH 100MA 13 OHM TH |
2,709 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 100 mA | - | 3.3 mH | Unshielded | 13Ohm Max | 90 @ 252kHz | 700kHz | - | Through Hole | -55°C ~ 105°C | - | 252 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-472J-RCFIXED IND 4.7MH 50MA 18 OHM TH |
2,127 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 50 mA | - | 4.7 mH | Unshielded | 18Ohm Max | 90 @ 252kHz | 600kHz | - | Through Hole | -55°C ~ 105°C | - | 252 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-682J-RCFIXED IND 6.8MH 50MA 26 OHM TH |
1,512 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 50 mA | - | 6.8 mH | Unshielded | 26Ohm Max | 90 @ 252kHz | 500kHz | - | Through Hole | -55°C ~ 105°C | - | 252 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-822J-RCFIXED IND 8.2MH 50MA 26 OHM TH |
4,179 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 50 mA | - | 8.2 mH | Unshielded | 26Ohm Max | 90 @ 252kHz | 400kHz | - | Through Hole | -55°C ~ 105°C | - | 252 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-103J-RCFIXED IND 10MH 40MA 40 OHM TH |
3,358 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 40 mA | - | 10 mH | Unshielded | 40Ohm Max | 100 @ 79.6kHz | 400kHz | - | Through Hole | -55°C ~ 105°C | - | 79.6 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-153J-RCFIXED IND 15MH 40MA 60 OHM TH |
3,254 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 40 mA | - | 15 mH | Unshielded | 60Ohm Max | 100 @ 79.6kHz | 400kHz | - | Through Hole | -55°C ~ 105°C | - | 79.6 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-183J-RCFIXED IND 18MH 30MA 60 OHM TH |
1,196 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | 18 mH | Unshielded | 60Ohm Max | 100 @ 79.6kHz | 300kHz | - | Through Hole | -55°C ~ 105°C | - | 79.6 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-223J-RCFIXED IND 22MH 30MA 80 OHM TH |
3,219 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | 22 mH | Unshielded | 80Ohm Max | 100 @ 79.6kHz | 300kHz | - | Through Hole | -55°C ~ 105°C | - | 79.6 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-273J-RCFIXED IND 27MH 30MA 80 OHM TH |
3,507 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | 27 mH | Unshielded | 80Ohm Max | 100 @ 79.6kHz | 300kHz | - | Through Hole | -55°C ~ 105°C | - | 79.6 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-333J-RCFIXED IND 33MH 30MA 80 OHM TH |
2,881 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | 33 mH | Unshielded | 80Ohm Max | 100 @ 79.6kHz | 300kHz | - | Through Hole | -55°C ~ 105°C | - | 79.6 kHz | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|

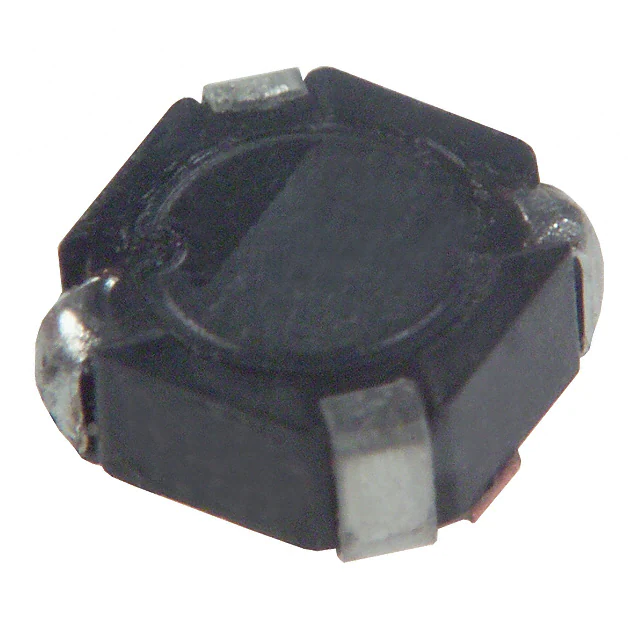

ELL-4GM470MFIXED IND 47UH 260MA 1.05OHM SMD |
2,883 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 260 mA | - | 47 µH | Shielded | 1.05Ohm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
ELL-5GM470MFIXED IND 47UH 390MA 930MOHM SMD |
4,771 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 390 mA | - | 47 µH | Shielded | 930mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
