| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

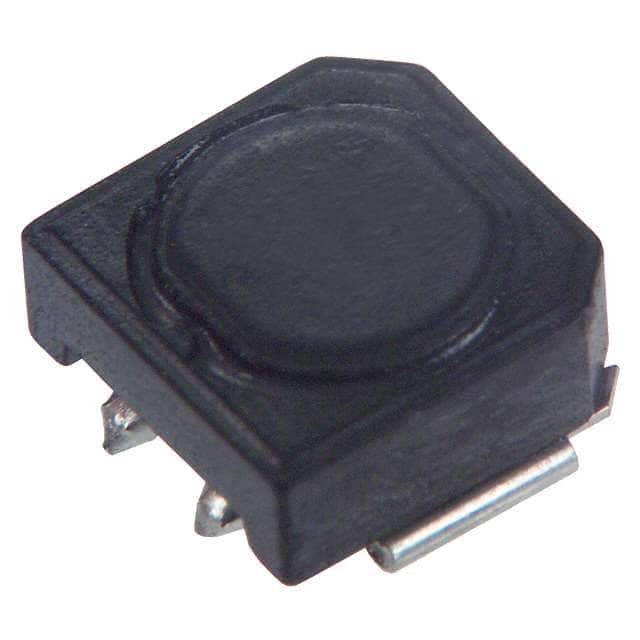

ELL-6SH681MFIXED IND 680UH 160MA 4.3OHM SMD |
2,207 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 160 mA | - | 680 µH | Shielded | 4.3Ohm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
-0,33mm.jpg)
|
HK060310NJ-TFIXED IND 10NH 220MA 510MOHM SMD |
3,722 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±5% | 220 mA | - | 10 nH | Unshielded | 510mOhm Max | 5 @ 100MHz | 2.9GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK060312NJ-TFIXED IND 12NH 190MA 680MOHM SMD |
2,991 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±5% | 190 mA | - | 12 nH | Unshielded | 680mOhm Max | 5 @ 100MHz | 2.7GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK060318NJ-TFIXED IND 18NH 170MA 810MOHM SMD |
2,790 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±5% | 170 mA | - | 18 nH | Unshielded | 810mOhm Max | 5 @ 100MHz | 2.1GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06031N0S-TFIXED IND 1NH 470MA 110 MOHM SMD |
3,975 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±0.3nH | 470 mA | - | 1 nH | Unshielded | 110mOhm Max | 4 @ 100MHz | 10GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06031N8S-TFIXED IND 1.8NH 390MA 160MOHM SM |
2,507 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±0.3nH | 390 mA | - | 1.8 nH | Unshielded | 160mOhm Max | 4 @ 100MHz | 10GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06032N2S-TFIXED IND 2.2NH 360MA 190MOHM SM |
3,610 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±0.3nH | 360 mA | - | 2.2 nH | Unshielded | 190mOhm Max | 4 @ 100MHz | 8.8GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK060339NJ-TFIXED IND 39NH 100MA 1.72OHM SMD |
1,530 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±5% | 100 mA | - | 39 nH | Unshielded | 1.72Ohm Max | 4 @ 100MHz | 1.5GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK060347NJ-TFIXED IND 47NH 100MA 1.9 OHM SMD |
3,819 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±5% | 100 mA | - | 47 nH | Unshielded | 1.9Ohm Max | 4 @ 100MHz | 1.3GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK060356NJ-TFIXED IND 56NH 80MA 2.27 OHM SMD |
1,505 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±5% | 80 mA | - | 56 nH | Unshielded | 2.27Ohm Max | 4 @ 100MHz | 1.1GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06036N8J-TFIXED IND 6.8NH 250MA 390MOHM SM |
3,067 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±5% | 250 mA | - | 6.8 nH | Unshielded | 390mOhm Max | 5 @ 100MHz | 3.9GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
.jpg)
|
HK100510NJ-TFIXED IND 10NH 340MA 310MOHM SMD |
1,824 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±5% | 340 mA | - | 10 nH | Unshielded | 310mOhm Max | 8 @ 100MHz | 3.2GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK100515NJ-TFIXED IND 15NH 320MA 460MOHM SMD |
2,918 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±5% | 320 mA | - | 15 nH | Unshielded | 460mOhm Max | 8 @ 100MHz | 2.3GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK100518NJ-TFIXED IND 18NH 310MA 550MOHM SMD |
4,117 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±5% | 310 mA | - | 18 nH | Unshielded | 550mOhm Max | 8 @ 100MHz | 2.1GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK10051N0S-TFIXED IND 1NH 900MA 80 MOHM SMD |
2,833 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±0.3nH | 900 mA | - | 1 nH | Unshielded | 80mOhm Max | 8 @ 100MHz | 10GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK10051N2S-TFIXED IND 1.2NH 300MA 90MOHM SMD |
4,815 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±0.3nH | 300 mA | - | 1.2 nH | Unshielded | 90mOhm Max | 8 @ 100MHz | 10GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK10051N5S-TFIXED IND 1.5NH 850MA 100MOHM SM |
2,574 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±0.3nH | 850 mA | - | 1.5 nH | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK10051N8S-TFIXED IND 1.8NH 700MA 120MOHM SM |
1,428 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±0.3nH | 700 mA | - | 1.8 nH | Unshielded | 120mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
HK10052N0S-TFIXED IND 2NH 700MA 120 MOHM SMD |
2,418 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±0.3nH | 700 mA | - | 2 nH | Unshielded | 120mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK10052N2S-TFIXED IND 2.2NH 700MA 130MOHM SM |
2,806 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±0.3nH | 700 mA | - | 2.2 nH | Unshielded | 130mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
