| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74F156AP-RCFIXED IND 1.5UH 900MA 250MOHM TH |
2,101 |
|
Datasheet |
74F | Axial | Bulk | Obsolete | Wirewound | Phenolic | ±20% | 900 mA | - | 1.5 µH | Unshielded | 250mOhm Max | 45 @ 7.96MHz | 160MHz | - | Through Hole | -55°C ~ 125°C | - | 7.96 MHz | - | 0.200" Dia x 0.500" L (5.08mm x 12.70mm) | - |
|
HPL0603-10NFIXED IND 10NH 150MA 2.2 OHM SMD |
2,428 |
|
Datasheet |
HPL | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | ±2% | 150 mA | - | 10 nH | Unshielded | 2.2Ohm Max | 10 @ 300MHz | 4.5GHz | - | Surface Mount | - | - | 500 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
HPL1005-5N1FIXED IND 5.1NH 460MA 68.8 MOHM |
4,837 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | ±0.2nH | 460 mA | - | 5.1 nH | Unshielded | 68.8mOhm Max | 10 @ 300MHz | 5.5GHz | - | Surface Mount | - | - | 300 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
L08056R5DEWTR\3FIXED IND 6.5NH 600 MOHM SMD |
3,900 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.5nH | - | - | 6.5 nH | Unshielded | 600mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 450 MHz | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
L04021R0AHNFIXED IND 1NH 500MA 150 MOHM SMD |
3,990 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.05nH | 500 mA | - | 1 nH | Unshielded | 150mOhm Max | 20 @ 450MHz | 20GHz | - | Surface Mount | - | - | 450 MHz | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L04021R2AHNFIXED IND 1.2NH 400MA 200MOHM SM |
3,251 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.05nH | 400 mA | - | 1.2 nH | Unshielded | 200mOhm Max | 20 @ 450MHz | 20GHz | - | Surface Mount | - | - | 450 MHz | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L04021R5AHNFIXED IND 1.5NH 400MA 200MOHM SM |
3,284 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.05nH | 400 mA | - | 1.5 nH | Unshielded | 200mOhm Max | 20 @ 450MHz | 18GHz | - | Surface Mount | - | - | 450 MHz | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L04021R8AHNFIXED IND 1.8NH 400MA 200MOHM SM |
1,669 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.05nH | 400 mA | - | 1.8 nH | Unshielded | 200mOhm Max | 18 @ 450MHz | 16GHz | - | Surface Mount | - | - | 450 MHz | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L04022R2AHNFIXED IND 2.2NH 400MA 200MOHM SM |
1,493 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.05nH | 400 mA | - | 2.2 nH | Unshielded | 200mOhm Max | 15 @ 450MHz | 15GHz | - | Surface Mount | - | - | 450 MHz | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
NLHV25T-R12J-PFFIXED IND 120NH 550MA 380MOHM SM |
1,460 |
|
Datasheet |
NLHV | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±5% | 550 mA | - | 120 nH | Unshielded | 380mOhm Max | 30 @ 25.2MHz | 700MHz | - | Surface Mount | -40°C ~ 105°C | - | 25.2 MHz | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

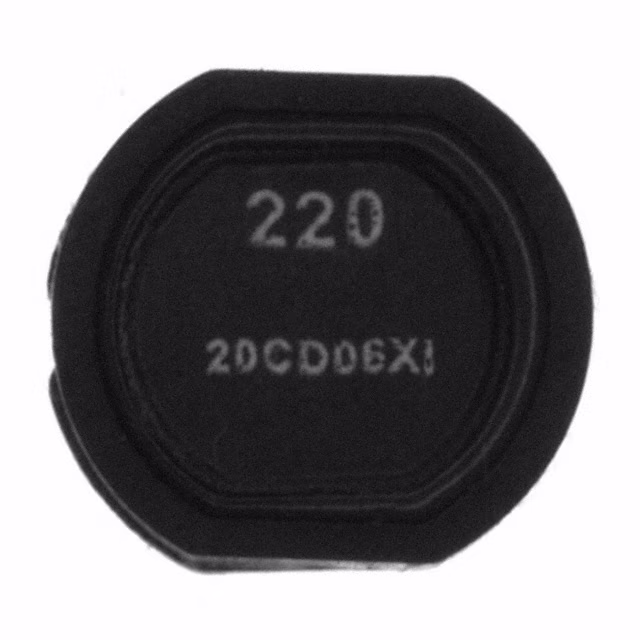

LDS0705-220M-RFIXED IND 22UH 1.66A 84 MOHM SMD |
1,821 |
|
Datasheet |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.66 A | 1.71A | 22 µH | Shielded | 84mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
GLFR1608T220M-LRFIXED IND 22UH 200MA 1 OHM SMD |
3,726 |
|
Datasheet |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 200 mA | 50mA | 22 µH | Shielded | 1Ohm | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
GLFR1608T470M-LRFIXED IND 47UH 100MA 2.3 OHM SMD |
4,167 |
|
Datasheet |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 100 mA | 35mA | 47 µH | Shielded | 2.3Ohm | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
NLHV25T-R39J-PFFIXED IND 390NH 375MA 730MOHM SM |
4,656 |
|
Datasheet |
NLHV | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±5% | 375 mA | - | 390 nH | Unshielded | 730mOhm Max | 40 @ 25.2MHz | 375MHz | - | Surface Mount | -40°C ~ 105°C | - | 25.2 MHz | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
VLF10040T-2R2N7R1FIXED IND 2.2UH 7.1A 9.5MOHM SMD |
1,779 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 7.1 A | 8.2A | 2.2 µH | Shielded | 9.5mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.157" (4.00mm) |
|
VLF10045T-1R0N100FIXED IND 1UH 10A 5.5 MOHM SMD |
1,930 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 10 A | 13.5A | 1 µH | Shielded | 5.5mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.177" (4.50mm) |
|
VLF12060T-2R7N100FIXED IND 2.7UH 10A 6.4 MOHM SMD |
3,313 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 10 A | 12A | 2.7 µH | Shielded | 6.4mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.472" L x 0.461" W (12.00mm x 11.70mm) | 0.236" (6.00mm) |
.JPG)
|
B82442H1334K000FIXED IND 330UH 200MA 3.92OHM SM |
1,774 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 200 mA | - | 330 µH | Unshielded | 3.92Ohm Max | 20 @ 796kHz | 3.2MHz | AEC-Q200 | Surface Mount | -55°C ~ 150°C | - | 796 kHz | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
ELL-5PS4R7NFIXED IND 4.7UH 1.6A 61 MOHM SMD |
1,931 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.6 A | 1.5A | 4.7 µH | Shielded | 61mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

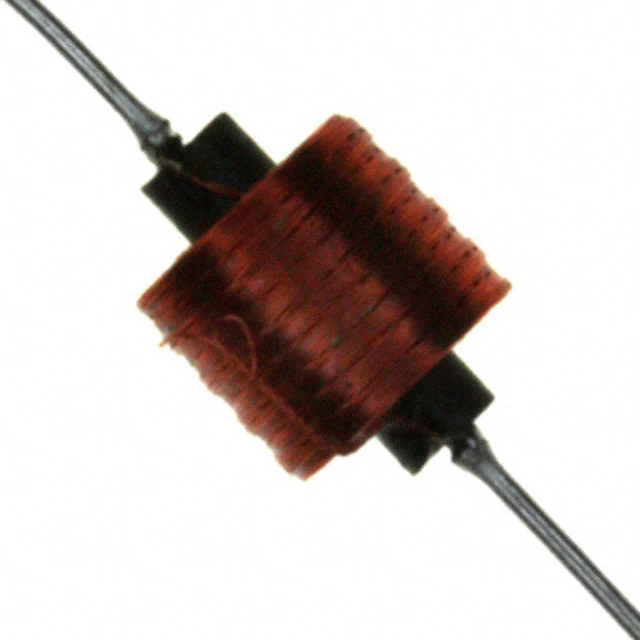

70F753AI-RCFIXED IND 7.5MH 41MA 85.2 OHM TH |
3,334 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 41 mA | - | 7.5 mH | Unshielded | 85.2Ohm Max | 49 @ 250kHz | 600kHz | - | Through Hole | -55°C ~ 105°C | - | 250 kHz | - | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) | - |
