| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQ1052N7S-TFIXED IND 2.7NH 820MA 90MOHM SMD |
4,565 |
|
Datasheet |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 820 mA | - | 2.7 nH | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1053N6S-TFIXED IND 3.6NH 650MA 140MOHM SM |
3,222 |
|
Datasheet |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 650 mA | - | 3.6 nH | Unshielded | 140mOhm Max | 8 @ 100MHz | 5GHz | - | Surface Mount | -55°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1053N9S-TFIXED IND 3.9NH 630MA 150MOHM SM |
1,416 |
|
Datasheet |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 630 mA | - | 3.9 nH | Unshielded | 150mOhm Max | 8 @ 100MHz | 4GHz | - | Surface Mount | -55°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1054N7S-TFIXED IND 4.7NH 590MA 170MOHM SM |
4,413 |
|
Datasheet |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 590 mA | - | 4.7 nH | Unshielded | 170mOhm Max | 8 @ 100MHz | 4GHz | - | Surface Mount | -55°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1055N1S-TFIXED IND 5.1NH 560MA 190MOHM SM |
4,820 |
|
Datasheet |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 560 mA | - | 5.1 nH | Unshielded | 190mOhm Max | 8 @ 100MHz | 4GHz | - | Surface Mount | -55°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1055N6S-TFIXED IND 5.6NH 550MA 200MOHM SM |
1,862 |
|
Datasheet |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 550 mA | - | 5.6 nH | Unshielded | 200mOhm Max | 8 @ 100MHz | 4GHz | - | Surface Mount | -55°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1057N5J-TFIXED IND 7.5NH 490MA 250MOHM SM |
1,848 |
|
Datasheet |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 490 mA | - | 7.5 nH | Unshielded | 250mOhm Max | 8 @ 100MHz | 3.7GHz | - | Surface Mount | -55°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1058N2J-TFIXED IND 8.2NH 470MA 270MOHM SM |
2,654 |
|
Datasheet |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 470 mA | - | 8.2 nH | Unshielded | 270mOhm Max | 8 @ 100MHz | 3.6GHz | - | Surface Mount | -55°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
|
AQ1059N1J-TFIXED IND 9.1NH 450MA 290MOHM SM |
2,726 |
|
Datasheet |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 450 mA | - | 9.1 nH | Unshielded | 290mOhm Max | 8 @ 100MHz | 3.4GHz | - | Surface Mount | -55°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
PE-53717NLFIXED IND 77UH 1.1A 309 MOHM SMD |
4,670 |
|
Datasheet |
SLIC | Nonstandard | Tray | Active | Toroidal | - | - | 1.1 A | - | 77 µH | Shielded | 309mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | 500 kHz | - | 0.560" L x 0.535" W (14.22mm x 13.59mm) | 0.350" (8.89mm) |
|

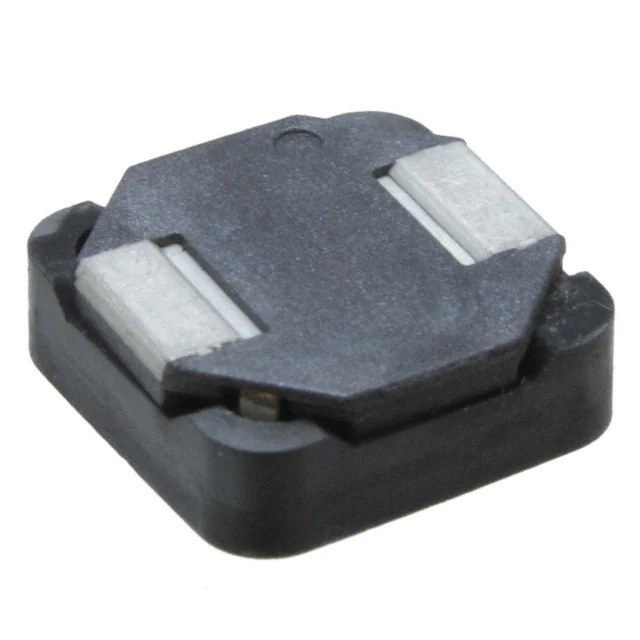

DRA124-R47-RFIXED IND 470NH 15.15A 1.9 MOHM |
2,171 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 15.15 A | 30.8A | 470 nH | Shielded | 1.9mOhm | - | - | AEC-Q200 | Surface Mount | -40°C ~ 165°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
GLF201208T220MFIXED IND 22UH 150MA 3.5 OHM SMD |
3,846 |
|
Datasheet |
GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 150 mA | 80mA | 22 µH | Shielded | 3.5Ohm | - | - | - | Surface Mount | -20°C ~ 105°C | - | - | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
|
GLF201208T2R2MFIXED IND 2.2UH 350MA 560MOHM SM |
3,717 |
|
Datasheet |
GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 350 mA | 220mA | 2.2 µH | Shielded | 560mOhm | - | - | - | Surface Mount | -20°C ~ 105°C | - | - | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
|
GLF201208T470MFIXED IND 47UH 120MA 5.3 OHM SMD |
2,049 |
|
Datasheet |
GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 120 mA | 60mA | 47 µH | Shielded | 5.3Ohm | - | - | - | Surface Mount | -20°C ~ 105°C | - | - | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
|
GLF201208T4R7MFIXED IND 4.7UH 300MA 740MOHM SM |
2,095 |
|
Datasheet |
GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | 160mA | 4.7 µH | Shielded | 740mOhm | - | - | - | Surface Mount | -20°C ~ 105°C | - | - | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
MLF1005A1R5KFIXED IND 1.5UH 10MA 1.3 OHM SMD |
3,327 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 10 mA | - | 1.5 µH | Shielded | 1.3Ohm Max | 25 @ 10MHz | 100MHz | - | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF1005AR68KFIXED IND 680NH 10MA 800MOHM SMD |
1,353 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 10 mA | - | 680 nH | Shielded | 800mOhm Max | 25 @ 10MHz | 150MHz | - | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

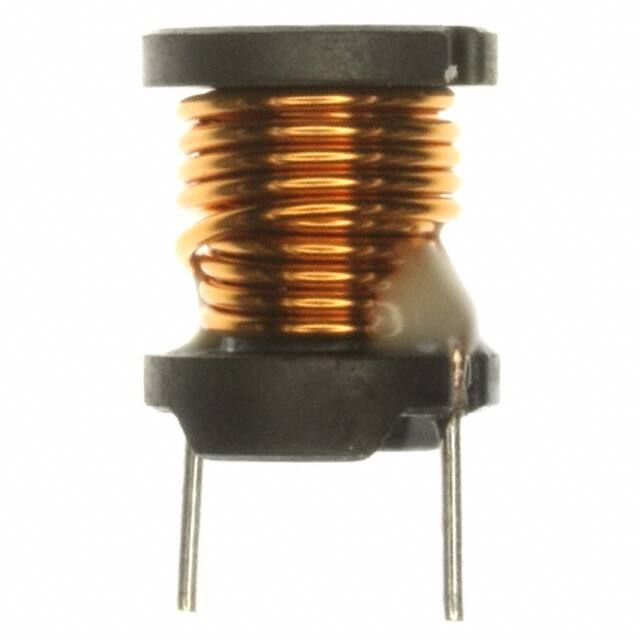

SL1215-100K3R6-PFFIXED IND 10UH 3.6A 19 MOHM TH |
3,783 |
|
Datasheet |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 3.6 A | 9.8A | 10 µH | Unshielded | 19mOhm Max | - | - | - | Through Hole | -40°C ~ 85°C | - | - | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-101K1R5-PFFIXED IND 100UH 1.5A 100 MOHM TH |
1,859 |
|
Datasheet |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 1.5 A | 3.4A | 100 µH | Unshielded | 100mOhm Max | - | - | - | Through Hole | -40°C ~ 85°C | - | - | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|

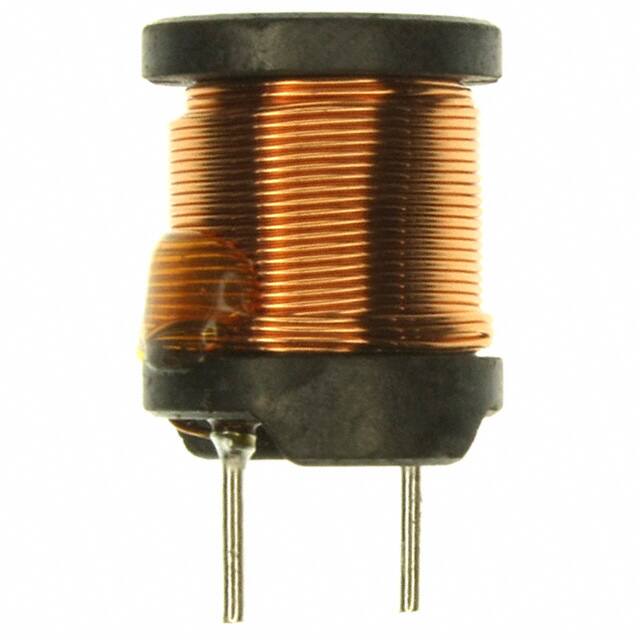

SL1215-102KR51-PFFIXED IND 1MH 510MA 960 MOHM TH |
4,943 |
|
Datasheet |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 510 mA | 1.1A | 1 mH | Unshielded | 960mOhm Max | - | - | - | Through Hole | -40°C ~ 85°C | - | - | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
