| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS4012T-2R2M1R4FIXED IND 2.2UH 1.4A 84 MOHM SMD |
2,328 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.4 A | 1.7A | 2.2 µH | Shielded | 84mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 1 MHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-330MR44FIXED IND 33UH 440MA 816MOHM SMD |
1,166 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 440 mA | 470mA | 33 µH | Shielded | 816mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 1 MHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-3R3M1R2FIXED IND 3.3UH 1.2A 102MOHM SMD |
1,849 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.2 A | 1.4A | 3.3 µH | Shielded | 102mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 1 MHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-6R8M1R0FIXED IND 6.8UH 1A 156 MOHM SMD |
4,747 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1 A | 1A | 6.8 µH | Shielded | 156mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 1 MHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
ELL-6PG220MFIXED IND 22UH 900MA 230MOHM SMD |
1,190 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 900 mA | 800mA | 22 µH | Shielded | 230mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|

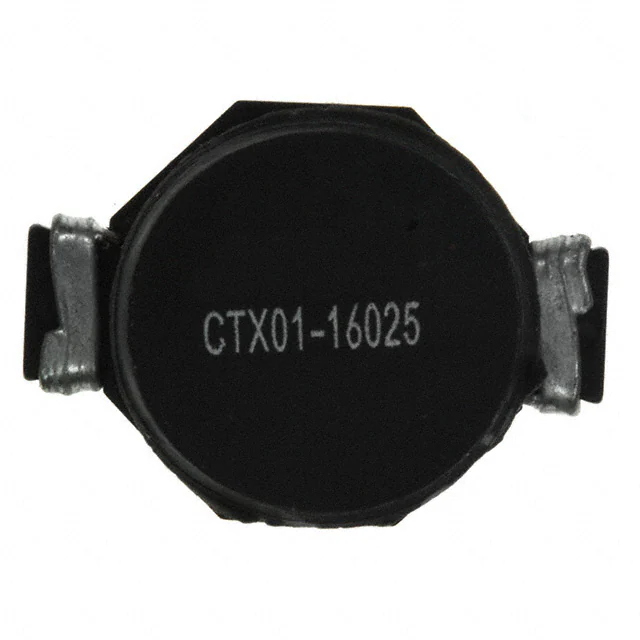

CTX01-16025FIXED IND 120UH 2A 62 MOHM SMD |
2,707 |
|
Datasheet |
CTX | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±25% | 2 A | 1.7A | 120 µH | Unshielded | 62mOhm Max | - | - | - | Surface Mount | -40°C ~ 150°C | - | 100 kHz | - | 0.697" L x 0.506" W (17.70mm x 12.85mm) | 0.297" (7.55mm) |
|
TSL1315RA-152JR68-PFFIXED IND 1.5MH 680MA 1.3 OHM TH |
4,964 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | ±5% | 680 mA | 1A | 1.5 mH | Unshielded | 1.3Ohm Max | 40 @ 252kHz | 830kHz | - | Through Hole | -20°C ~ 85°C | - | 1 kHz | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
SL1215-332KR27-PFFIXED IND 3.3MH 270MA 3.3 OHM TH |
3,703 |
|
Datasheet |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 270 mA | 600mA | 3.3 mH | Unshielded | 3.3Ohm Max | - | - | - | Through Hole | -40°C ~ 85°C | - | - | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
MLF1005DR22KTFIXED IND 220NH 25MA 1.1 OHM SMD |
2,622 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 25 mA | - | 220 nH | Shielded | 1.1Ohm Max | 10 @ 25MHz | 290MHz | - | Surface Mount | -40°C ~ 85°C | - | 25 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF1005AR47KTFIXED IND 470NH 10MA 650MOHM SMD |
1,002 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 10 mA | - | 470 nH | Shielded | 650mOhm Max | 25 @ 10MHz | 190MHz | - | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF1005A1R0KTFIXED IND 1UH 10MA 1 OHM SMD |
4,145 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 10 mA | - | 1 µH | Shielded | 1Ohm Max | 25 @ 10MHz | 120MHz | - | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF1005A1R2KTFIXED IND 1.2UH 10MA 1.1 OHM SMD |
4,720 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 10 mA | - | 1.2 µH | Shielded | 1.1Ohm Max | 25 @ 10MHz | 110MHz | - | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF1005A2R2KTFIXED IND 2.2UH 10MA 1.8 OHM SMD |
2,164 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 10 mA | - | 2.2 µH | Shielded | 1.8Ohm Max | 25 @ 10MHz | 80MHz | - | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
CPL2510T1R0MFIXED IND 1UH 1.2A 117 MOHM SMD |
3,660 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.2A | 1 µH | Shielded | 117mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.039" (1.00mm) |
|
|
CPL2510T2R2MFIXED IND 2.2UH 800MA 175.5 MOHM |
2,809 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 800mA | 2.2 µH | Shielded | 175.5mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.039" (1.00mm) |
|
|
CPL2510T3R3MFIXED IND 3.3UH 700MA 351MOHM SM |
2,064 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 700mA | 3.3 µH | Shielded | 351mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.039" (1.00mm) |
|
|
CPL2510T4R7MFIXED IND 4.7UH 650MA 494MOHM SM |
4,893 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 650 mA | 650mA | 4.7 µH | Shielded | 494mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.039" (1.00mm) |
|
|
CPL2512T100MFIXED IND 10UH 300MA 1.17OHM SMD |
1,275 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | 300mA | 10 µH | Shielded | 1.17Ohm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
|
|
CPL2512T1R0MFIXED IND 1UH 1.3A 117 MOHM SMD |
2,698 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.5A | 1 µH | Shielded | 117mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
|
|
CPL2512T1R5MFIXED IND 1.5UH 1A 156 MOHM SMD |
4,664 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 1.2A | 1.5 µH | Shielded | 156mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
