| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18103CFIXED IND 10UH 3.45A 15 MOHM TH |
1,614 |
|
Datasheet |
1800 | Axial | Bulk | Obsolete | Wirewound | - | ±10% | 3.45 A | - | 10 µH | Unshielded | 15mOhm Max | 64 @ 500kHz | 19MHz | - | Through Hole | 0°C ~ 70°C | - | 500 kHz | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|

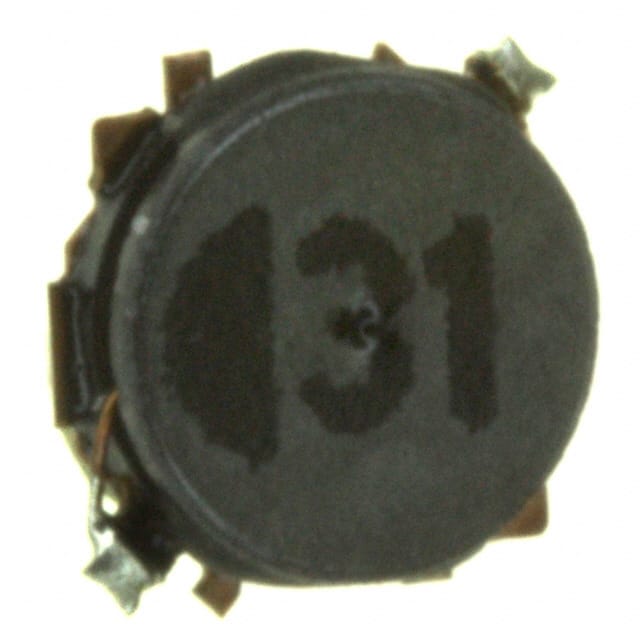

ELL-4FG4R7NAFIXED IND 4.7UH 1A 160 MOHM SMD |
1,026 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1 A | 1A | 4.7 µH | Shielded | 160mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG6R8NAFIXED IND 6.8UH 860MA 220MOHM SM |
3,290 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 860 mA | 800mA | 6.8 µH | Shielded | 220mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG100MAFIXED IND 10UH 750MA 290MOHM SMD |
4,371 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 750 mA | 700mA | 10 µH | Shielded | 290mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG220MAFIXED IND 22UH 500MA 620MOHM SMD |
2,984 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 500 mA | 420mA | 22 µH | Shielded | 620mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG470MAFIXED IND 47UH 330MA 1.6 OHM SMD |
4,808 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 330 mA | 290mA | 47 µH | Shielded | 1.6Ohm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|

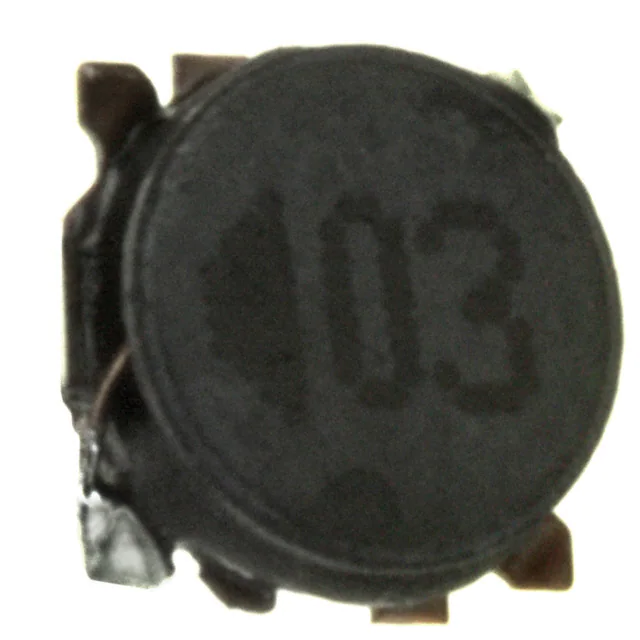

ELL-4GG2R2NFIXED IND 2.2UH 1.4A 88 MOHM SMD |
2,089 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.4 A | 1.7A | 2.2 µH | Shielded | 88mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG3R3NFIXED IND 3.3UH 1.2A 110MOHM SMD |
3,021 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.2 A | 1.5A | 3.3 µH | Shielded | 110mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG4R7NFIXED IND 4.7UH 1A 160 MOHM SMD |
3,838 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1 A | 1.2A | 4.7 µH | Shielded | 160mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG6R8NFIXED IND 6.8UH 930MA 200MOHM SM |
1,128 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 930 mA | 1.05A | 6.8 µH | Shielded | 200mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG100MFIXED IND 10UH 770MA 250MOHM SMD |
1,127 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 770 mA | 900mA | 10 µH | Shielded | 250mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG470MFIXED IND 47UH 350MA 1.25OHM SMD |
1,249 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 350 mA | 400mA | 47 µH | Shielded | 1.25Ohm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
ELL-4LG2R2NAFIXED IND 2.2UH 1.7A 55 MOHM SMD |
1,866 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.7 A | 1.5A | 2.2 µH | Shielded | 55mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

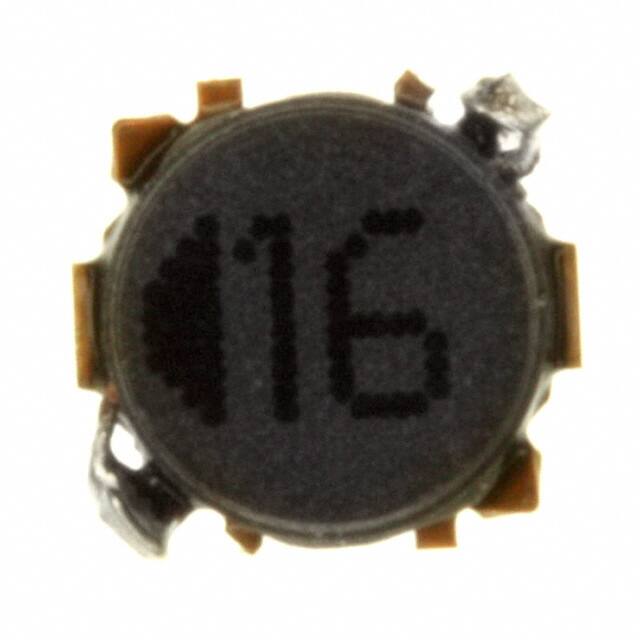

ELL-4LG3R3NAFIXED IND 3.3UH 1.45A 72MOHM SMD |
4,585 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.45 A | 1.3A | 3.3 µH | Shielded | 72mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

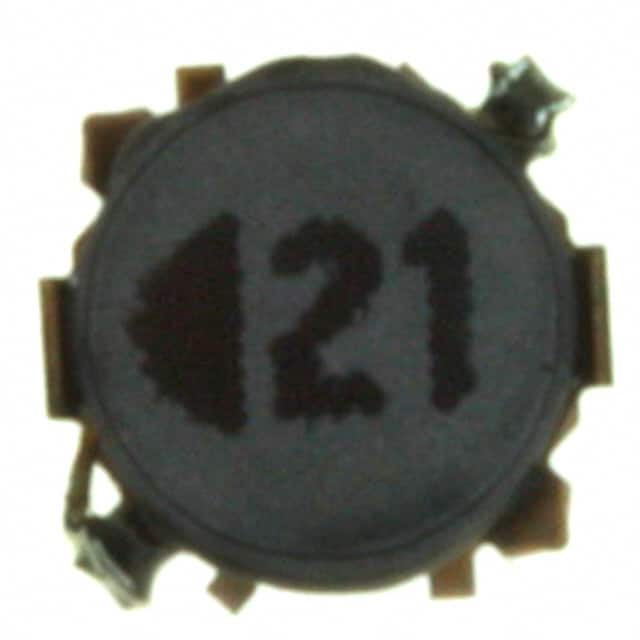

ELL-4LG4R7NAFIXED IND 4.7UH 1.3A 90 MOHM SMD |
4,326 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.3 A | 1.1A | 4.7 µH | Shielded | 90mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
ELL-4LG150MAFIXED IND 15UH 730MA 300MOHM SMD |
2,877 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 730 mA | 620mA | 15 µH | Shielded | 300mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

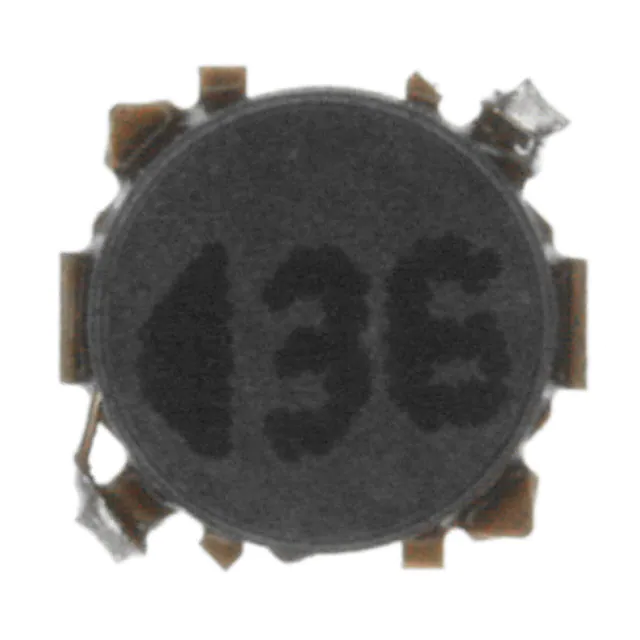

ELL-4LG220MAFIXED IND 22UH 640MA 390MOHM SMD |
4,405 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 640 mA | 550mA | 22 µH | Shielded | 390mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

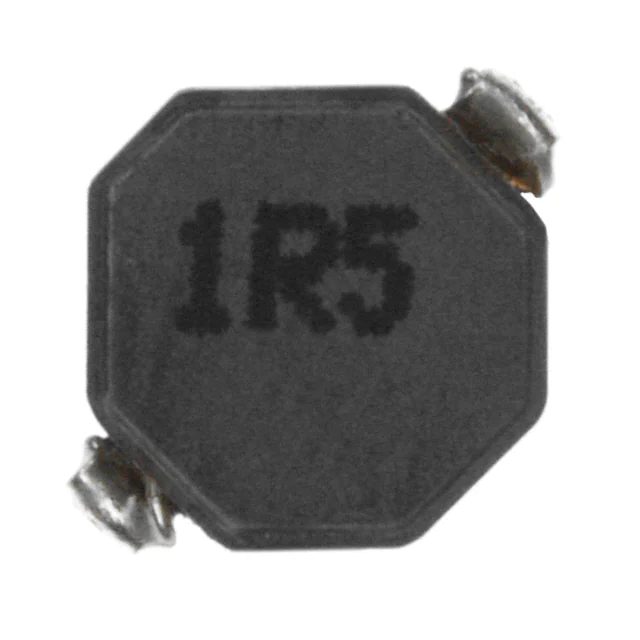

ELL-5PS1R5NFIXED IND 1.5UH 2.4A 28 MOHM SMD |
4,397 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 2.4 A | 2.4A | 1.5 µH | Shielded | 28mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

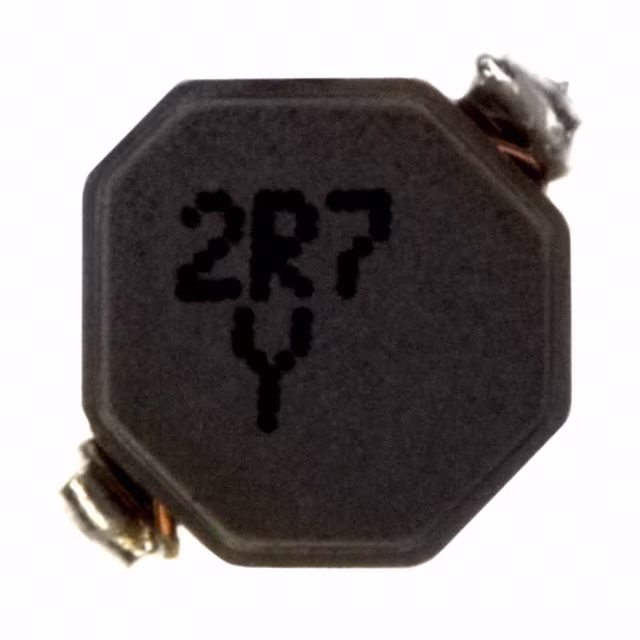

ELL-5PS2R7NFIXED IND 2.7UH 2.05A 40MOHM SMD |
3,769 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 2.05 A | 2A | 2.7 µH | Shielded | 40mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ELL-5PS100MFIXED IND 10UH 1.1A 120 MOHM SMD |
4,655 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.1 A | 1A | 10 µH | Shielded | 120mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
