| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

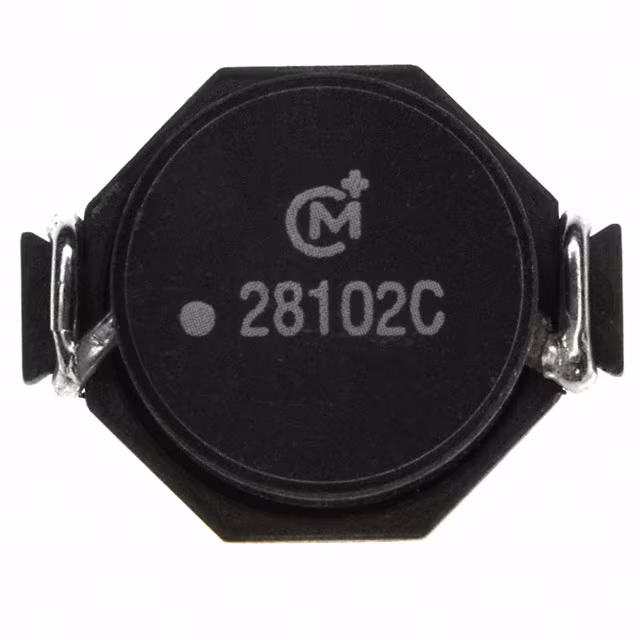

28102CFIXED IND 1UH 15.5A 2.6 MOHM SMD |
4,138 |
|
Datasheet |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 15.5 A | - | 1 µH | Unshielded | 2.6mOhm Max | 45.6 @ 1MHz | 104MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

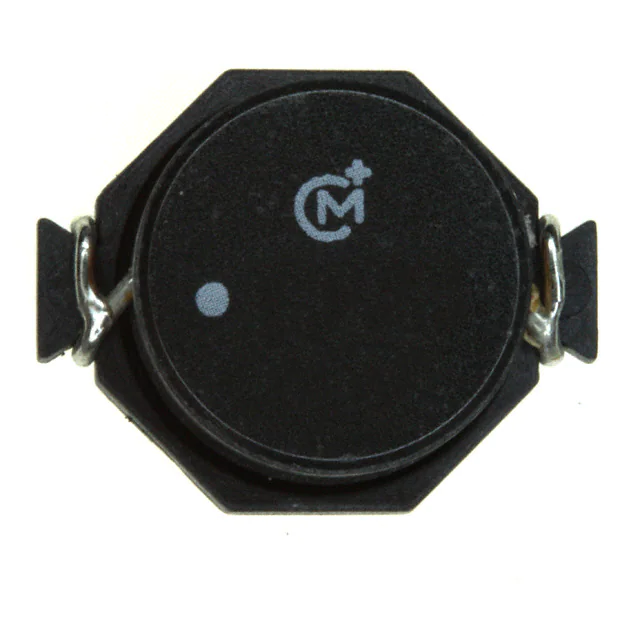

28103CFIXED IND 10UH 5.9A 18 MOHM SMD |
2,342 |
|
Datasheet |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 5.9 A | - | 10 µH | Unshielded | 18mOhm Max | 31.1 @ 1MHz | 22.5MHz | - | Surface Mount | -40°C ~ 125°C | - | 10 kHz | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

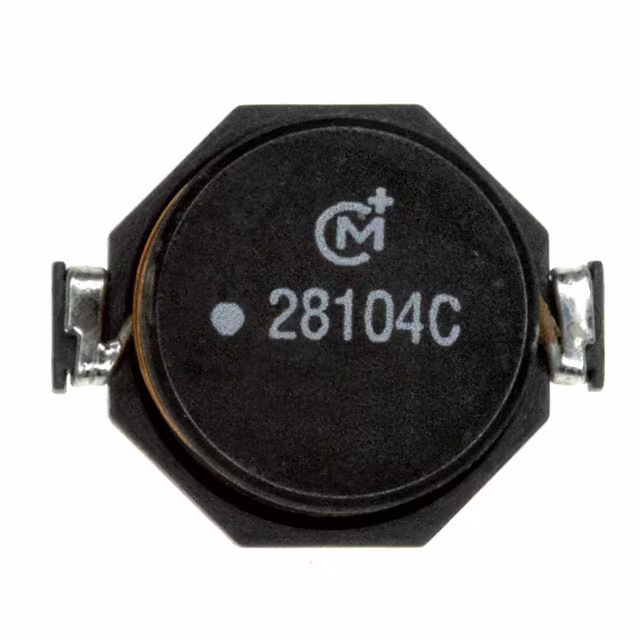

28104CFIXED IND 100UH 1.8A 174MOHM SMD |
2,296 |
|
Datasheet |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 1.8 A | - | 100 µH | Unshielded | 174mOhm Max | 21.4 @ 800kHz | 7.7MHz | - | Surface Mount | -40°C ~ 125°C | - | 800 kHz | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

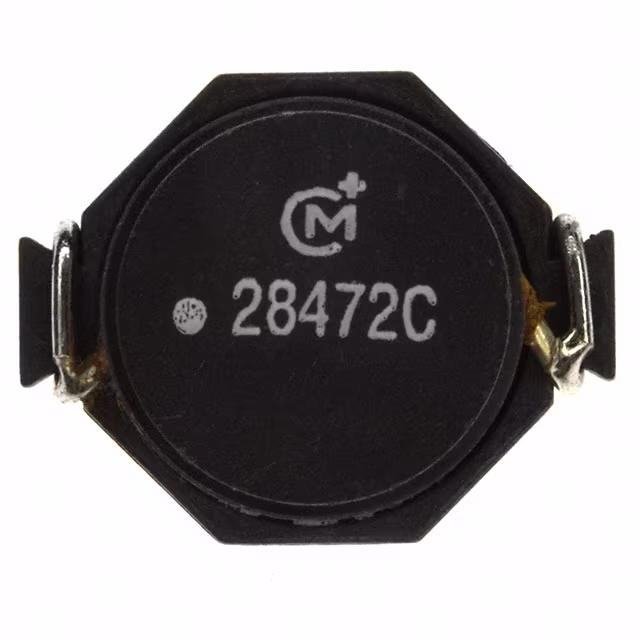

28472CFIXED IND 4.7UH 8.3A 10 MOHM SMD |
3,455 |
|
Datasheet |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 8.3 A | - | 4.7 µH | Unshielded | 10mOhm Max | 33.3 @ 1MHz | 37MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
28473CFIXED IND 47UH 2.66A 86 MOHM SMD |
1,389 |
|
Datasheet |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 2.66 A | - | 47 µH | Unshielded | 86mOhm Max | 31.5 @ 1MHz | 10.4MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

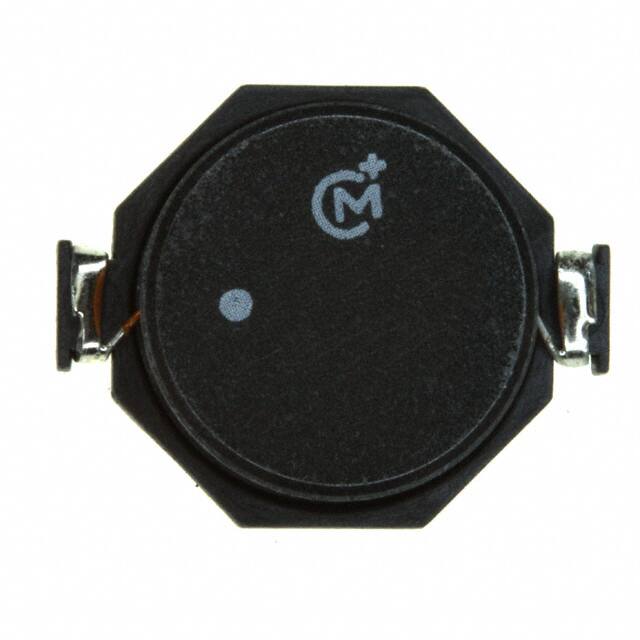

28474CFIXED IND 470UH 780MA 816MOHM SM |
3,579 |
|
Datasheet |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 780 mA | - | 470 µH | Unshielded | 816mOhm Max | 31.7 @ 800kHz | 4.3MHz | - | Surface Mount | -40°C ~ 125°C | - | 800 kHz | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

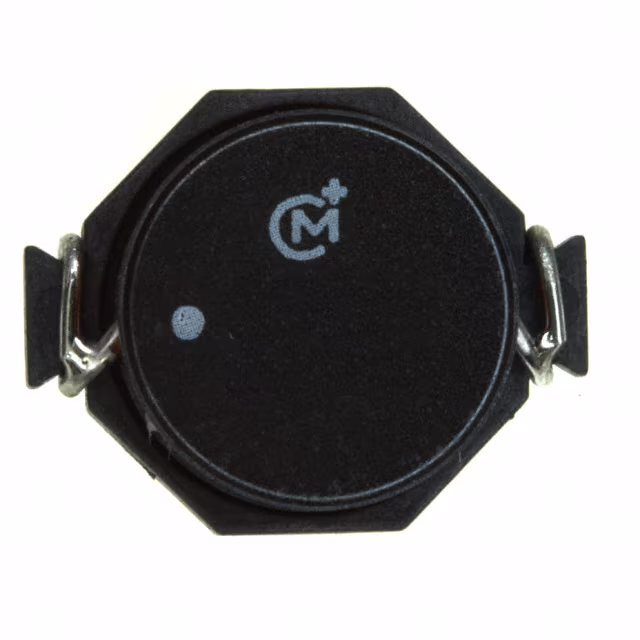

28682CFIXED IND 6.8UH 6.8A 14 MOHM SMD |
4,727 |
|
Datasheet |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 6.8 A | - | 6.8 µH | Unshielded | 14mOhm Max | 31.2 @ 1MHz | 29MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

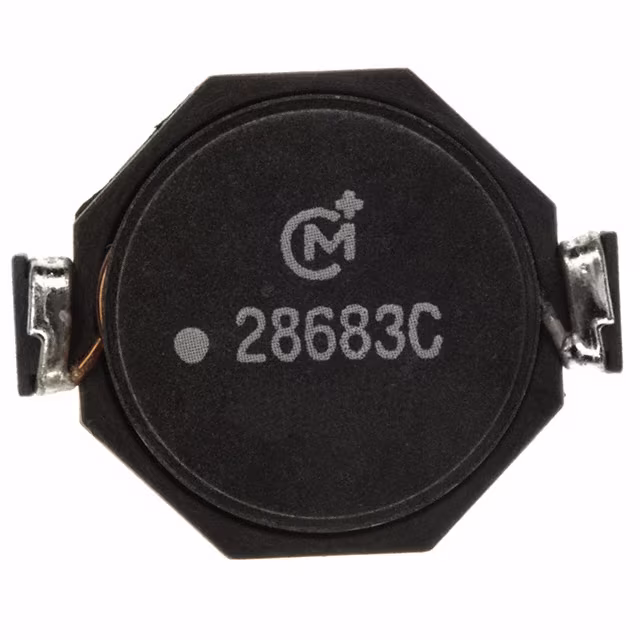

28683CFIXED IND 68UH 2.16A 122MOHM SMD |
3,901 |
|
Datasheet |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 2.16 A | - | 68 µH | Unshielded | 122mOhm Max | 33.9 @ 1MHz | 8.6MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
35112CFIXED IND 1.1UH 8A 15 MOHM SMD |
4,324 |
|
Datasheet |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±25% | 8 A | - | 1.1 µH | Unshielded | 15mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|
35152CFIXED IND 1.5UH 6.5A 19 MOHM SMD |
4,918 |
|
Datasheet |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±25% | 6.5 A | - | 1.5 µH | Unshielded | 19mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|
35251CFIXED IND 250NH 15.5A 4.5MOHM SM |
2,619 |
|
Datasheet |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±25% | 15.5 A | - | 250 nH | Unshielded | 4.5mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|

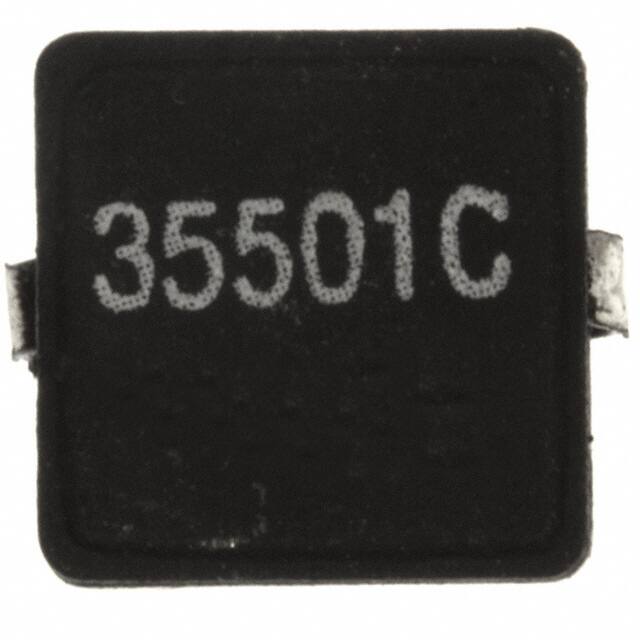

35501CFIXED IND 500NH 11.5A 7 MOHM SMD |
1,341 |
|
Datasheet |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±25% | 11.5 A | - | 500 nH | Unshielded | 7mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|
35801CFIXED IND 800NH 9.5A 10 MOHM SMD |
1,846 |
|
Datasheet |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±25% | 9.5 A | - | 800 nH | Unshielded | 10mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|
18473CFIXED IND 47UH 1.65A 55 MOHM TH |
4,210 |
|
Datasheet |
1800 | Axial | Bulk | Obsolete | Wirewound | - | ±10% | 1.65 A | - | 47 µH | Unshielded | 55mOhm Max | 55 @ 500kHz | 8.5MHz | - | Through Hole | 0°C ~ 70°C | - | 500 kHz | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18334CFIXED IND 330UH 730MA 335MOHM TH |
2,514 |
|
Datasheet |
1800 | Axial | Bulk | Obsolete | Wirewound | - | ±10% | 730 mA | - | 330 µH | Unshielded | 335mOhm Max | 58 @ 100kHz | 3MHz | - | Through Hole | 0°C ~ 70°C | - | 100 kHz | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18224CFIXED IND 220UH 900MA 230MOHM TH |
2,937 |
|
Datasheet |
1800 | Axial | Bulk | Obsolete | Wirewound | - | ±10% | 900 mA | - | 220 µH | Unshielded | 230mOhm Max | 46 @ 100kHz | 3.5MHz | - | Through Hole | 0°C ~ 70°C | - | 100 kHz | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18223CFIXED IND 22UH 2.42A 25 MOHM TH |
2,146 |
|
Datasheet |
1800 | Axial | Bulk | Obsolete | Wirewound | - | ±10% | 2.42 A | - | 22 µH | Unshielded | 25mOhm Max | 59 @ 500kHz | 11.8MHz | - | Through Hole | 0°C ~ 70°C | - | 500 kHz | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18153CFIXED IND 15UH 3A 18 MOHM TH |
4,918 |
|
Datasheet |
1800 | Axial | Bulk | Obsolete | Wirewound | - | ±10% | 3 A | - | 15 µH | Unshielded | 18mOhm Max | 55 @ 500kHz | 15.9MHz | - | Through Hole | 0°C ~ 70°C | - | 500 kHz | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18105CFIXED IND 1MH 440MA 1 OHM TH |
1,154 |
|
Datasheet |
1800 | Axial | Bulk | Obsolete | Wirewound | - | ±10% | 440 mA | - | 1 mH | Unshielded | 1Ohm Max | 94 @ 50kHz | 1.6MHz | - | Through Hole | 0°C ~ 70°C | - | 50 kHz | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18104CFIXED IND 100UH 1.2A 100 MOHM TH |
2,015 |
|
Datasheet |
1800 | Axial | Bulk | Obsolete | Wirewound | - | ±10% | 1.2 A | - | 100 µH | Unshielded | 100mOhm Max | 40 @ 100kHz | 7.4MHz | - | Through Hole | 0°C ~ 70°C | - | 100 kHz | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
