| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

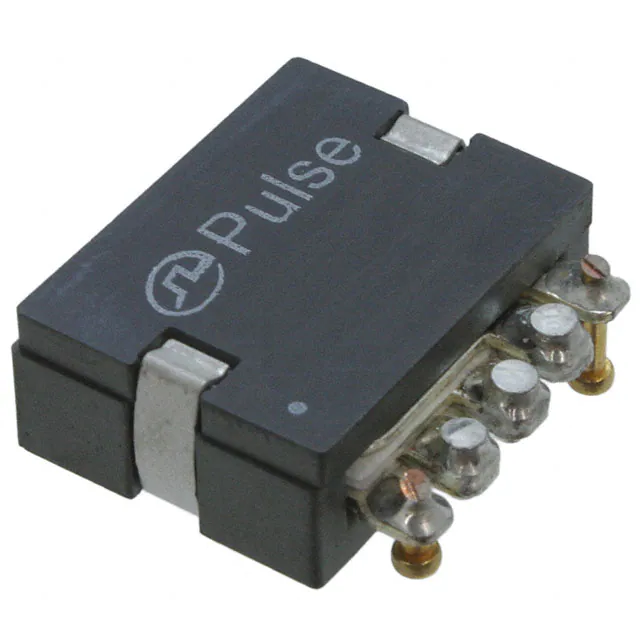

PA1393.352NLFIXED IND 3.5UH 12A 1.43 MOHM |
1,941 |
|
Datasheet |
PA1393NL | Nonstandard | Tray | Active | Planar | - | ±15% | 12 A | 15A | 3.5 µH | Shielded | 1.43mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
PF0382.333NLTFIXED IND 33UH 3.1A 65 MOHM SMD |
4,347 |
|
Datasheet |
PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.1 A | 4.3A | 33 µH | Unshielded | 65mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
|
PF0382.154NLTFIXED IND 150UH 1.2A 280MOHM SMD |
2,911 |
|
Datasheet |
PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.2 A | 2.1A | 150 µH | Unshielded | 280mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
|
PG0015.224NLTFIXED IND 220UH 660MA 730MOHM SM |
4,515 |
|
Datasheet |
PG0015NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 660 mA | 660mA | 220 µH | Unshielded | 730mOhm Max | - | 4MHz | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.400" L x 0.360" W (10.15mm x 9.15mm) | 0.219" (5.55mm) |
|
PF0464.823NLTFIXED IND 82UH 600MA 370MOHM SMD |
4,843 |
|
Datasheet |
PF0464NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 600 mA | 600mA | 82 µH | Shielded | 370mOhm Max | - | 11MHz | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|
|
PG0063.104NLTFIXED IND 100UH 400MA 1.205 OHM |
1,670 |
|
Datasheet |
PG0063 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 400 mA | 400mA | 100 µH | Unshielded | 1.205Ohm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.098" (2.50mm) |
|
|
PE-53692NLTFIXED IND 3.5UH 12.4A 6.6MOHM SM |
4,823 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | - | 12.4 A | - | 3.5 µH | Unshielded | 6.6mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.390" (9.91mm) |
|
|
PF0382.224NLTFIXED IND 220UH 1.1A 360MOHM SMD |
2,105 |
|
Datasheet |
PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.1 A | 1.7A | 220 µH | Unshielded | 360mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
|
PF0382.104NLTFIXED IND 100UH 1.5A 200MOHM SMD |
3,055 |
|
Datasheet |
PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.5 A | 2.6A | 100 µH | Unshielded | 200mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
|
PB2020.681NLTFIXED IND 680NH 30A 1.8 MOHM SMD |
3,960 |
|
Datasheet |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 30 A | 70A | 680 nH | Unshielded | 1.8mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PG0087.224NLTFIXED IND 220UH 250MA 2.7OHM SMD |
1,638 |
|
Datasheet |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 250 mA | 250mA | 220 µH | Shielded | 2.7Ohm Max | - | 7MHz | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
PG0087.505NLTFIXED IND 5MH 25MA 64.2 OHM SMD |
3,311 |
|
Datasheet |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 25 mA | 25mA | 5 mH | Shielded | 64.2Ohm Max | - | 1.1MHz | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
PG0087.305NLTFIXED IND 3MH 38MA 31.53 OHM SMD |
2,640 |
|
Datasheet |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 38 mA | 38mA | 3 mH | Shielded | 31.53Ohm Max | - | 1.6MHz | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
PG0087.205NLTFIXED IND 2MH 50MA 24.9 OHM SMD |
2,267 |
|
Datasheet |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 50 mA | 50mA | 2 mH | Shielded | 24.9Ohm Max | - | 1.9MHz | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
P0762.473NLTFIXED IND 47UH 800MA 390MOHM SMD |
2,418 |
|
Datasheet |
P0762NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 800 mA | 1A | 47 µH | Unshielded | 390mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
PG0084.351NLTFIXED IND 350NH 40A 1.8 MOHM SMD |
4,289 |
|
Datasheet |
PG0084NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 40 A | 40A | 350 nH | Unshielded | 1.8mOhm Max | - | - | - | Surface Mount | -40°C ~ 95°C | - | 100 kHz | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.173" (4.40mm) |
|
PE-0805CM221GTTFIXED IND 220NH 300MA 850MOHM SM |
1,190 |
|
Datasheet |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 300 mA | - | 220 nH | Unshielded | 850mOhm Max | 45 @ 250MHz | 800MHz | - | Surface Mount | -40°C ~ 125°C | - | 100 MHz | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
PE-0402CD680JTGFIXED IND 68NH 100MA 970MOHM SMD |
4,083 |
|
Datasheet |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 100 mA | - | 68 nH | Unshielded | 970mOhm Max | 16 @ 250MHz | 1.84GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0402 (1005 Metric) | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.61mm) |
|
|
PE-0805FT683KTTFIXED IND 68UH 49MA 17.5 OHM SMD |
3,845 |
|
Datasheet |
0805FT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 49 mA | - | 68 µH | Unshielded | 17.5Ohm Max | 8 @ 2.52MHz | 11MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
PE-0402CD150KTGFIXED IND 15NH 560MA 172MOHM SMD |
1,978 |
|
Datasheet |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 560 mA | - | 15 nH | Unshielded | 172mOhm Max | 26 @ 250MHz | 3.28GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0402 (1005 Metric) | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.61mm) |
