| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

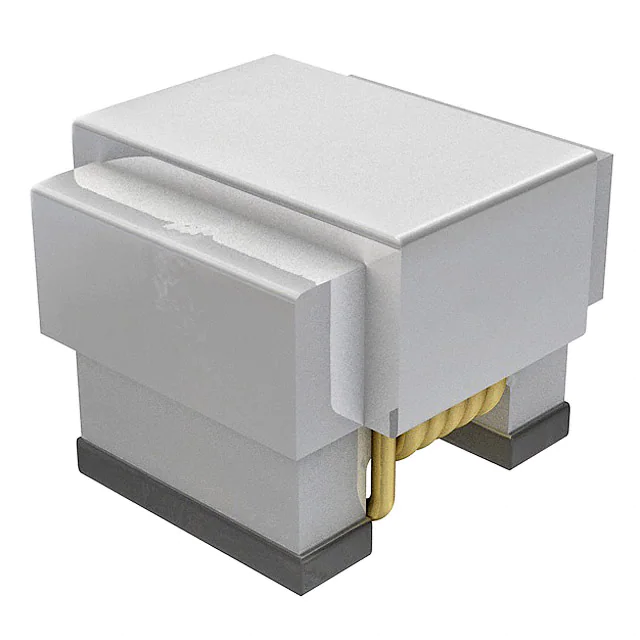

PE-0805CD152GTTFIXED IND 1.5UH 100MA 5 OHM SMD |
2,147 |
|
Datasheet |
0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±2% | 100 mA | - | 1.5 µH | Unshielded | 5Ohm Max | 20 @ 50MHz | 200MHz | - | Surface Mount | -40°C ~ 125°C | - | 25 MHz | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
PE-0805CD910GTTFIXED IND 91NH 400MA 440MOHM SMD |
1,422 |
|
Datasheet |
0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±2% | 400 mA | - | 91 nH | Unshielded | 440mOhm Max | 65 @ 500MHz | 1.2GHz | - | Surface Mount | -40°C ~ 125°C | - | 150 MHz | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
.jpg)
|
PE-1008CM271JTTFIXED IND 270NH 500MA 500MOHM SM |
3,669 |
|
Datasheet |
1008CM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 500 mA | - | 270 nH | Unshielded | 500mOhm Max | 45 @ 100MHz | 525MHz | - | Surface Mount | -40°C ~ 125°C | - | 25 MHz | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
GLFR1608T101M-LRFIXED IND 100UH 80MA 5.5 OHM SMD |
1,078 |
|
Datasheet |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 80 mA | 15mA | 100 µH | Shielded | 5.5Ohm | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

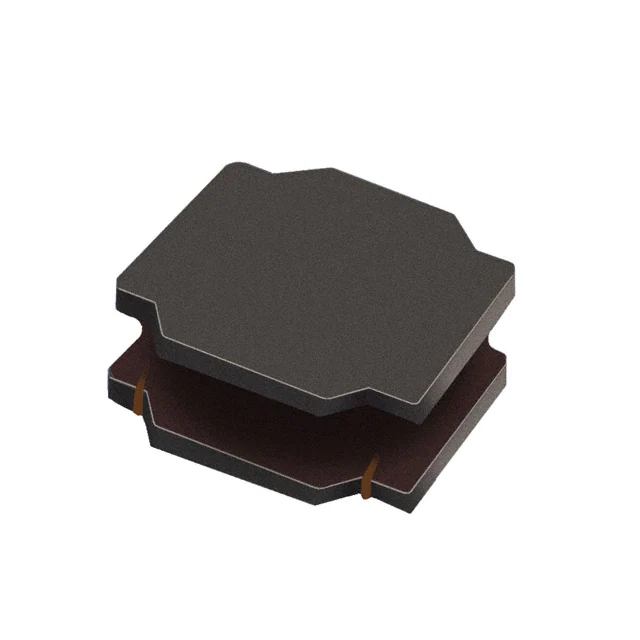

LQH88PN1R5N38LFIXED IND 1.5UH 7.1A 8 MOHM SMD |
1,387 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 7.1 A | 8.5A | 1.5 µH | Shielded | 8mOhm | - | 60MHz | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
GLFR1608T6R8M-LRFIXED IND 6.8UH 400MA 350MOHM SM |
2,698 |
|
Datasheet |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 400 mA | 90mA | 6.8 µH | Shielded | 350mOhm | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
ELJ-PA2R2MF2FIXED IND 2.2UH 800MA 170MOHM SM |
4,333 |
|
Datasheet |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±20% | 800 mA | 800mA | 2.2 µH | Unshielded | 170mOhm | - | 70MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA4R7MF2FIXED IND 4.7UH 700MA 230MOHM SM |
4,569 |
|
Datasheet |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±20% | 700 mA | 580mA | 4.7 µH | Unshielded | 230mOhm | - | 35MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA220KF2FIXED IND 22UH 420MA 660MOHM SMD |
4,846 |
|
Datasheet |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 420 mA | 290mA | 22 µH | Unshielded | 660mOhm | - | 15MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA330KF2FIXED IND 33UH 330MA 1.05OHM SMD |
1,526 |
|
Datasheet |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 330 mA | 240mA | 33 µH | Unshielded | 1.05Ohm | - | 12MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA470KF2FIXED IND 47UH 260MA 1.75OHM SMD |
4,093 |
|
Datasheet |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 260 mA | 200mA | 47 µH | Unshielded | 1.75Ohm | - | 9.5MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA101KF2FIXED IND 100UH 175MA 3.9OHM SMD |
2,885 |
|
Datasheet |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 175 mA | 130mA | 100 µH | Unshielded | 3.9Ohm | - | 6.5MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA221KF2FIXED IND 220UH 115MA 8.7OHM SMD |
1,147 |
|
Datasheet |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 115 mA | 85mA | 220 µH | Unshielded | 8.7Ohm | - | 4MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA100KF2FIXED IND 10UH 590MA 350MOHM SMD |
4,082 |
|
Datasheet |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 590 mA | 400mA | 10 µH | Unshielded | 350mOhm | - | 23MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ATFC-0603-1N5-BTFIXED IND 1.5NH 800MA 350MOHM SM |
3,967 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±0.1nH | 800 mA | - | 1.5 nH | Unshielded | 350mOhm Max | 15 @ 300MHz | 10GHz | - | Surface Mount | -25°C ~ 85°C | - | 300 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
ATFC-0603-2N7-BTFIXED IND 2.7NH 300MA 450MOHM SM |
2,590 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±0.1nH | 300 mA | - | 2.7 nH | Unshielded | 450mOhm Max | 15 @ 300MHz | 6GHz | - | Surface Mount | -25°C ~ 85°C | - | 300 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
ATFC-0603-6N8-BTFIXED IND 6.8NH 300MA 750MOHM SM |
4,050 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±0.1nH | 300 mA | - | 6.8 nH | Unshielded | 750mOhm Max | 15 @ 300MHz | 5GHz | - | Surface Mount | -25°C ~ 85°C | - | 300 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
ATFC-0603-12N-FTFIXED IND 12NH 300MA 1.05OHM SMD |
3,482 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±1% | 300 mA | - | 12 nH | Unshielded | 1.05Ohm Max | 15 @ 300MHz | 3GHz | - | Surface Mount | -25°C ~ 85°C | - | 300 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
ATFC-0603-15N-FTFIXED IND 15NH 300MA 1.35OHM SMD |
4,260 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±1% | 300 mA | - | 15 nH | Unshielded | 1.35Ohm Max | 15 @ 300MHz | 3GHz | - | Surface Mount | -25°C ~ 85°C | - | 300 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
ATFC-0603-22N-FTFIXED IND 22NH 250MA 1.95OHM SMD |
1,855 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±1% | 250 mA | - | 22 nH | Unshielded | 1.95Ohm Max | 15 @ 300MHz | 2GHz | - | Surface Mount | -25°C ~ 85°C | - | 300 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
