| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0016.102NLFIXED IND 1UH 4.5A 13 MOHM SMD |
4,944 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 4.5 A | 6.8A | 1 µH | Unshielded | 13mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.103NLFIXED IND 10UH 1.5A 80 MOHM SMD |
4,533 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 1.5 A | 2.3A | 10 µH | Unshielded | 80mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.154NLFIXED IND 150UH 400MA 1.25OHM SM |
2,837 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 400 mA | 550mA | 150 µH | Unshielded | 1.25Ohm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.331NLFIXED IND 330NH 8.5A 4.3MOHM SMD |
3,583 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 8.5 A | 13A | 330 nH | Unshielded | 4.3mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.332NLFIXED IND 3.3UH 2.6A 30 MOHM SMD |
4,406 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 2.6 A | 4A | 3.3 µH | Unshielded | 30mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.472NLFIXED IND 4.7UH 2.3A 34 MOHM SMD |
2,282 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 2.3 A | 3.3A | 4.7 µH | Unshielded | 34mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.561NLFIXED IND 560NH 6.6A 6.5MOHM SMD |
1,193 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 6.6 A | 10A | 560 nH | Unshielded | 6.5mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.681NLFIXED IND 680NH 6A 7 MOHM SMD |
2,118 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 6 A | 8A | 680 nH | Unshielded | 7mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.821NLFIXED IND 820NH 6A 11 MOHM SMD |
2,013 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 6 A | 7.8A | 820 nH | Unshielded | 11mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.822NLFIXED IND 8.2UH 1.7A 60 MOHM SMD |
2,710 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 1.7 A | 2.6A | 8.2 µH | Unshielded | 60mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
AIAP-03-4R7KFIXED IND 4.7UH 13.9A 8 MOHM TH |
2,510 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | ±10% | 13.9 A | - | 4.7 µH | Unshielded | 8mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-5R6KFIXED IND 5.6UH 12.6A 11 MOHM TH |
3,423 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | ±10% | 12.6 A | - | 5.6 µH | Unshielded | 11mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
70F274AI-RCFIXED IND 270UH 106MA 13.2OHM TH |
4,584 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 106 mA | - | 270 µH | Unshielded | 13.2Ohm Max | 46 @ 790kHz | 2.5MHz | - | Through Hole | -55°C ~ 105°C | - | 790 kHz | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|
|
70F916AI-RCFIXED IND 9.1UH 288MA 1.44OHM TH |
3,653 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 288 mA | - | 9.1 µH | Unshielded | 1.44Ohm Max | 41 @ 7.9MHz | 21MHz | - | Through Hole | -55°C ~ 105°C | - | 7.9 MHz | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
|
70F393AI-RCFIXED IND 3.9MH 51MA 57.6 OHM TH |
3,512 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 51 mA | - | 3.9 mH | Unshielded | 57.6Ohm Max | 53 @ 250kHz | 760kHz | - | Through Hole | -55°C ~ 105°C | - | 250 kHz | - | 0.270" Dia x 0.380" L (6.86mm x 9.65mm) | - |
|
|
70F394AI-RCFIXED IND 390UH 97MA 15.8 OHM TH |
1,602 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 97 mA | - | 390 µH | Unshielded | 15.8Ohm Max | 45 @ 790kHz | 2MHz | - | Through Hole | -55°C ~ 105°C | - | 790 kHz | - | 0.180" Dia x 0.250" L (4.57mm x 6.35mm) | - |
|

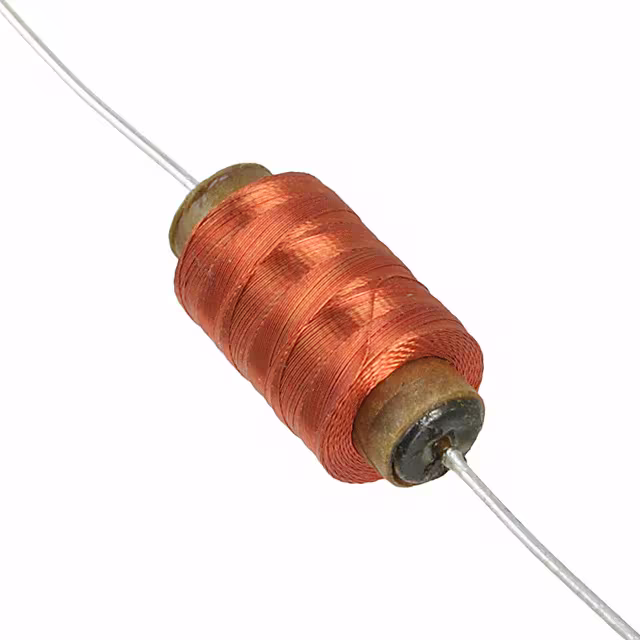

70F121AF-RCFIXED IND 120MH 48MA 288 OHM TH |
4,475 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 48 mA | - | 120 mH | Unshielded | 288Ohm Max | 46 @ 25kHz | 84kHz | - | Through Hole | -55°C ~ 105°C | - | 25 kHz | - | 0.480" Dia x 0.880" L (12.20mm x 22.35mm) | - |
|
|
70F124AI-RCFIXED IND 120UH 135MA 8.16OHM TH |
4,567 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 135 mA | - | 120 µH | Unshielded | 8.16Ohm Max | 40 @ 790kHz | 3.2MHz | - | Through Hole | -55°C ~ 105°C | - | 790 kHz | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F504AI-RCFIXED IND 500UH 91MA 18 OHM TH |
4,413 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 91 mA | - | 500 µH | Unshielded | 18Ohm Max | 49 @ 790kHz | 1.8MHz | - | Through Hole | -55°C ~ 105°C | - | 790 kHz | - | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) | - |
|
70F822AF-RCFIXED IND 82MH 32MA 238 OHM TH |
3,366 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 32 mA | - | 82 mH | Unshielded | 238Ohm Max | 50 @ 79kHz | 168kHz | - | Through Hole | -55°C ~ 105°C | - | 79 kHz | - | 0.430" Dia x 0.630" L (10.92mm x 16.00mm) | - |
