| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC10F-331FIXED IND 330UH 780MA 1 OHM SMD |
4,570 |
|
Datasheet |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 780 mA | 530mA | 330 µH | Unshielded | 1Ohm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | 0.197" (5.00mm) |
|
|
SC10F-391FIXED IND 390UH 720MA 1.09OHM SM |
3,913 |
|
Datasheet |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 720 mA | 490mA | 390 µH | Unshielded | 1.09Ohm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | 0.197" (5.00mm) |
|
|
SC10F-471FIXED IND 470UH 640MA 1.25OHM SM |
4,855 |
|
Datasheet |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 640 mA | 460mA | 470 µH | Unshielded | 1.25Ohm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | 0.197" (5.00mm) |
|
|
SC10F-821FIXED IND 820UH 500MA 2.44OHM SM |
3,538 |
|
Datasheet |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 500 mA | 340mA | 820 µH | Unshielded | 2.44Ohm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | 0.197" (5.00mm) |
|

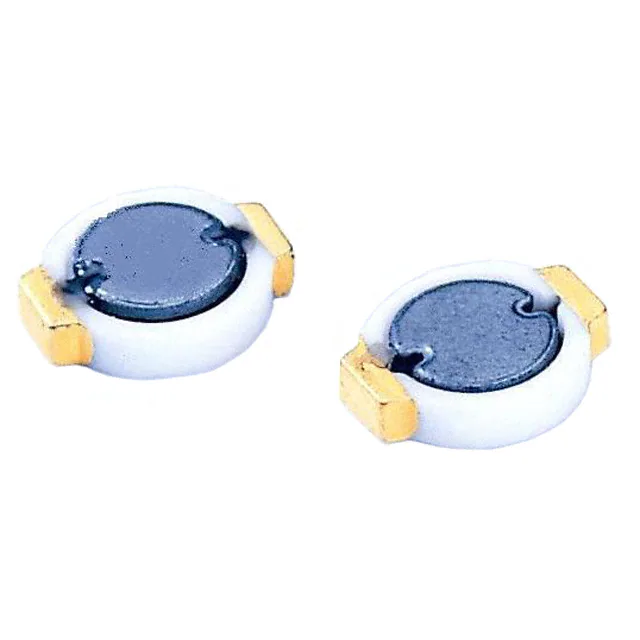

SC1606-150FIXED IND 15UH 880MA 400MOHM SMD |
2,123 |
|
Datasheet |
SC1606 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 880 mA | 800mA | 15 µH | Unshielded | 400mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.256" L x 0.220" W (6.50mm x 5.60mm) | 0.071" (1.80mm) |
|
|
SC1606-1R0FIXED IND 1UH 2.45A 90 MOHM SMD |
3,003 |
|
Datasheet |
SC1606 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2.45 A | 2.5A | 1 µH | Unshielded | 90mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.256" L x 0.220" W (6.50mm x 5.60mm) | 0.071" (1.80mm) |
|
|
SC1606-2R2FIXED IND 2.2UH 1.78A 110MOHM SM |
3,646 |
|
Datasheet |
SC1606 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.78 A | 1.8A | 2.2 µH | Unshielded | 110mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.256" L x 0.220" W (6.50mm x 5.60mm) | 0.071" (1.80mm) |
|
SC1608F-100FIXED IND 10UH 1.1A 160 MOHM SMD |
4,222 |
|
Datasheet |
SC1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.1 A | 1.1A | 10 µH | Unshielded | 160mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SC1608F-1R5FIXED IND 1.5UH 2.8A 50 MOHM SMD |
1,173 |
|
Datasheet |
SC1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 2.8 A | 2.6A | 1.5 µH | Unshielded | 50mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SC1608F-4R7FIXED IND 4.7UH 1.8A 90 MOHM SMD |
4,200 |
|
Datasheet |
SC1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 1.8 A | 1.5A | 4.7 µH | Unshielded | 90mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SC1608F-6R8FIXED IND 6.8UH 1.5A 130MOHM SMD |
4,482 |
|
Datasheet |
SC1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 1.5 A | 1.2A | 6.8 µH | Unshielded | 130mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SC43B-1R0FIXED IND 1UH 3.1A 48 MOHM SMD |
4,810 |
|
Datasheet |
SC43B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 3.1 A | 2.56A | 1 µH | Unshielded | 48mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 7.96 MHz | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
SC43B-6R8FIXED IND 6.8UH 1.55A 131MOHM SM |
1,604 |
|
Datasheet |
SC43B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.55 A | 1A | 6.8 µH | Unshielded | 131mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 7.96 MHz | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|

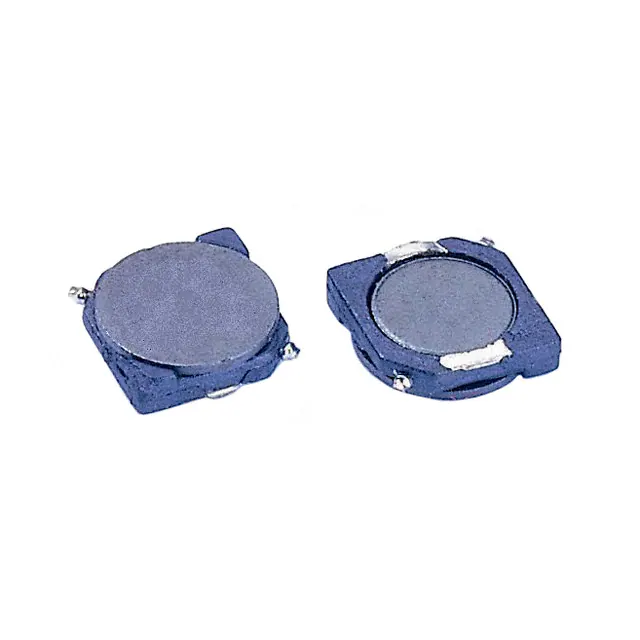

SC511MF-180FIXED IND 18UH 800MA 420MOHM SMD |
4,590 |
|
Datasheet |
SC511MF | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 800 mA | 420mA | 18 µH | Shielded | 420mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.051" (1.30mm) |
|
SC53FU-221FIXED IND 220UH 310MA 2.78OHM SM |
1,139 |
|
Datasheet |
SC53FU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 310 mA | 300mA | 220 µH | Unshielded | 2.78Ohm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.126" (3.20mm) |
|

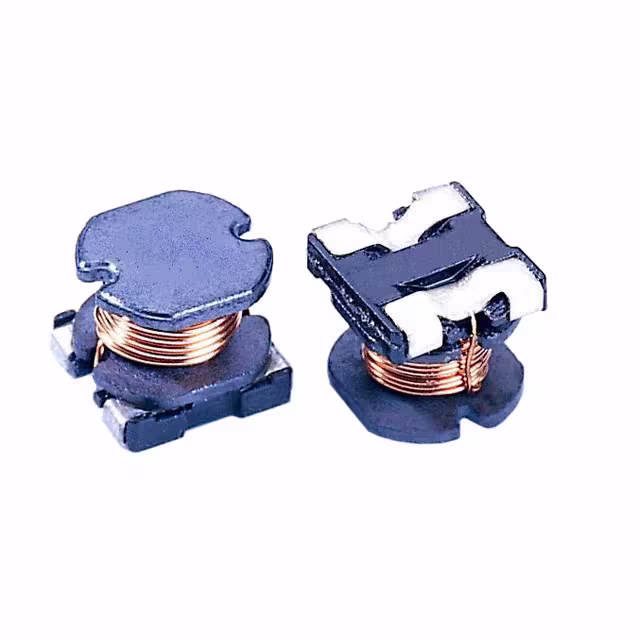

SC54B-390FIXED IND 39UH 1.2A 320 MOHM SMD |
2,924 |
|
Datasheet |
SC54B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.2 A | 800mA | 39 µH | Unshielded | 320mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | 0.191" (4.85mm) |
|
SC62LCB-100FIXED IND 10UH 1.41A 134MOHM SMD |
2,206 |
|
Datasheet |
SC62LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.41 A | 1.22A | 10 µH | Shielded | 134mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.079" (2.00mm) |
|
|
SC62LCB-270FIXED IND 27UH 890MA 344MOHM SMD |
1,258 |
|
Datasheet |
SC62LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 890 mA | 650mA | 27 µH | Shielded | 344mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.079" (2.00mm) |
|
|
SC62LCB-8R2FIXED IND 8.2UH 1.57A 106MOHM SM |
2,672 |
|
Datasheet |
SC62LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.57 A | 1.25A | 8.2 µH | Shielded | 106mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.079" (2.00mm) |
|

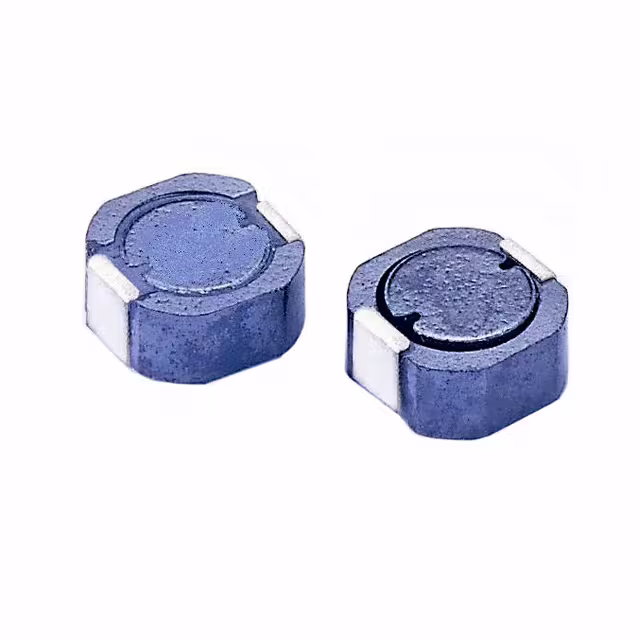

SC63LCB-120FIXED IND 12UH 2.3A 66 MOHM SMD |
4,587 |
|
Datasheet |
SC63LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.3 A | 1.04A | 12 µH | Shielded | 66mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
