| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-18E331LFIXED IND 330UH 1.9A 110 MOHM TH |
1,954 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.9 A | - | 330 µH | Shielded | 110mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E332LFIXED IND 3.3MH 600MA 1 OHM TH |
3,421 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 600 mA | - | 3.3 mH | Shielded | 1Ohm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E390LFIXED IND 39UH 4.5A 28 MOHM TH |
2,244 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4.5 A | - | 39 µH | Shielded | 28mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E391LFIXED IND 390UH 1.8A 120 MOHM TH |
3,955 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.8 A | - | 390 µH | Shielded | 120mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E470LFIXED IND 47UH 4.1A 30 MOHM TH |
4,047 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4.1 A | - | 47 µH | Shielded | 30mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E471LFIXED IND 470UH 1.5A 150 MOHM TH |
3,367 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.5 A | - | 470 µH | Shielded | 150mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E560LFIXED IND 56UH 3.8A 31 MOHM TH |
3,695 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 3.8 A | - | 56 µH | Shielded | 31mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E561LFIXED IND 560UH 1.4A 170 MOHM TH |
3,375 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.4 A | - | 560 µH | Shielded | 170mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E5R6LFIXED IND 5.6UH 6.7A 11 MOHM TH |
4,789 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 6.7 A | - | 5.6 µH | Shielded | 11mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E680LFIXED IND 68UH 3.6A 36 MOHM TH |
4,823 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 3.6 A | - | 68 µH | Shielded | 36mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E681LFIXED IND 680UH 1.2A 190 MOHM TH |
4,746 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.2 A | - | 680 µH | Shielded | 190mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E6R8LFIXED IND 6.8UH 6.5A 13 MOHM TH |
4,261 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 6.5 A | - | 6.8 µH | Shielded | 13mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E820LFIXED IND 82UH 3.5A 40 MOHM TH |
2,070 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 3.5 A | - | 82 µH | Shielded | 40mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E821LFIXED IND 820UH 1.1A 210 MOHM TH |
4,569 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | - | 820 µH | Shielded | 210mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E8R2LFIXED IND 8.2UH 6.2A 13 MOHM TH |
3,632 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 6.2 A | - | 8.2 µH | Shielded | 13mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|

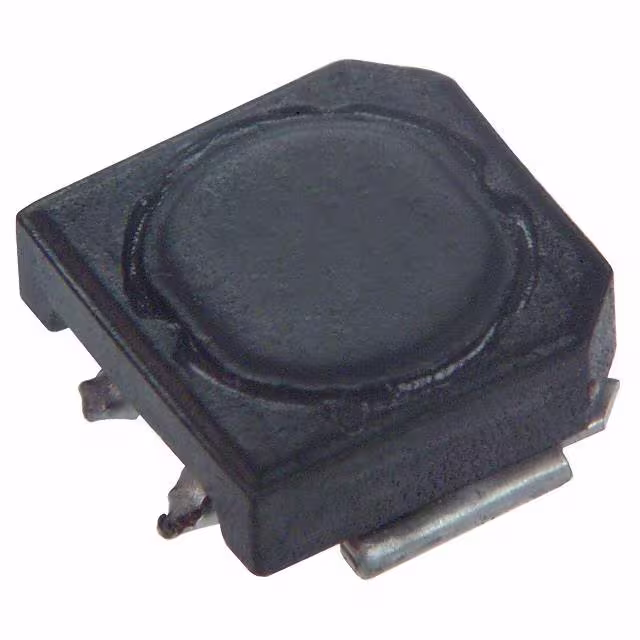

ELL-6RH4R7MFIXED IND 4.7UH 1.58A 49MOHM SMD |
3,456 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.58 A | - | 4.7 µH | Shielded | 49mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.110" (2.80mm) |
|
ELL-SFG3R3NAFIXED IND 3.3UH 1.15A 110MOHM SM |
1,383 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.15 A | 1.1A | 3.3 µH | Shielded | 110mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG4R7NAFIXED IND 4.7UH 1.1A 130MOHM SMD |
3,549 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.1 A | 1A | 4.7 µH | Shielded | 130mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG6R8NAFIXED IND 6.8UH 950MA 180MOHM SM |
4,595 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 950 mA | 800mA | 6.8 µH | Shielded | 180mOhm | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
ELJ-QF1N1DFFIXED IND 1.1NH 400MA 60MOHM SMD |
3,330 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 400 mA | - | 1.1 nH | Unshielded | 60mOhm Max | 10 @ 100MHz | 6GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
