| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

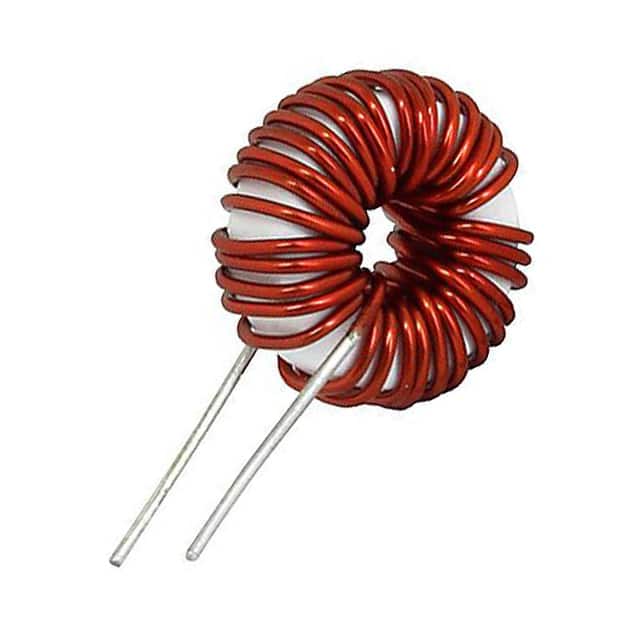

DLO1-24-0007FIXED IND 600MA 1.55 OHM TH |
2,937 |
|
Datasheet |
DLO | Radial, Vertical (Open) | Tape & Reel (TR) | Obsolete | - | - | - | 600 mA | - | - | - | 1.55Ohm | - | - | - | Through Hole | -40°C ~ 125°C | - | - | - | 0.787" Dia x 0.394" W (20.00mm x 10.00mm) | - |
|
|
DLO1-24-0008FIXED IND 450MA 3 OHM TH |
3,846 |
|
Datasheet |
DLO | Radial, Vertical (Open) | Tape & Reel (TR) | Obsolete | - | - | - | 450 mA | - | - | - | 3Ohm | - | - | - | Through Hole | -40°C ~ 125°C | - | - | - | 0.787" Dia x 0.394" W (20.00mm x 10.00mm) | - |
|
ELC-18E100LFIXED IND 10UH 5.9A 14 MOHM TH |
1,421 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 5.9 A | - | 10 µH | Shielded | 14mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E101LFIXED IND 100UH 3A 44 MOHM TH |
2,567 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 3 A | - | 100 µH | Shielded | 44mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E102LFIXED IND 1MH 1A 280 MOHM TH |
3,572 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1 A | - | 1 mH | Shielded | 280mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E103LFIXED IND 10MH 330MA 2.7 OHM TH |
1,158 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 330 mA | - | 10 mH | Shielded | 2.7Ohm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E120LFIXED IND 12UH 5.6A 16 MOHM TH |
2,074 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 5.6 A | - | 12 µH | Shielded | 16mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E121LFIXED IND 120UH 2.8A 47 MOHM TH |
1,896 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | - | 120 µH | Shielded | 47mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E150LFIXED IND 15UH 5.4A 17 MOHM TH |
2,260 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 5.4 A | - | 15 µH | Shielded | 17mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
ELC-18E151LFIXED IND 150UH 2.6A 61 MOHM TH |
4,614 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 2.6 A | - | 150 µH | Shielded | 61mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E152LFIXED IND 1.5MH 900MA 510MOHM TH |
3,290 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 900 mA | - | 1.5 mH | Shielded | 510mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E180LFIXED IND 18UH 5.2A 19 MOHM TH |
1,609 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 5.2 A | - | 18 µH | Shielded | 19mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E181LFIXED IND 180UH 2.5A 67 MOHM TH |
1,173 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 2.5 A | - | 180 µH | Shielded | 67mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E182LFIXED IND 1.8MH 800MA 570MOHM TH |
4,042 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | - | 1.8 mH | Shielded | 570mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E220LFIXED IND 22UH 5A 22 MOHM TH |
3,689 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 5 A | - | 22 µH | Shielded | 22mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E221LFIXED IND 220UH 2.1A 76 MOHM TH |
1,321 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 2.1 A | - | 220 µH | Shielded | 76mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E222LFIXED IND 2.2MH 730MA 630MOHM TH |
2,536 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 730 mA | - | 2.2 mH | Shielded | 630mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E270LFIXED IND 27UH 4.8A 23 MOHM TH |
3,719 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4.8 A | - | 27 µH | Shielded | 23mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E271LFIXED IND 270UH 2A 83 MOHM TH |
1,988 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 2 A | - | 270 µH | Shielded | 83mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E330LFIXED IND 33UH 4.6A 26 MOHM TH |
1,784 |
|
Datasheet |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4.6 A | - | 33 µH | Shielded | 26mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
