| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-15E221LFIXED IND 220UH 2A 140 MOHM TH |
4,954 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 2 A | - | 220 µH | Shielded | 140mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E820LFIXED IND 82UH 3.2A 48 MOHM TH |
1,604 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 3.2 A | - | 82 µH | Shielded | 48mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E222LFIXED IND 2.2MH 630MA 1.1 OHM TH |
4,160 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 630 mA | - | 2.2 mH | Shielded | 1.1Ohm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E821LFIXED IND 820UH 1A 440 MOHM TH |
2,986 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1 A | - | 820 µH | Shielded | 440mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E270LFIXED IND 27UH 4.1A 29 MOHM TH |
1,451 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4.1 A | - | 27 µH | Shielded | 29mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E271LFIXED IND 270UH 1.7A 150 MOHM TH |
1,297 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | - | 270 µH | Shielded | 150mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E8R2LFIXED IND 8.2UH 5.8A 16 MOHM TH |
1,131 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 5.8 A | - | 8.2 µH | Shielded | 16mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E100LFIXED IND 10UH 5.4A 18 MOHM TH |
4,766 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 5.4 A | - | 10 µH | Shielded | 18mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E331LFIXED IND 330UH 1.6A 170 MOHM TH |
3,437 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | - | 330 µH | Shielded | 170mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E101LFIXED IND 100UH 3A 53 MOHM TH |
1,888 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 3 A | - | 100 µH | Shielded | 53mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E332LFIXED IND 3.3MH 530MA 1.6 OHM TH |
2,127 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 530 mA | - | 3.3 mH | Shielded | 1.6Ohm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E102LFIXED IND 1MH 950MA 490 MOHM TH |
3,974 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 950 mA | - | 1 mH | Shielded | 490mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E390LFIXED IND 39UH 3.8A 33 MOHM TH |
4,491 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 3.8 A | - | 39 µH | Shielded | 33mOhm | - | - | - | Through Hole | - | - | 10 kHz | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
AIUR-02H-4R7MFIXED IND 4.7UH 2.5A 34 MOHM TH |
1,531 |
|
Datasheet |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 4.6A | 4.7 µH | Unshielded | 34mOhm Max | 15 @ 7.96MHz | - | - | Through Hole | -25°C ~ 85°C | - | 7.96 MHz | - | 0.830" Dia (21.08mm) | 0.831" (21.10mm) |
|
4622-RCFIXED IND 10UH 1.5A 110 MOHM TH |
1,183 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 1.5 A | - | 10 µH | Unshielded | 110mOhm Max | 69 @ 2.52MHz | 40MHz | - | Through Hole | -55°C ~ 105°C | - | 2.52 MHz | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4624-RCFIXED IND 15UH 1A 170 MOHM TH |
4,324 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 1 A | - | 15 µH | Unshielded | 170mOhm Max | 62 @ 2.52MHz | 33MHz | - | Through Hole | -55°C ~ 105°C | - | 2.52 MHz | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4626-RCFIXED IND 24UH 800MA 340 MOHM TH |
1,071 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 800 mA | - | 24 µH | Unshielded | 340mOhm Max | 65 @ 2.52MHz | 25MHz | - | Through Hole | -55°C ~ 105°C | - | 2.52 MHz | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4628-RCFIXED IND 39UH 600MA 650 MOHM TH |
3,385 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 600 mA | - | 39 µH | Unshielded | 650mOhm Max | 70 @ 2.52MHz | 20MHz | - | Through Hole | -55°C ~ 105°C | - | 2.52 MHz | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4632-RCFIXED IND 100UH 400MA 3 OHM TH |
4,711 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 400 mA | - | 100 µH | Unshielded | 3Ohm Max | 107 @ 790kHz | 12MHz | - | Through Hole | -55°C ~ 105°C | - | 790 kHz | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|

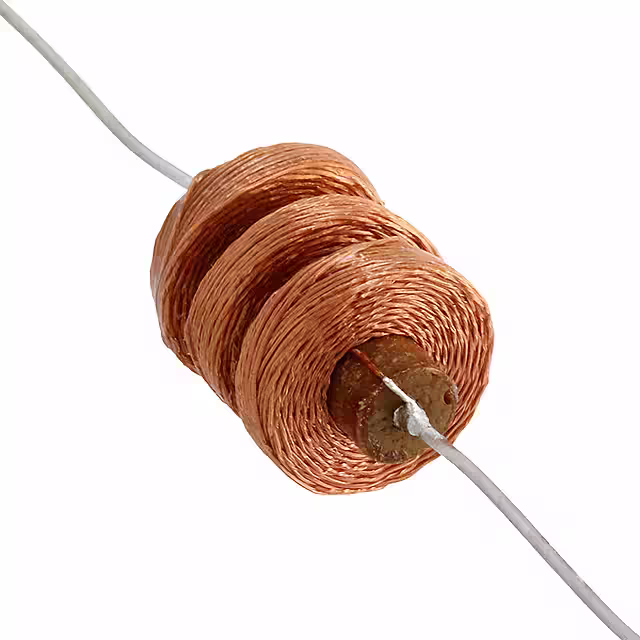

4652-RCFIXED IND 1MH 160MA 19 OHM TH |
4,400 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | ±5% | 160 mA | - | 1 mH | Unshielded | 19Ohm Max | 59 @ 252kHz | 3.7MHz | - | Through Hole | -55°C ~ 125°C | - | 252 kHz | - | 0.560" Dia x 0.875" L (14.22mm x 22.22mm) | - |
