| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM125S-150M-RCFIXED IND 15UH 2.45A 60 MOHM SMD |
1,160 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.45 A | 3.68A | 15 µH | Shielded | 60mOhm Max | - | 19MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
6705-RCFIXED IND 450UH 1.5A 490 MOHM TH |
3,907 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 1.5 A | - | 450 µH | Shielded | 490mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 1.000" (25.40mm) |
|
PM1038S-2R5M-RCFIXED IND 2.5UH 11.5A 8.7MOHM SM |
3,054 |
|
Datasheet |
PM1038S | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 11.5 A | 14A | 2.5 µH | Shielded | 8.7mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
PM125S-270M-RCFIXED IND 27UH 2A 80 MOHM SMD |
2,550 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2 A | 3.62A | 27 µH | Shielded | 80mOhm Max | - | 14MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
PM125S-271M-RCFIXED IND 270UH 630MA 700MOHM SM |
2,587 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 630 mA | 1.07A | 270 µH | Shielded | 700mOhm Max | - | 4MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
PM125S-471M-RCFIXED IND 470UH 480MA 1.2OHM SMD |
4,286 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 480 mA | 870mA | 470 µH | Shielded | 1.2Ohm Max | - | 3MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|

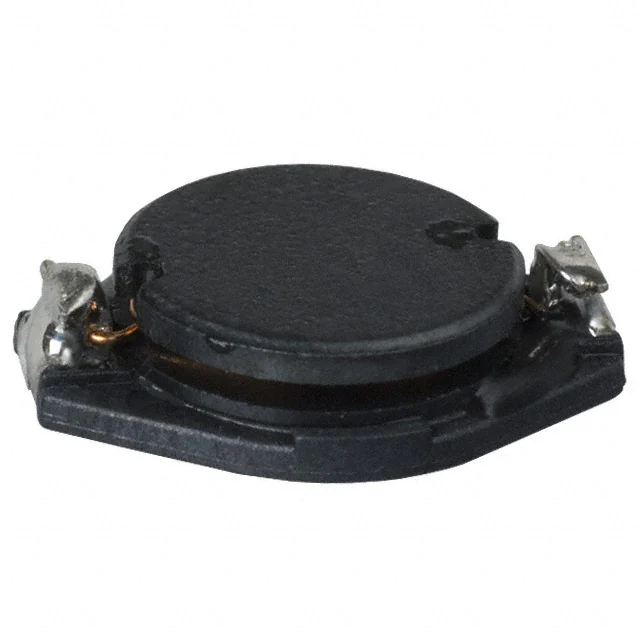

PM3308-102M-RCFIXED IND 1MH 50MA 8.4 OHM SMD |
4,671 |
|
Datasheet |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 50 mA | 100mA | 1 mH | Unshielded | 8.4Ohm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
RL110S-100M-RCFIXED IND 10UH 3.9A 23 MOHM TH |
1,497 |
|
Datasheet |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 3.9 A | - | 10 µH | Shielded | 23mOhm Max | 50 @ 2.52MHz | 32MHz | - | Through Hole | -30°C ~ 100°C | - | 2.52 MHz | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RL110S-102L-RCFIXED IND 1MH 390MA 1.5 OHM TH |
4,474 |
|
Datasheet |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 390 mA | - | 1 mH | Shielded | 1.5Ohm Max | 50 @ 250kHz | 1.5MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RL110S-151L-RCFIXED IND 150UH 1A 230 MOHM TH |
4,878 |
|
Datasheet |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 1 A | - | 150 µH | Shielded | 230mOhm Max | 25 @ 790kHz | 3.6MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RL110S-221L-RCFIXED IND 220UH 830MA 290MOHM TH |
1,969 |
|
Datasheet |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 830 mA | - | 220 µH | Shielded | 290mOhm Max | 25 @ 790kHz | 3.1MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RL110S-330L-RCFIXED IND 33UH 2.1A 57 MOHM TH |
2,212 |
|
Datasheet |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 2.1 A | - | 33 µH | Shielded | 57mOhm Max | 40 @ 2.52MHz | 10MHz | - | Through Hole | -30°C ~ 100°C | - | 2.52 MHz | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
RL855-100M-RCFIXED IND 10UH 2.5A 70 MOHM TH |
4,152 |
|
Datasheet |
RL855 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | - | 10 µH | Unshielded | 70mOhm Max | 45 @ 2.5MHz | 20MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
RL855-222K-RCFIXED IND 2.2MH 180MA 11.1OHM TH |
1,124 |
|
Datasheet |
RL855 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | - | 2.2 mH | Unshielded | 11.1Ohm Max | 80 @ 250kHz | 950kHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
RL855-680K-RCFIXED IND 68UH 1A 340 MOHM TH |
4,164 |
|
Datasheet |
RL855 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1 A | - | 68 µH | Unshielded | 340mOhm Max | 22 @ 2.5MHz | 4.5MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
RL855-681K-RCFIXED IND 680UH 320MA 3.25OHM TH |
4,449 |
|
Datasheet |
RL855 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 320 mA | - | 680 µH | Unshielded | 3.25Ohm Max | 34 @ 790kHz | 1.7MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
RL855-822K-RCFIXED IND 8.2MH 88MA 46.5 OHM TH |
4,752 |
|
Datasheet |
RL855 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 88 mA | - | 8.2 mH | Unshielded | 46.5Ohm Max | 80 @ 250kHz | 550kHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
CM201212-27NKLFIXED IND 27NH 455MA 320MOHM SMD |
1,414 |
|
Datasheet |
CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Polymer | ±10% | 455 mA | - | 27 nH | Unshielded | 320mOhm Max | 15 @ 100MHz | 2.5GHz | - | Surface Mount | -40°C ~ 100°C | - | 100 MHz | 0805 (2012 Metric) | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
|
CM201212-47NKLFIXED IND 47NH 385MA 420MOHM SMD |
3,817 |
|
Datasheet |
CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Polymer | ±10% | 385 mA | - | 47 nH | Unshielded | 420mOhm Max | 15 @ 100MHz | 1.6GHz | - | Surface Mount | -40°C ~ 100°C | - | 100 MHz | 0805 (2012 Metric) | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
|
CM201212-68NKLFIXED IND 68NH 340MA 520MOHM SMD |
1,841 |
|
Datasheet |
CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Polymer | ±10% | 340 mA | - | 68 nH | Unshielded | 520mOhm Max | 15 @ 100MHz | 1.4GHz | - | Surface Mount | -40°C ~ 100°C | - | 100 MHz | 0805 (2012 Metric) | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
