| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM201212-82NKLFIXED IND 82NH 330MA 600MOHM SMD |
4,757 |
|
Datasheet |
CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Polymer | ±10% | 330 mA | - | 82 nH | Unshielded | 600mOhm Max | 15 @ 100MHz | 1.1GHz | - | Surface Mount | -40°C ~ 100°C | - | 100 MHz | 0805 (2012 Metric) | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
|
CM201212-R47KLFIXED IND 470NH 145MA 2.57OHM SM |
1,259 |
|
Datasheet |
CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Polymer | ±10% | 145 mA | - | 470 nH | Unshielded | 2.57Ohm Max | 10 @ 25.2MHz | 150MHz | - | Surface Mount | -40°C ~ 100°C | - | 25.2 MHz | 0805 (2012 Metric) | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
|
CM201212-R68KLFIXED IND 680NH 130MA 2.99OHM SM |
3,027 |
|
Datasheet |
CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Polymer | ±10% | 130 mA | - | 680 nH | Unshielded | 2.99Ohm Max | 10 @ 25.2MHz | 100MHz | - | Surface Mount | -40°C ~ 100°C | - | 25.2 MHz | 0805 (2012 Metric) | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
FSR1013-103KLFIXED IND 10MH 45MA 35 OHM TH |
2,359 |
|
Datasheet |
FSR1013 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 45 mA | - | 10 mH | Shielded | 35Ohm Max | 50 @ 79.6kHz | 240kHz | - | Through Hole | -40°C ~ 105°C | - | 1 kHz | - | 0.413" Dia (10.50mm) | 0.531" (13.50mm) |
|
|
FSR1013-153KLFIXED IND 15MH 38MA 58 OHM TH |
1,715 |
|
Datasheet |
FSR1013 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 38 mA | - | 15 mH | Shielded | 58Ohm Max | 50 @ 79.6kHz | 190kHz | - | Through Hole | -40°C ~ 105°C | - | 1 kHz | - | 0.413" Dia (10.50mm) | 0.531" (13.50mm) |
|
|
FSR1013-333KLFIXED IND 33MH 25MA 115 OHM TH |
4,499 |
|
Datasheet |
FSR1013 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 25 mA | - | 33 mH | Shielded | 115Ohm Max | 40 @ 79.6kHz | 125kHz | - | Through Hole | -40°C ~ 105°C | - | 1 kHz | - | 0.413" Dia (10.50mm) | 0.531" (13.50mm) |
|
|
FSR1013-473KLFIXED IND 47MH 22MA 205 OHM TH |
4,348 |
|
Datasheet |
FSR1013 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 22 mA | - | 47 mH | Shielded | 205Ohm Max | 30 @ 79.6kHz | 110kHz | - | Through Hole | -40°C ~ 105°C | - | 1 kHz | - | 0.413" Dia (10.50mm) | 0.531" (13.50mm) |
|
PM1038S-1R7M-RCFIXED IND 1.7UH 15A 7.5 MOHM SMD |
3,244 |
|
Datasheet |
PM1038S | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 15 A | 18A | 1.7 µH | Shielded | 7.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
PM1038S-R39M-RCFIXED IND 390NH 24A 1.4 MOHM SMD |
2,177 |
|
Datasheet |
PM1038S | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 24 A | 32A | 390 nH | Shielded | 1.4mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
PM3308-150M-RCFIXED IND 15UH 1.5A 0.15MOHM SMD |
4,155 |
|
Datasheet |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 2A | 15 µH | Unshielded | 0.15mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-151M-RCFIXED IND 150UH 500MA 1.2MOHM SM |
1,245 |
|
Datasheet |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 600mA | 150 µH | Unshielded | 1.2mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-221M-RCFIXED IND 220UH 400MA 1.9OHM SMD |
4,758 |
|
Datasheet |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 500mA | 220 µH | Unshielded | 1.9Ohm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-681M-RCFIXED IND 680UH 100MA 5.3OHM SMD |
3,054 |
|
Datasheet |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 100 mA | 200mA | 680 µH | Unshielded | 5.3Ohm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|

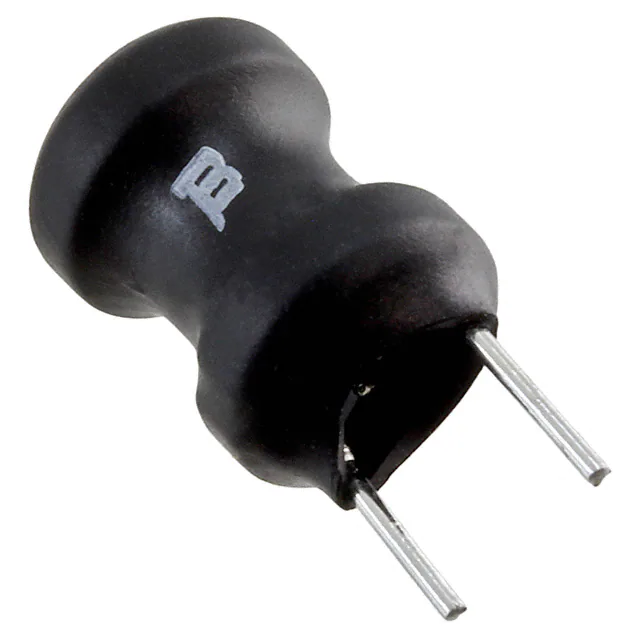

PT12120SLFIXED IND 600UH 200MA 4 OHM TH |
4,000 |
|
Datasheet |
PT121 | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | ±10% | 200 mA | - | 600 µH | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.6MHz | - | Through Hole | -20°C ~ 80°C | - | 796 kHz | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
|
PT12130SLFIXED IND 4.7MH 50MA 18 OHM TH |
1,837 |
|
Datasheet |
PT121 | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | ±10% | 50 mA | - | 4.7 mH | Unshielded | 18Ohm Max | 90 @ 252kHz | 600kHz | - | Through Hole | -20°C ~ 80°C | - | 252 kHz | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
|
PT12133SJLFIXED IND 8.2MH 50MA 26 OHM TH |
4,187 |
|
Datasheet |
PT121 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | ±5% | 50 mA | - | 8.2 mH | Unshielded | 26Ohm Max | 90 @ 252kHz | 500kHz | - | Through Hole | -20°C ~ 80°C | - | 252 kHz | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
CS321613-120KFIXED IND 12UH 25MA 900 MOHM SMD |
2,425 |
|
Datasheet |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 25 mA | - | 12 µH | Shielded | 900mOhm Max | 65 @ 2MHz | 22MHz | - | Surface Mount | -55°C ~ 125°C | - | 2 MHz | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-180KFIXED IND 18UH 25MA 1.4 OHM SMD |
2,562 |
|
Datasheet |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 25 mA | - | 18 µH | Shielded | 1.4Ohm Max | 45 @ 1MHz | 18MHz | - | Surface Mount | -55°C ~ 125°C | - | 1 MHz | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-1R2KFIXED IND 1.2UH 100MA 300MOHM SM |
4,538 |
|
Datasheet |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 100 mA | - | 1.2 µH | Shielded | 300mOhm Max | 80 @ 10MHz | 65MHz | - | Surface Mount | -55°C ~ 125°C | - | 10 MHz | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-1R5KFIXED IND 1.5UH 50MA 300MOHM SMD |
2,003 |
|
Datasheet |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 50 mA | - | 1.5 µH | Shielded | 300mOhm Max | 80 @ 10MHz | 60MHz | - | Surface Mount | -55°C ~ 125°C | - | 10 MHz | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
