| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLG1608SR12JTD25FIXED IND 120NH 300MA 1.2OHM SMD |
4,911 |
|
Datasheet |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 300 mA | - | 120 nH | Unshielded | 1.2Ohm Max | 14 @ 100MHz | 650MHz | AEC-Q200 | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608SR15JTD25FIXED IND 150NH 250MA 1.3OHM SMD |
4,298 |
|
Datasheet |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 250 mA | - | 150 nH | Unshielded | 1.3Ohm Max | 14 @ 100MHz | 550MHz | AEC-Q200 | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608SR22JTD25FIXED IND 220NH 200MA 1.7OHM SMD |
1,760 |
|
Datasheet |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 200 mA | - | 220 nH | Unshielded | 1.7Ohm Max | 14 @ 100MHz | 450MHz | AEC-Q200 | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608SR27JTD25FIXED IND 270NH 200MA 2 OHM SMD |
2,906 |
|
Datasheet |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 200 mA | - | 270 nH | Unshielded | 2Ohm Max | 14 @ 100MHz | 350MHz | AEC-Q200 | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608SR39JTD25FIXED IND 390NH 100MA 3 OHM SMD |
4,249 |
|
Datasheet |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 100 mA | - | 390 nH | Unshielded | 3Ohm Max | 10 @ 50MHz | 300MHz | AEC-Q200 | Surface Mount | -55°C ~ 125°C | - | 50 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608SR47JTD25FIXED IND 470NH 100MA 3.5OHM SMD |
3,526 |
|
Datasheet |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 100 mA | - | 470 nH | Unshielded | 3.5Ohm Max | 10 @ 50MHz | 250MHz | AEC-Q200 | Surface Mount | -55°C ~ 125°C | - | 50 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608SR56JTD25FIXED IND 560NH 70MA 4.5 OHM SMD |
3,887 |
|
Datasheet |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 70 mA | - | 560 nH | Unshielded | 4.5Ohm Max | 10 @ 50MHz | 250MHz | AEC-Q200 | Surface Mount | -55°C ~ 125°C | - | 50 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608SR68JTD25FIXED IND 680NH 70MA 5.5 OHM SMD |
3,857 |
|
Datasheet |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 70 mA | - | 680 nH | Unshielded | 5.5Ohm Max | 10 @ 50MHz | 200MHz | AEC-Q200 | Surface Mount | -55°C ~ 125°C | - | 50 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LTF5022T-1R5N3R6-LCFIXED IND 1.5UH 3.8A 32 MOHM SMD |
2,625 |
|
Datasheet |
LTF5022T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3.8 A | 3.6A | 1.5 µH | Shielded | 32mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.087" (2.20mm) |
|

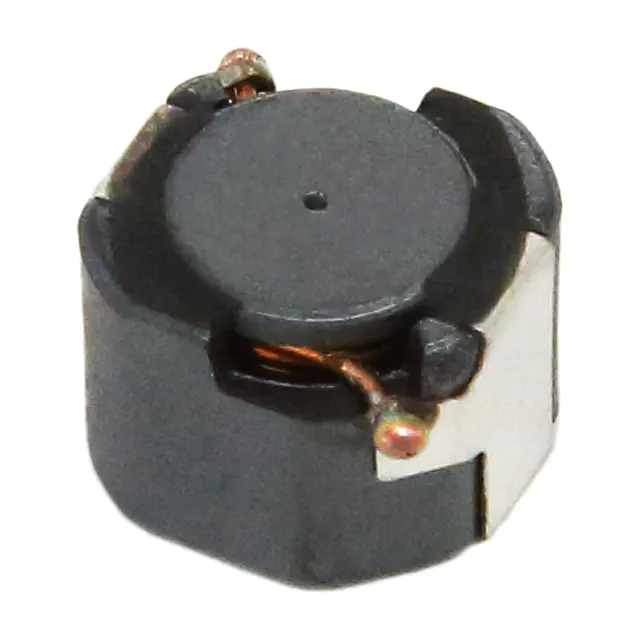

CLF6045T-2R2N-CAFIXED IND 2.2UH 4A 19.5 MOHM SMD |
4,555 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 4 A | 3.9A | 2.2 µH | Shielded | 19.5mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
CLF6045T-3R3N-CAFIXED IND 3.3UH 3.5A 24.7MOHM SM |
1,898 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3.5 A | 3.1A | 3.3 µH | Shielded | 24.7mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
CLF6045T-4R7N-CAFIXED IND 4.7UH 3.2A 29.9MOHM SM |
2,827 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3.2 A | 2.5A | 4.7 µH | Shielded | 29.9mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
CLF6045T-100M-CAFIXED IND 10UH 2.4A 45.6MOHM SMD |
3,441 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 1.7A | 10 µH | Shielded | 45.6mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
CLF6045T-220M-CAFIXED IND 22UH 1.7A 93.6MOHM SMD |
3,723 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.7 A | 1.3A | 22 µH | Shielded | 93.6mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
CLF6045T-330M-CAFIXED IND 33UH 1.5A 123.6MOHM SM |
3,295 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.07A | 33 µH | Shielded | 123.6mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
CLF6045T-680M-CAFIXED IND 68UH 1A 258 MOHM SMD |
4,304 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 790mA | 68 µH | Shielded | 258mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
CLF6045T-151M-CAFIXED IND 150UH 600MA 576MOHM SM |
2,635 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 500mA | 150 µH | Shielded | 576mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
CLF6045T-331M-CAFIXED IND 330UH 440MA 1.164 OHM |
3,265 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 440 mA | 350mA | 330 µH | Shielded | 1.164Ohm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|

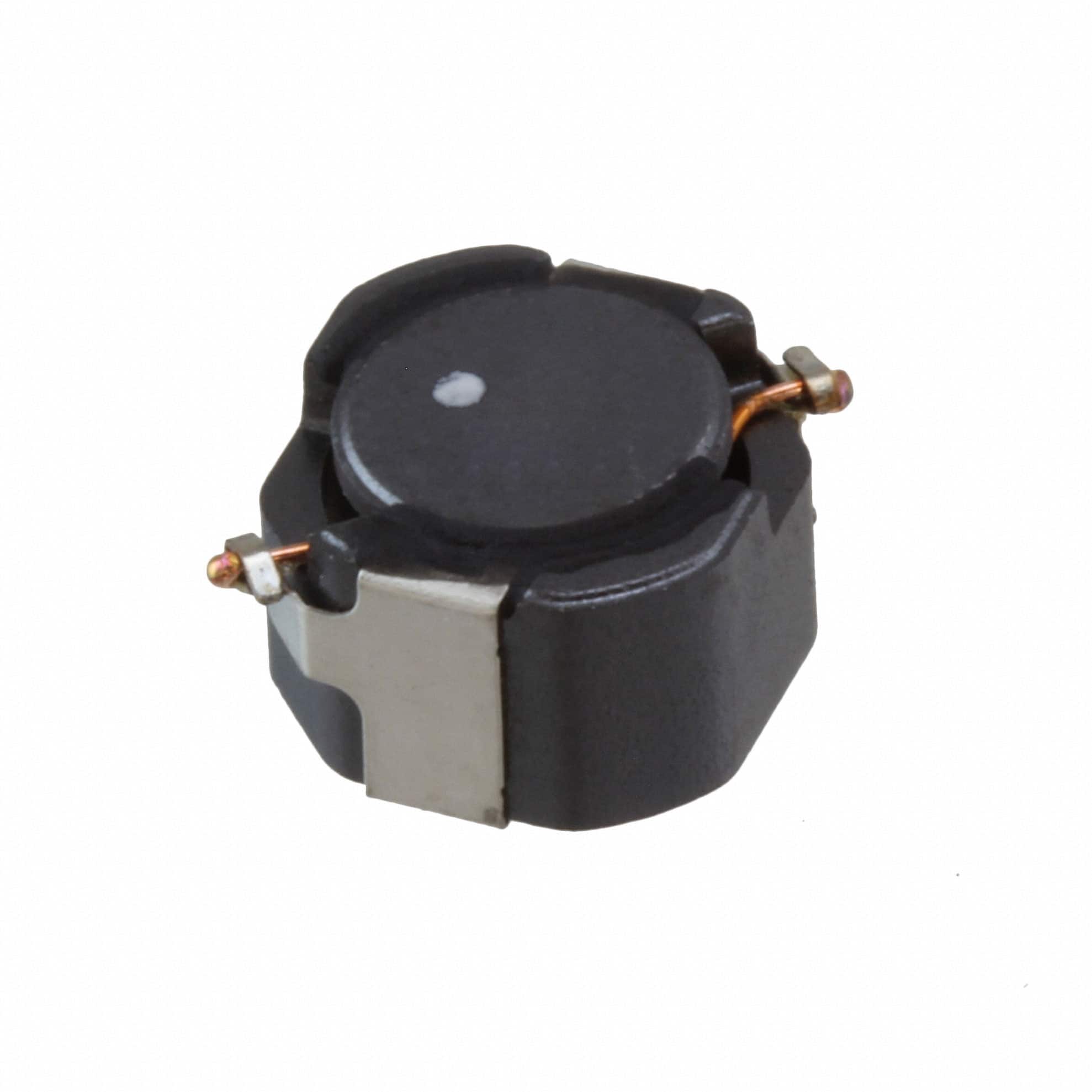

CLF7045T-1R5N-CAFIXED IND 1.5UH 4.9A 14.3MOHM SM |
3,422 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 4.9 A | 7.3A | 1.5 µH | Shielded | 14.3mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-4R7N-CAFIXED IND 4.7UH 3.6A 26 MOHM SMD |
2,315 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3.6 A | 4.1A | 4.7 µH | Shielded | 26mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
