| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLF12555T-680M-CAFIXED IND 68UH 1.6A 150 MOHM SMD |
2,632 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.6 A | 2.6A | 68 µH | Shielded | 150mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
|
CLF12555T-101M-CAFIXED IND 100UH 1.3A 228MOHM SMD |
4,564 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 2.1A | 100 µH | Shielded | 228mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
|
CLF12555T-221M-CAFIXED IND 220UH 900MA 444MOHM SM |
1,925 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 1.5A | 220 µH | Shielded | 444mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
|
CLF12555T-471M-CAFIXED IND 470UH 600MA 954MOHM SM |
2,936 |
|
Datasheet |
CLF-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 1A | 470 µH | Shielded | 954mOhm Max | - | - | AEC-Q200 | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
SRN6028-R90YFIXED IND 900NH 4.6A 17 MOHM SMD |
3,903 |
|
Datasheet |
SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 4.6 A | 6.7A | 900 nH | Shielded | 17mOhm Max | 12 @ 7.96MHz | 105MHz | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028-3R0YFIXED IND 3UH 3.4A 30 MOHM SMD |
1,709 |
|
Datasheet |
SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3.4 A | 3.6A | 3 µH | Shielded | 30mOhm Max | 12 @ 7.96MHz | 46MHz | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028-6R0MFIXED IND 6UH 2.5A 48 MOHM SMD |
3,836 |
|
Datasheet |
SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 2.5A | 6 µH | Shielded | 48mOhm Max | 10 @ 7.96MHz | 28MHz | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028-6R2MFIXED IND 6.2UH 2.2A 63 MOHM SMD |
1,055 |
|
Datasheet |
SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.2 A | 2.2A | 6.2 µH | Shielded | 63mOhm Max | 10 @ 7.96MHz | 28MHz | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

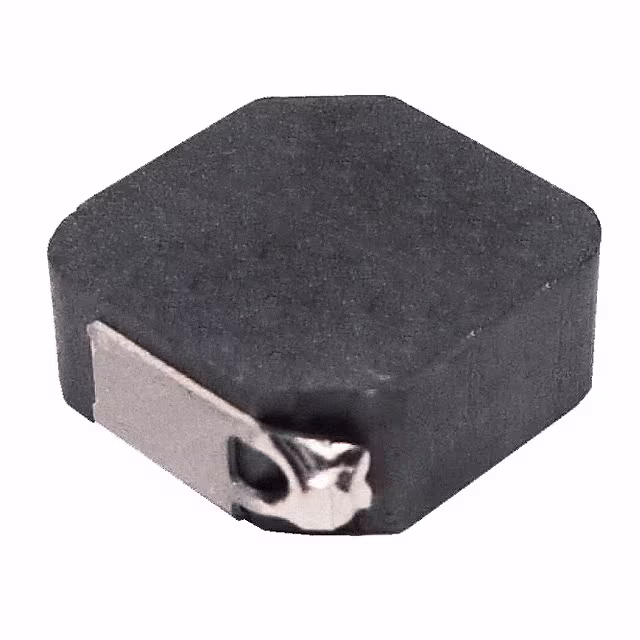

ETQ-P3WR82WFNFIXED IND 820NH 14A 8 MOHM SMD |
4,768 |
|
Datasheet |
PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | ±20% | 14 A | - | 820 nH | Shielded | 8mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
GLMR47KAT1AFIXED IND 470NH 815MA 190MOHM SM |
3,672 |
|
Datasheet |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | ±10% | 815 mA | - | 470 nH | Unshielded | 190mOhm | - | - | - | Surface Mount | -55°C ~ 125°C | - | 1 MHz | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
GLMR70KAT1AFIXED IND 700NH 619MA 320MOHM SM |
3,060 |
|
Datasheet |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | ±10% | 619 mA | - | 700 nH | Unshielded | 320mOhm | - | - | - | Surface Mount | -55°C ~ 125°C | - | 1 MHz | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
GLM1R1KAT1AFIXED IND 1.1UH 438MA 640MOHM SM |
3,281 |
|
Datasheet |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | ±10% | 438 mA | - | 1.1 µH | Unshielded | 640mOhm | - | - | - | Surface Mount | -55°C ~ 125°C | - | 1 MHz | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
GLM2R0KAT1AFIXED IND 2UH 277MA 1.6 OHM SMD |
2,229 |
|
Datasheet |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | ±10% | 277 mA | - | 2 µH | Unshielded | 1.6Ohm | - | - | - | Surface Mount | -55°C ~ 125°C | - | 1 MHz | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
GLM3R8KAT1AFIXED IND 3.8UH 182MA 3.7OHM SMD |
4,301 |
|
Datasheet |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | ±10% | 182 mA | - | 3.8 µH | Unshielded | 3.7Ohm | - | - | - | Surface Mount | -55°C ~ 125°C | - | 1 MHz | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
GLN2R0KAT1AFIXED IND 2UH 494MA 650 MOHM SMD |
1,819 |
|
Datasheet |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | ±10% | 494 mA | - | 2 µH | Unshielded | 650mOhm | - | - | - | Surface Mount | -55°C ~ 125°C | - | 1 MHz | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
|
GLN3R3KAT1AFIXED IND 3.3UH 350MA 1.29OHM SM |
3,194 |
|
Datasheet |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | ±10% | 350 mA | - | 3.3 µH | Unshielded | 1.29Ohm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 1 MHz | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
|
GLN6R0KAT1AFIXED IND 6UH 236MA 2.85 OHM SMD |
1,511 |
|
Datasheet |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | ±10% | 236 mA | - | 6 µH | Unshielded | 2.85Ohm | - | - | - | Surface Mount | -55°C ~ 125°C | - | 1 MHz | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
LQB18NNR27N10DFIXED IND 270NH 450MA 450MOHM SM |
4,973 |
|
Datasheet |
LQB18 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±30% | 450 mA | - | 270 nH | Shielded | 450mOhm Max | 25 @ 25MHz | 80MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQB18NNR33K10DFIXED IND 330NH 450MA 450MOHM SM |
3,332 |
|
Datasheet |
LQB18 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 450 mA | - | 330 nH | Shielded | 450mOhm Max | 25 @ 25MHz | 80MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CAL45TB100KFIXED IND 10UH 1.7A 140 MOHM TH |
4,743 |
|
Datasheet |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | ±10% | 1.7 A | 1.7A | 10 µH | Unshielded | 140mOhm Max | - | - | - | Through Hole | -25°C ~ 105°C | - | 2.52 MHz | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
