| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HK1608R27G-TFIXED INDUCTOR SMD |
1,223 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±2% | 150 mA | - | 270 nH | Unshielded | 1.9Ohm Max | 8 @ 50MHz | 400MHz | - | Surface Mount | -40°C ~ 85°C | - | 50 MHz | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
CKP3225N1R0M-TFIXED INDUCTOR SMD |
2,828 |
|
Datasheet |
CK, P Type | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±20% | - | - | 1 µH | Unshielded | - | - | - | - | Surface Mount | -40°C ~ 85°C | - | - | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
HK10052N7C-TFIXED INDUCTOR SMD |
1,471 |
|
Datasheet |
HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.2nH | 300 mA | - | 2.7 nH | Unshielded | 130mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HK100515NJ-T8FIXED INDUCTOR SMD |
1,872 |
|
Datasheet |
HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 15 nH | Unshielded | 460mOhm Max | 8 @ 100MHz | 2.3GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HK10053N9J-TVFIXED INDUCTOR SMD |
3,949 |
|
Datasheet |
HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 3.9 nH | Unshielded | 210mOhm Max | 8 @ 100MHz | 4GHz | AEC-Q200 | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HK1005R27H-TFIXED INDUCTOR SMD |
1,128 |
|
Datasheet |
HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±3% | 110 mA | - | 270 nH | Unshielded | 4.8Ohm Max | 8 @ 100MHz | 400MHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HK100568NH-TVFIXED INDUCTOR SMD |
4,793 |
|
Datasheet |
HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±3% | 180 mA | - | 68 nH | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 750MHz | AEC-Q200 | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HK10052N2C-TFIXED INDUCTOR SMD |
3,582 |
|
Datasheet |
HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.2nH | 300 mA | - | 2.2 nH | Unshielded | 130mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
MDRH6045S1681MFIXED IND 680UH 3.7 OHM SMD |
2,529 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | Molded | - | - | - | 0.40mA | 680 µH | - | 3.7Ohm | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
AISC-0402F-R13M-TFIXED INDUCTOR |
4,903 |
|
Datasheet |
AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 640 mA | - | 130 nH | Unshielded | 230mOhm Max | - | 1GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-R13K-TFIXED INDUCTOR |
3,929 |
|
Datasheet |
AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 640 mA | - | 130 nH | Unshielded | 230mOhm Max | - | 1GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-48NM-TFIXED INDUCTOR |
3,936 |
|
Datasheet |
AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | - | 48 nH | Unshielded | 78mOhm Max | - | 1.4GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-18NM-TFIXED INDUCTOR |
2,891 |
|
Datasheet |
AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | - | 18 nH | Unshielded | 46mOhm Max | - | 3GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-48NK-TFIXED INDUCTOR |
1,650 |
|
Datasheet |
AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | - | 48 nH | Unshielded | 78mOhm Max | - | 1.4GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-18NK-TFIXED INDUCTOR |
2,575 |
|
Datasheet |
AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.4 A | - | 18 nH | Unshielded | 46mOhm Max | - | 3GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-70NK-TFIXED INDUCTOR |
2,928 |
|
Datasheet |
AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 820 mA | - | 70 nH | Unshielded | 120mOhm Max | - | 1.3GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-70NM-TFIXED INDUCTOR |
1,915 |
|
Datasheet |
AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 820 mA | - | 70 nH | Unshielded | 120mOhm Max | - | 1.3GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402-1N2J-TFIXED INDUCTOR 0402 SMD |
3,791 |
|
Datasheet |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 1.3 A | - | 1.2 nH | Unshielded | 60mOhm Max | 13 @ 250MHz | 12GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
AISC-0402-2N7J-TFIXED INDUCTOR 0402 SMD |
4,210 |
|
Datasheet |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 640 mA | - | 2.7 nH | Unshielded | 120mOhm Max | 13 @ 250MHz | 10.4GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|

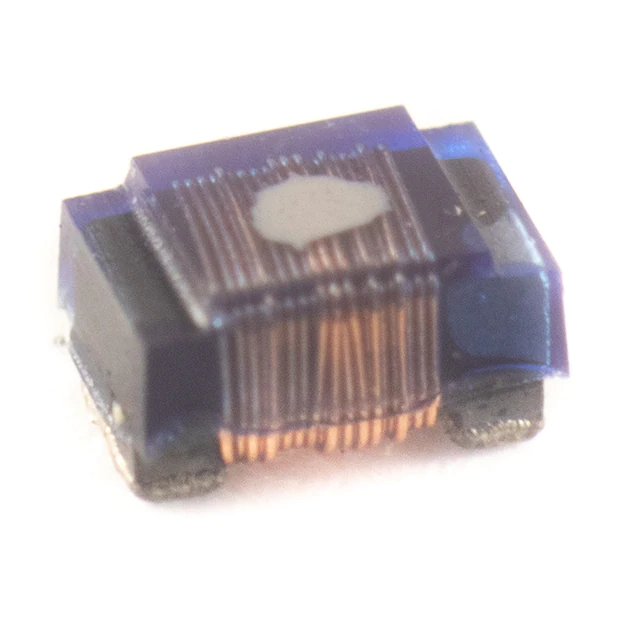

LS03-R47J-RC.47UH +/- 5% SMD INDUCTOR |
4,676 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 1.05 A | - | 470 nH | Unshielded | 620mOhm Max | 17 @ 7.9MHz | 720MHz | - | Surface Mount | -40°C ~ 125°C | - | 7.9 MHz | - | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
