| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCS104-150M-RC15UH +/-20% SMD INDUCTOR |
1,751 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 3.6 A | - | 15 µH | Shielded | 50mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PCSN5D33-680M-RC68UH +/_20% SMD INDUCTOR |
1,729 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 750 mA | - | 68 µH | Shielded | 380mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.138" (3.50mm) |
|
PCS125-101M-RC100UH +/-20% SMD INDUCTOR |
2,392 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.3 A | - | 100 µH | Shielded | 160mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 1 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SQAC1515-82NJ-RC82NH SMD AIR CORE INDUCTOR |
1,774 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 5.6 A | - | 82 nH | Unshielded | 9.4mOhm Max | 230 @ 400MHz | 1.79GHz | - | Surface Mount | -40°C ~ 125°C | - | 400 MHz | - | 0.230" L x 0.140" W (5.84mm x 3.56mm) | 0.154" (3.91mm) |
|

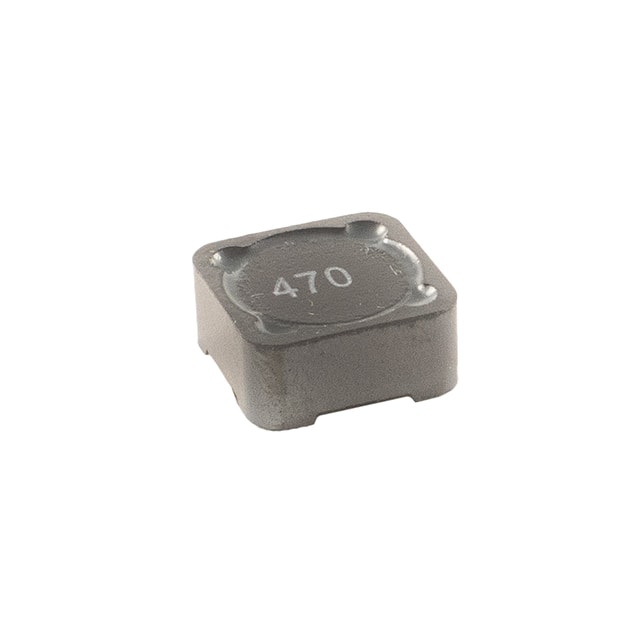

PCSDR125-470M-RC47UH +/-20% SMD INDUCTOR |
4,695 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.714 A | 3.23A | 47 µH | Shielded | 88.8mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
AISM-1812H-5R6K-TINDUCTOR MOLDED WOUND SMD |
1,155 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 650 mA | - | 5.6 µH | Shielded | 300mOhm Max | 10 @ 7.96MHz | 30MHz | - | Surface Mount | -40°C ~ 125°C | - | 7.96 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-330MFIXED INDUCTOR SMD |
2,688 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Bulk | Obsolete | Wirewound | - | ±20% | 300 mA | - | 33 µH | Shielded | 1.4Ohm Max | 10 @ 2.52MHz | 14MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-101M-TFIXED INDUCTOR SMD |
4,978 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 180 mA | - | 100 µH | Shielded | 4Ohm Max | 20 @ 796kHz | 8MHz | - | Surface Mount | -40°C ~ 125°C | - | 796 kHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-330M-TFIXED INDUCTOR SMD |
3,824 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 300 mA | - | 33 µH | Shielded | 1.4Ohm Max | 10 @ 2.52MHz | 14MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-3R9MFIXED INDUCTOR SMD |
3,186 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Bulk | Obsolete | Wirewound | - | ±20% | 700 mA | - | 3.9 µH | Shielded | 240mOhm Max | 10 @ 7.96MHz | 40MHz | - | Surface Mount | -40°C ~ 125°C | - | 7.96 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-221MFIXED INDUCTOR SMD |
3,462 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Bulk | Obsolete | Wirewound | - | ±20% | 120 mA | - | 220 µH | Shielded | 9Ohm Max | 20 @ 796kHz | 5.5MHz | - | Surface Mount | -40°C ~ 125°C | - | 796 kHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-2R2M-TFIXED INDUCTOR SMD |
2,749 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 850 mA | - | 2.2 µH | Shielded | 180mOhm Max | 10 @ 7.96MHz | 65MHz | - | Surface Mount | -40°C ~ 125°C | - | 7.96 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-470M-TFIXED INDUCTOR SMD |
2,359 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 260 mA | - | 47 µH | Shielded | 1.9Ohm Max | 10 @ 2.52MHz | 11.5MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-180MFIXED INDUCTOR SMD |
2,551 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Bulk | Obsolete | Wirewound | - | ±20% | 400 mA | - | 18 µH | Shielded | 800mOhm Max | 10 @ 2.52MHz | 19MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-560MFIXED INDUCTOR SMD |
4,676 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Bulk | Obsolete | Wirewound | - | ±20% | 240 mA | - | 56 µH | Shielded | 2.2Ohm Max | 10 @ 2.52MHz | 11MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-6R8M-TFIXED INDUCTOR SMD |
2,729 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 600 mA | - | 6.8 µH | Shielded | 350mOhm Max | 10 @ 7.96MHz | 28MHz | - | Surface Mount | -40°C ~ 125°C | - | 7.96 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-100M-TFIXED INDUCTOR SMD |
2,617 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 550 mA | - | 10 µH | Shielded | 500mOhm Max | 10 @ 2.52MHz | 22MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-390K-TINDUCTOR MOLDED WOUND SMD |
3,899 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 280 mA | - | 39 µH | Shielded | 1.6Ohm Max | 10 @ 2.52MHz | 12MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-220M-TFIXED INDUCTOR SMD |
2,644 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 370 mA | - | 22 µH | Shielded | 900mOhm Max | 10 @ 2.52MHz | 18MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AISM-1812H-3R3MFIXED INDUCTOR SMD |
4,522 |
|
Datasheet |
AISM-1812H | 1812 (4532 Metric) | Bulk | Obsolete | Wirewound | - | ±20% | 750 mA | - | 3.3 µH | Shielded | 220mOhm Max | 10 @ 7.96MHz | 45MHz | - | Surface Mount | -40°C ~ 125°C | - | 7.96 MHz | 1812 | 0.165" L x 0.126" W (4.20mm x 3.20mm) | 0.134" (3.40mm) |
