Inrush Current Limiters (ICL)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | R @ 25°C | Tolerance | R @ Current | Diameter | Lead Spacing | Current - Steady State Max | Grade | Qualification | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTCEL13R501RBEICL 500 OHM 30% 13.5MM |
7,113 |
|
Datasheet |
PTCEL | Tray | Active | 500 Ohms | ±30% | - | 0.531" (13.50mm) | 0.197" (5.00mm) | - | Automotive | AEC-Q200 | cURus |
|
CL-130AICL 50 OHM 25% 1.6A 11.4MM |
780 |
|
Datasheet |
CL | Bulk | Active | 50 Ohms | ±25% | 750 mOhms | 0.449" (11.40mm) | 0.250" (6.35mm) | 1.6 A | - | - | UL |
|
|
CL-80AICL 47 OHM 25% 3A 19.56MM |
1,517 |
|
Datasheet |
CL | Bulk | Active | 47 Ohms | ±25% | 490 mOhms | 0.770" (19.56mm) | 0.328" (8.33mm) | 3 A | - | - | UL |
|
SL22 5R006ICL 5 OHM 20% 6A 22MM |
187 |
|
Datasheet |
SL22 | Bulk | Active | 5 Ohms | ±20% | 145 mOhms | 0.866" (22.00mm) | 0.307" (7.80mm) | 6 A | - | - | - |
|
|
CL-60AICL 10 OHM 25% 5A 19.56MM |
471 |
|
Datasheet |
CL | Bulk | Active | 10 Ohms | ±25% | 180 mOhms | 0.770" (19.56mm) | 0.328" (8.33mm) | 5 A | - | - | UL |
|
|
CL-30AICL 2.5 OHM 25% 8A 19.56MM |
1,004 |
|
Datasheet |
CL | Bulk | Active | 2.5 Ohms | ±25% | 60 mOhms | 0.770" (19.56mm) | 0.328" (8.33mm) | 8 A | - | - | UL |
|
B57364S0100M051ICL 10 OHM 20% 7.5A 21MM |
5,041 |
|
Datasheet |
S364 | Tape & Reel (TR) | Active | 10 Ohms | ±20% | - | 0.827" (21.00mm) | 0.295" (7.50mm) | 7.5 A | - | - | UL |
|
MF73T-1 10/8ICL 10 OHM 20% 8A 20MM |
275 |
|
Datasheet |
MF73T-1 | Bulk | Active | 10 Ohms | ±20% | 85 mOhms | 0.787" (20.00mm) | 0.394" (10.00mm) | 8 A | - | - | - |
|
MF73T-1 5/12ICL 5 OHM 20% 12A 20MM |
126 |
|
Datasheet |
MF73T-1 | Bulk | Active | 5 Ohms | ±20% | 47 mOhms | 0.787" (20.00mm) | 0.394" (10.00mm) | 12 A | - | - | - |
|
|
CL-80ABICL 47 OHM 25% 3A 19.56MM |
1,995 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 47 Ohms | ±25% | 490 mOhms | 0.770" (19.56mm) | 0.328" (8.33mm) | 3 A | - | - | UL |
|
SL32 1R036-BICL 1 OHM 20% 36A 31MM |
1,387 |
|
Datasheet |
BigAMP | Bulk | Active | 1 Ohms | ±20% | 10 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | 36 A | - | - | CSA |
|
SG330ICL 4 OHM 20% 14A 22.86MM |
1,423 |
|
Datasheet |
SURGE-GARD™ | Bulk | Active | 4 Ohms | ±20% | 50 mOhms | 0.900" (22.86mm) | 0.350" (8.89mm) | 14 A | - | - | CSA, UR |
|
|
SL32 2R023-BICL 2 OHM 20% 23A 31MM |
2,642 |
|
Datasheet |
BigAMP | Bulk | Active | 2 Ohms | ±20% | 20 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | 23 A | - | - | CSA |
|
SG150ICL 2.5 OHM 15% 10A 22.86MM |
407 |
|
Datasheet |
SURGE-GARD™ | Bulk | Active | 2.5 Ohms | ±15% | 40 mOhms | 0.900" (22.86mm) | 0.310" (7.87mm) | 10 A | - | - | CSA, UR |
|
B59213J0130A020ICL 33 OHM 25% |
1,123 |
|
Datasheet |
B59213 | Tray | Active | 33 Ohms | ±25% | - | - | 0.394" (10.00mm) | - | Automotive | AEC-Q200 | UR |
|
|
B57364S100M54ICL 10 OHM 20% 7.5A 21MM |
6,277 |
|
Datasheet |
S364 | Tape & Reel (TR) | Active | 10 Ohms | ±20% | - | 0.827" (21.00mm) | 0.295" (7.50mm) | 7.5 A | - | - | CQC, UL, VDE |
|

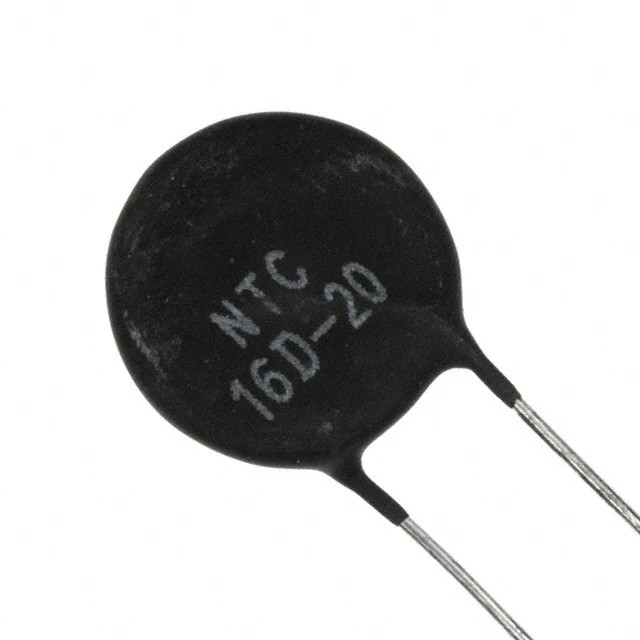

MF72-016D20ICL 16 OHM 20% 5A 22.5MM |
177 |
|
Datasheet |
MF72 | Bulk | Active | 16 Ohms | ±20% | 212 mOhms | 0.886" (22.50mm) | 0.394" (10.00mm) | 5 A | - | - | - |
|
ICL201D30MICICL 20 OHM 20% 7A 34MM |
101 |
|
Datasheet |
ICL | Bulk | Active | 20 Ohms | ±20% | - | 1.339" (34.00mm) | 0.295" (7.50mm) | 7 A | - | - | - |
|
|
SG420ICL 2 OHM 25% 23A 31.75MM |
2,997 |
|
Datasheet |
SURGE-GARD™ | Bulk | Active | 2 Ohms | ±25% | 25 mOhms | 1.250" (31.75mm) | 0.310" (7.87mm) | 23 A | - | - | CSA, UR |
|
MS22 12103-BICL 120 OHM 25% 3A 23MM |
3,728 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 120 Ohms | ±25% | 1.28 Ohms | 0.906" (23.00mm) | 0.307" (7.80mm) | 3 A | - | - | UR |
