Inrush Current Limiters (ICL)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | R @ 25°C | Tolerance | R @ Current | Diameter | Lead Spacing | Current - Steady State Max | Grade | Qualification | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CL-170ICL 16 OHM 25% 2.7A 13.97MM |
1,080 |
|
Datasheet |
CL | Bulk | Active | 16 Ohms | ±25% | 330 mOhms | 0.550" (13.97mm) | 0.328" (8.33mm) | 2.7 A | - | - | UL |
|
CL-110AICL 10 OHM 25% 3.2A 10.16MM |
1,332 |
|
Datasheet |
CL | Bulk | Active | 10 Ohms | ±25% | 190 mOhms | 0.400" (10.16mm) | 0.250" (6.35mm) | 3.2 A | - | - | UL |
|
|
CL-180AICL 16 OHM 25% 1.7A 13.97MM |
1,483 |
|
Datasheet |
CL | Bulk | Active | 16 Ohms | ±25% | 490 mOhms | 0.550" (13.97mm) | 0.328" (8.33mm) | 1.7 A | - | - | UL |
|
B57364S0200M000ICL 20% 21MM |
962 |
|
Datasheet |
S364 | Bulk | Active | - | ±20% | - | 0.827" (21.00mm) | 0.295" (7.50mm) | - | - | - | - |
|
|
CL-120AICL 10 OHM 25% 1.7A 10.16MM |
313 |
|
Datasheet |
CL | Bulk | Active | 10 Ohms | ±25% | 340 mOhms | 0.400" (10.16mm) | 0.250" (6.35mm) | 1.7 A | - | - | UL |
|
|
B57364S2109A002ICL 1 OHM 20% 16A 21MM |
857 |
|
Datasheet |
S364 | Bulk | Active | 1 Ohms | ±20% | - | 0.827" (21.00mm) | 0.295" (7.50mm) | 16 A | - | - | UL |
|
|
CL-30BICL 2.5 OHM 25% 8A 19.56MM |
1,010 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 2.5 Ohms | ±25% | 60 mOhms | 0.770" (19.56mm) | 0.328" (8.33mm) | 8 A | - | - | UL |
|
MF73T-1 6.8/12ICL 6.8 OHM 20% 12A 25MM |
309 |
|
Datasheet |
MF73T-1 | Bulk | Active | 6.8 Ohms | ±20% | 61 mOhms | 0.984" (25.00mm) | 0.394" (10.00mm) | 12 A | - | - | - |
|
MF73T-1 1/20ICL 1 OHM 20% 20A 25MM |
253 |
|
Datasheet |
MF73T-1 | Bulk | Active | 1 Ohms | ±20% | 21 mOhms | 0.984" (25.00mm) | 0.394" (10.00mm) | 20 A | - | - | - |
|
|
CL-101AICL 500 MOHM 25% 16A 23.62MM |
993 |
|
Datasheet |
CL | Bulk | Active | 500 mOhms | ±25% | 20 mOhms | 0.930" (23.62mm) | 0.328" (8.33mm) | 16 A | - | - | UL |
|
|
CL-11AICL 700 MOHM 25% 12A 19.56MM |
991 |
|
Datasheet |
CL | Bulk | Active | 700 mOhms | ±25% | 30 mOhms | 0.770" (19.56mm) | 0.328" (8.33mm) | 12 A | - | - | UL |
|

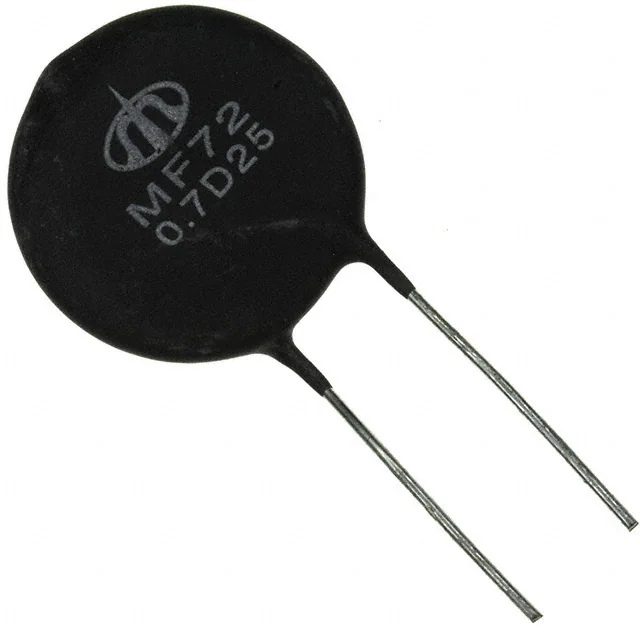

MF72-000.7D25ICL 700 MOHM 20% 12A 27.5MM |
140 |
|
Datasheet |
MF72 | Bulk | Active | 700 mOhms | ±20% | 14 mOhms | 1.083" (27.50mm) | 0.394" (10.00mm) | 12 A | - | - | - |
|
ICL155R006-01ICL 5 OHM 20% 6A 15MM |
786 |
|
Datasheet |
- | Bulk | Active | 5 Ohms | ±20% | 100 mOhms | 0.591" (15.00mm) | 0.310" (7.87mm) | 6 A | - | - | - |
|
|
ICL800D07MIBICL 8 OHM 20% 2A 8.5MM |
2,000 |
|
Datasheet |
ICL | Bulk | Active | 8 Ohms | ±20% | - | 0.335" (8.50mm) | 0.197" (5.00mm) | 2 A | - | - | - |
|
|
ICL151D07MIBICL 15 OHM 20% 2A 8.5MM |
1,974 |
|
Datasheet |
ICL | Bulk | Active | 15 Ohms | ±20% | - | 0.335" (8.50mm) | 0.197" (5.00mm) | 2 A | - | - | - |
|
|
N08SP005MICL 5 OHM 20% 3A 11MM |
4,978 |
|
Datasheet |
SP | Box | Active | 5 Ohms | ±20% | 237 mOhms | 0.433" (11.00mm) | 0.197" (5.00mm) | 3 A | - | - | TUV, UL |
|
|
N08SP003MICL 3 OHM 20% 3A 11MM |
4,836 |
|
Datasheet |
SP | Box | Active | 3 Ohms | ±20% | 230 mOhms | 0.433" (11.00mm) | 0.197" (5.00mm) | 3 A | - | - | TUV, UL |
|
|
ICL301D07MIBICL 30 OHM 20% 1A 8.5MM |
1,975 |
|
Datasheet |
ICL | Bulk | Active | 30 Ohms | ±20% | - | 0.335" (8.50mm) | 0.197" (5.00mm) | 1 A | - | - | - |
|
|
N08SP010MICL 10 OHM 20% 3A 11MM |
4,715 |
|
Datasheet |
SP | Box | Active | 10 Ohms | ±20% | 260 mOhms | 0.433" (11.00mm) | 0.197" (5.00mm) | 3 A | - | - | TUV, UL |
|
|
N10SP005MICL 5 OHM 20% 4A 13.5MM |
4,915 |
|
Datasheet |
SP | Box | Active | 5 Ohms | ±20% | 168 mOhms | 0.531" (13.50mm) | 0.197" (5.00mm) | 4 A | - | - | TUV, UL |
