Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSL766F3Z1INTERLOCK SWITCH 300VAC 10A XCSL |
2,623 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE53120SF13INTERLOCK SW,MECH LOCK_SOL UNLOC |
1,903 |
|
Datasheet |
3SE5 | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 230VAC | 265kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53120SF12INTERLOCK SW,MECH LOCK_SOL UNLOC |
4,647 |
|
Datasheet |
3SE5 | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 115VAC | 265kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53120SF11INTERLOCK SW,MECH LOCK_SOL UNLOC |
4,527 |
|
Datasheet |
3SE5 | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 24V | 265kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
XCSE731122INTERLOCK SOLENOID LOCKING 3PST |
3,693 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | 204kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|

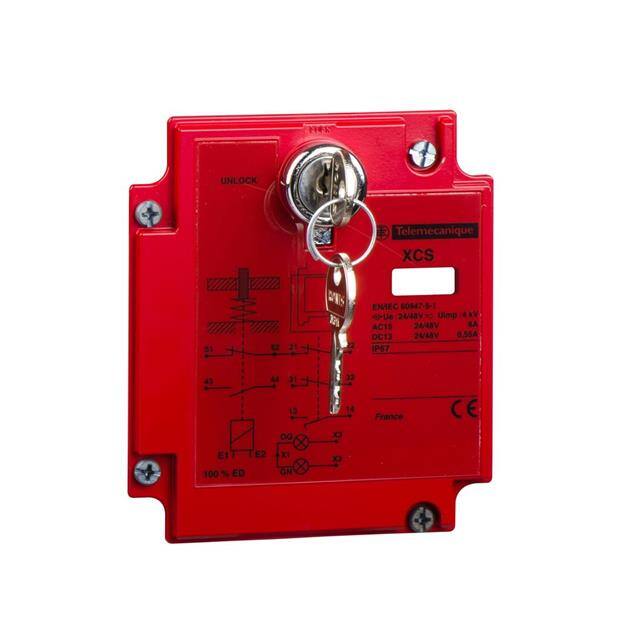

XCSE731123INTERLOCK SOLENOID LOCKING 3PST |
3,885 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | 204kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
|
XCSL784B1INTERLOCK KEY LOCKING |
3,346 |
|
Datasheet |
XCSL | Box | Active | Key Locking | - | - | - | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | - | - | - |
|
|
3SE53122SE12INTERLOCK SW,MECH LK_SOL UNLK,11 |
4,074 |
|
Datasheet |
3SE5 | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 115VAC | 265kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53123SE13INTERLOCK SW,MECH LK_SOL UNLK,23 |
1,333 |
|
Datasheet |
3SE5 | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 230VAC | 265kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53121SE11INTERLOCK SW,MECH LK_SOL UNLK,24 |
1,443 |
|
Datasheet |
3SE5 | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 24V | 265kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53220SJ23INTERLOCK SW,MECH LOCK_SOL UNLOC |
2,217 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 230VAC | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53220SJ21INTERLOCK SW,MECH LOCK_SOL UNLOC |
1,755 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 24V | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53220SJ22INTERLOCK SW,MECH LOCK_SOL UNLOC |
1,126 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 115VAC | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
TL4019-41103SMINTERLOCK SOLENOID LOCKING 4PST |
3,366 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 110VAC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
D4BL-1CRA-AINTERLOCK SOLENOID RELEASE DPST |
4,452 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 115VAC | 24VDC | 71kgf | 6A (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4BL-2DRA-AINTERLOCK SOLENOID RELEASE DPST |
3,161 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Release | DPST-NC (DB) + SPST-NC (DB) | 115VAC | 24VDC | 71kgf | 6A (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, CSA, UL | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4BL-4CRA-AINTERLOCK SOLENOID RELEASE DPST |
1,449 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 115VAC | 24VDC | 71kgf | 6A (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, CSA, UL | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
XCSLF272731M2INTERLOCK KEY LOCKING DPST |
4,762 |
|
Datasheet |
XCSLF | Box | Active | Key Locking | DPST-NC | 24VAC, 24VDC | - | - | 1.5A (AC), 220mA (DC) | Panel Disconnect | Connector | - | - | - | CSA, TUV, UL | - | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C |
|
|
D4BL-4DRA-NPTINTERLOCK SWITCH SNAP ACT |
2,466 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

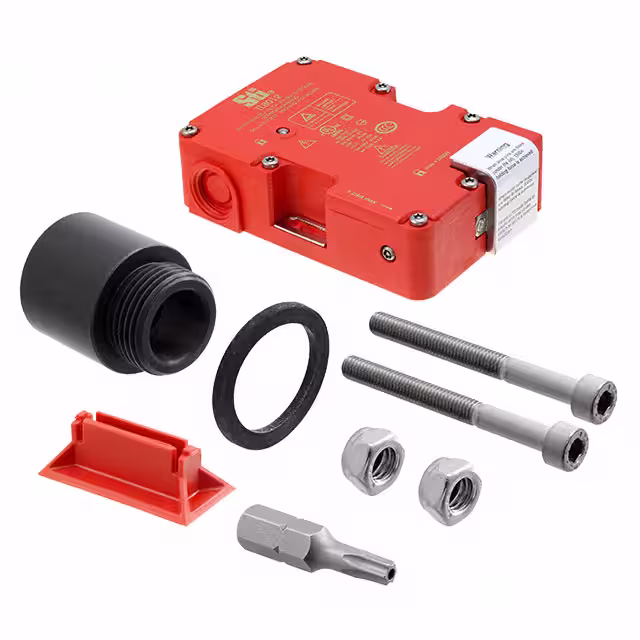

TL8012-S2024SMINTERLOCK SOLENOID LOCKING 5PST |
1,042 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Locking | 5PST-3NC/2NO | 100VAC, 24VDC | 24VAC/DC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
