Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

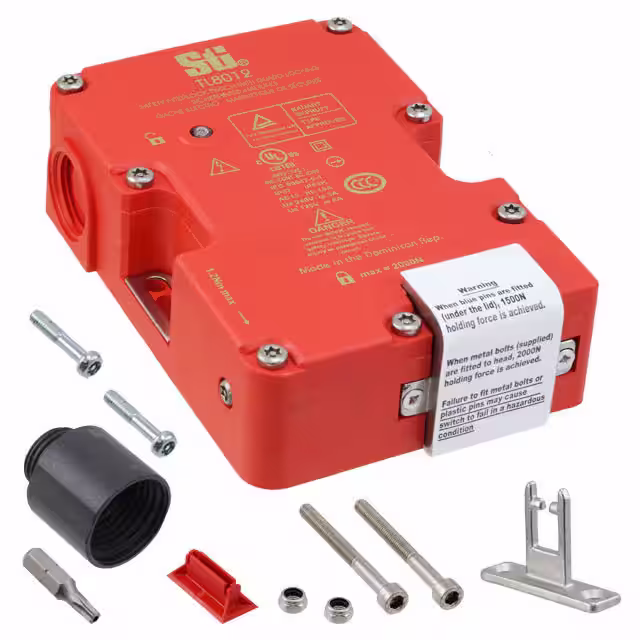

TL8012-S1024SMINTERLOCK SOLENOID RELEASE 5PST |
4,812 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Release | 5PST-3NC/2NO | 100VAC, 24VDC | 24VAC/DC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
1077942SAFETY LOCKING DEVICES, MLP1, ML |
3,938 |
|
Datasheet |
MLP1 | Bulk | Active | RFID | - | - | 19.2 ~ 28.8VDC | 56kgf | 100mA (DC) | Panel Disconnect | Cable with Connector (M12) | - | - | 45mm | CE, cULus, EAC, FCC, RCM | M12 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
3SE53221SG211AG4POS.SW. W. SOL. INTERL. W.ESC.RE |
4,252 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 24V | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP66/IP67/IP69 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
XCSE731121INTERLOCK KEY LOCKING 3PST |
4,445 |
|
Datasheet |
XCSE | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 3A (AC), 550mA (DC) | Panel Disconnect | Cable Leads | - | - | - | CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
TL4024-10243INTERLOCK SOLENOID RELEASE 4PST |
4,473 |
|
Datasheet |
TL4024 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 153kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | 1/2" NPT x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
|
XCSLF3737343INTERLOCK KEY LOCKING 3PST |
4,029 |
|
Datasheet |
XCSLF | Box | Active | Key Locking | 3PST-2NC/1NO | 240VAC, 24VDC | - | - | 750mA (AC), 550mA (DC) | Panel Disconnect | Cable Leads | - | - | - | CSA, TUV, UL | 1/2" NPT | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
XCSLF3535343INTERLOCK KEY LOCKING 3PST |
1,725 |
|
Datasheet |
XCSLF | Box | Active | Key Locking | 3PST-2NO/1NC | 240VAC, 24VDC | - | - | 750mA (AC), 550mA (DC) | Panel Disconnect | Cable Leads | - | - | - | CSA, TUV, UL | 1/2" NPT | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
XCSLF3535332INTERLOCK KEY LOCKING 3PST |
3,538 |
|
Datasheet |
XCSLF | Box | Active | Key Locking | 3PST-2NO/1NC | 240VAC, 24VDC | - | - | 750mA (AC), 550mA (DC) | Panel Disconnect | Cable Leads | - | - | - | CSA, UL | M20 x 1.5 | IP66 - Dust Tight, Waterproof | -25°C ~ 60°C |
|
|
3SE53220SH21POS.SWITCH W. TUMBLER W.ESCAPE R |
3,518 |
|
Datasheet |
3SE5 | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 24V | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53221SJ21INTERLOCK SW,MECH LK_SOL UNLK,24 |
1,976 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 24V | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53223SJ23INTERLOCK SW,MECH LK_SOL UNLK,23 |
2,328 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 230VAC | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53222SJ22INTERLOCK SW,MECH LK_SOL UNLK,11 |
4,710 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 115VAC | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
XCSLE3838342INTERLOCK KEY LOCKING 3PST |
3,569 |
|
Datasheet |
XCSLE | Box | Active | Key Locking | 3PST-NC | 240VAC, 24VDC | - | - | 750mA (AC), 550mA (DC) | Panel Disconnect | Cable Leads | - | - | - | CSA, TUV, UL | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
XCSLE3737342INTERLOCK KEY LOCKING 3PST |
2,714 |
|
Datasheet |
XCSLE | Box | Active | Key Locking | 3PST-2NC/1NO | 240VAC, 24VDC | - | - | 750mA (AC), 550mA (DC) | Panel Disconnect | Cable Leads | - | - | - | CSA, TUV, UL | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
XCSLF2727342INTERLOCK KEY LOCKING DPST |
1,865 |
|
Datasheet |
XCSLF | Box | Active | Key Locking | DPST-NC | 240VAC, 24VDC | - | - | 750mA (AC), 550mA (DC) | Panel Disconnect | Cable Leads | - | - | - | CSA, TUV, UL | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
TL4019-31103F1MINTERLOCK SOLENOID RELEASE 4PST |
4,182 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 110VAC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|

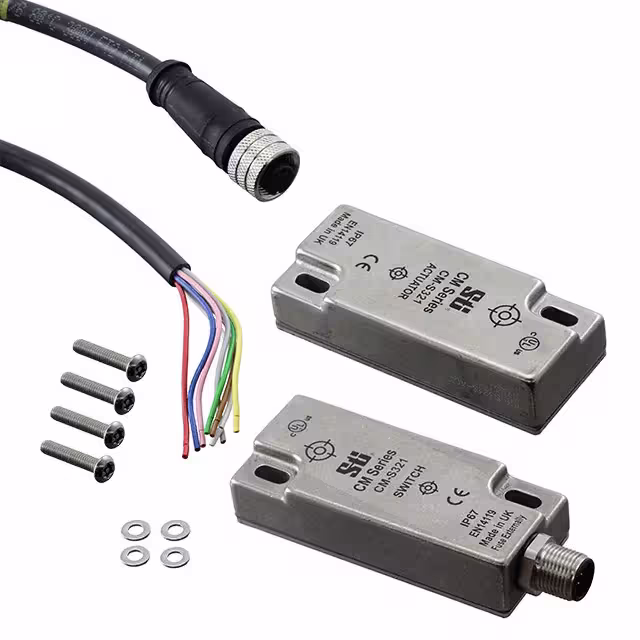

CM-S321SCC5INTERLOCK MAGNETIC 3PST |
2,316 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable with Connector (M12) | - | 7mm | 10mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 95°C |
|
|
XCSLF3737612INTERLOCK KEY LOCKING 3PST |
2,034 |
|
Datasheet |
XCSLF | Box | Active | Key Locking | 3PST-2NC/1NO | 240VAC, 24VDC | - | - | 750mA (AC), 550mA (DC) | Panel Disconnect | Cable Leads | - | - | - | CSA, TUV, UL | M20 x 1.5 | IP66 - Dust Tight, Waterproof | -25°C ~ 60°C |
|
|
TL4019-30241RRQDINTERLOCK SOLENOID RELEASE 4PST |
2,222 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
3SE63151BB01SAFETY SWITCH,RFID,MAG LATCH,FAM |
4,009 |
|
Datasheet |
SIRIUS 3SE63 | Box | Active | RFID | - | 24VDC | 20.4 ~ 26.4VDC | - | 600mA (DC) | Panel Disconnect | Connector (M12) | - | - | - | CE, EAC, RCM, UKCA, UL | - | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C |
