Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSTA791INTERLOCK NON-LOCKING 3PST |
3,742 |
|
Datasheet |
XCSTA | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG11 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D4NH-2BASINTERLOCK HINGE DPST |
1,213 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
631.1208.614INTERLOCK MAGNETIC SPST |
1,841 |
|
Datasheet |
- | Bulk | Active | Magnetic | SPST-NO | 250VAC/DC | - | - | 500mA (AC/DC) | Non-Contact | Cable Leads | - | 18mm | - | - | - | IP67 - Dust Tight, Waterproof | -20°C ~ 70°C |
|
|
HS6B-02RR03-2-TK2236INTERLOCK NON-LOCKING DPST 3M |
4,564 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | DPST-NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-02RR03-1-TK2236INTERLOCK NON-LOCKING DPST 3M |
4,298 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | DPST-NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-11RR03-2-TK2236INTERLOCK NON-LOCKING DPST |
2,799 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | DPST-NO/NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-03RR03-TK2236INTERLOCK NON-LOCKING 3PST 3M |
4,101 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | 3PST-NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-11RR03-1-TK2236INTERLOCK NON-LOCKING DPST |
3,110 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | DPST-NO/NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-12RR03-TK2236INTERLOCK NON-LOCKING 3PST |
2,249 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS7A-DMP5002INTERLOCK SWITCH SAFETY NON-CONT |
4,912 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS5D-02ZRNINTERLOCK SW SAFETY METAL HEAD |
4,816 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS5D-02ZRNPINTERLOCK SW SAFETY METAL HEAD |
4,342 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS5D-02ZRNMINTERLOCK SWITCH METAL HEAD |
2,265 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS5D-11ZRNINTERLOCK NON-LOCKING DPST |
1,299 |
|
Datasheet |
HS5D | Bulk | Active | Non-Locking | DPST-NO/NC | 125VAC, 30VDC | - | 5kgf | 2.5A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
HS5D-11ZRNMINTERLOCK NON-LOCKING DPST |
2,700 |
|
Datasheet |
HS5D | Bulk | Active | Non-Locking | DPST-NO/NC | 125VAC, 30VDC | - | 5kgf | 2.5A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
HS5D-11ZRNPINTERLOCK NON-LOCKING DPST |
4,604 |
|
Datasheet |
HS5D | Bulk | Active | Non-Locking | DPST-NO/NC | 125VAC, 30VDC | - | 5kgf | 2.5A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

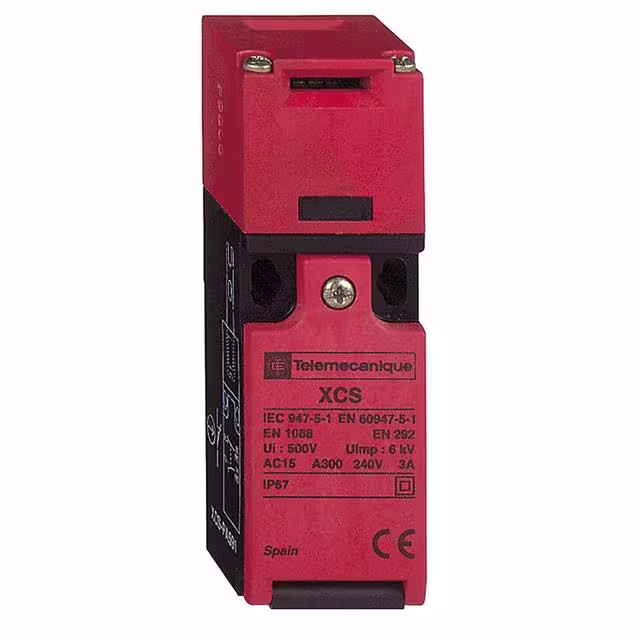

XCSPA692INTERLOCK NON-LOCKING DPST |
1,921 |
|
Datasheet |
XCSPA | Box | Active | Non-Locking | DPST-NO/NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | M16 x 1.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
D4NS-3ADINTERLOCK NON-LOCKING DPST |
2,791 |
|
Datasheet |
D4NS | Bulk | Obsolete | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | 1/2" NPT | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
HS6B-02RR03-6-TK2236INTERLOCK NON-LOCKING DPST |
3,195 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | DPST-NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-02RR03-5-TK2236INTERLOCK NON-LOCKING DPST |
2,601 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | DPST-NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
