Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSPL561INTERLOCK NON-LOCKING DPST |
1,390 |
|
Datasheet |
XCSPL | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | BG, CSA, UL | PG11 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
T4012-011INTERLOCK NON-LOCKING DPST |
2,945 |
|
Datasheet |
T4012 | Bulk | Obsolete | Non-Locking | DPST-NO/NC | 230VAC, 24VDC | - | 3kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
|
XCSPA991INTERLOCK KEY LOCKING 3PST |
2,546 |
|
Datasheet |
XCSPA | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG11 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
SMSA2P10INTERLOCK MAGNETIC SPST |
3,560 |
|
Datasheet |
SMS | Box | Active | Magnetic | SPST-NO | - | 100VAC | - | 250mA (AC) | Non-Contact | Wire Leads | - | 16mm | 20mm | - | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
3SE52320QV40INTERLOCK SW,TOP&SIDE ENTRY,1NO+ |
1,164 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 125VAC, 24VDC | - | - | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C |
|

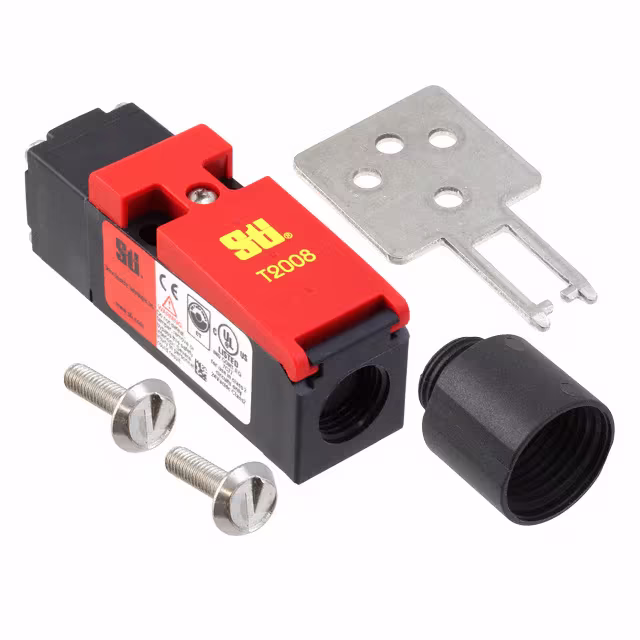

T2008-02TMINTERLOCK NON-LOCKING DPST |
2,140 |
|
Datasheet |
T2008 | Bulk | Obsolete | Non-Locking | DPST-NC | 230VAC, 24VDC | - | 612gf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M16 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
|
HS6B-03RR03-5-TK2236INTERLOCK NON-LOCKING 3PST |
2,210 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | 3PST-NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-12RR03-5-TK2236INTERLOCK NON-LOCKING 3PST |
3,629 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-03RR03-6-TK2236INTERLOCK NON-LOCKING 3PST |
2,518 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | 3PST-NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-12RR03-6-TK2236INTERLOCK NON-LOCKING 3PST |
4,702 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-02B03INTERLOCK NON-LOCKING DPST |
2,954 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | DPST-NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-11B03INTERLOCK NON-LOCKING DPST |
3,668 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | DPST-NO/NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
XCSPR552INTERLOCK NON-LOCKING DPST |
4,479 |
|
Datasheet |
Telemecanique XCS | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Shaft | Screw Terminal | - | - | - | BG, CSA, UL | M16 x 1.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
SMSA2P02INTERLOCK MAGNETIC DPST |
2,389 |
|
Datasheet |
SMS | Box | Active | Magnetic | DPST-NO/NC | - | 100VAC | - | 250mA (AC) | Non-Contact | Wire Leads | - | 15mm | 20mm | - | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
SMSA2P03INTERLOCK MAGNETIC 4PST |
1,509 |
|
Datasheet |
SMS | Box | Active | Magnetic | 4PST-2NO/2NC | - | 100VAC | - | 250mA (AC) | Non-Contact | Wire Leads | - | 16mm | 20mm | CE | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
D4NH-1CBCINTERLOCK HINGE 3PST |
3,378 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NH-1DBCINTERLOCK HINGE 3PST |
3,365 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NH-1EASINTERLOCK HINGE DPST |
1,689 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC (MBB) | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NH-1EBCINTERLOCK HINGE DPST |
1,353 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC (MBB) | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NH-2EASINTERLOCK HINGE DPST |
4,699 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC (MBB) | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
