Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS6B-11RR05-TK2236INTERLOCK NON-LOCKING DPST |
2,905 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | DPST-NO/NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
XCSPR752INTERLOCK NON-LOCKING DPST |
3,141 |
|
Datasheet |
Telemecanique XCS | Box | Active | Non-Locking | DPST-NC | - | - | - | - | Shaft | Screw Terminal | - | - | - | BG, CSA, UL | M16 x 1.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
3SE52320QV401AA1INTERLOCK SW, TOP&SIDE ENTRY, 1N |
1,989 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 125VAC, 24VDC | - | - | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C |
|
XCSPL751INTERLOCK NON-LOCKING DPST |
3,523 |
|
Datasheet |
XCSPL | Box | Active | Non-Locking | DPST-NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Arm Lever | Screw Terminal | - | - | - | BG, CSA, UL | PG11 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
XCSPL563INTERLOCK NON-LOCKING DPST |
2,648 |
|
Datasheet |
XCSPL | Box | Active | Non-Locking | DPST-NO/NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Arm Lever | Screw Terminal | - | - | - | BG, CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
6022316INTERLOCK SWITCH SAFETY |
1,673 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4BS-55FSINTERLOCK NON-LOCKING DPST |
3,423 |
|
Datasheet |
D4BS | Bulk | Obsolete | Non-Locking | DPST-NO/NC | 120VAC | - | 2kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | PG13.5 x3 | IP67 - Dust Tight, Waterproof | -40°C ~ 80°C |
|
|
D4NH-3CASINTERLOCK HINGE 3PST |
3,094 |
|
Datasheet |
D4NH | Bulk | Obsolete | Hinge | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | 1/2" NPT | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NH-1FASINTERLOCK HINGE 3PST |
4,201 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO (MBB) | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NH-1FBCINTERLOCK HINGE 3PST |
2,724 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO (MBB) | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NH-2FASINTERLOCK HINGE 3PST |
4,017 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO (MBB) | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
XCSPR562INTERLOCK NON-LOCKING DPST |
2,912 |
|
Datasheet |
Telemecanique XCS | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Shaft | Screw Terminal | - | - | - | BG, CSA, UL | M16 x 1.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
XCSDMC5902EXINTERLOCK MAGNETIC DPST |
1,512 |
|
Datasheet |
XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 100VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 5mm | 15mm | - | - | IP66 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
|
HS6B-03B03INTERLOCK NON-LOCKING 3PST |
1,824 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | 3PST-NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
HS6B-12B03INTERLOCK NON-LOCKING 3PST |
3,582 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
631.0308.595INTERLOCK MAGNETIC SPDT |
3,442 |
|
Datasheet |
- | Bulk | Active | Magnetic | SPDT | 30VAC, 30VDC | - | - | 1A (AC/DC) | Non-Contact | Connector | - | 13mm | 32mm | - | - | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C |
|

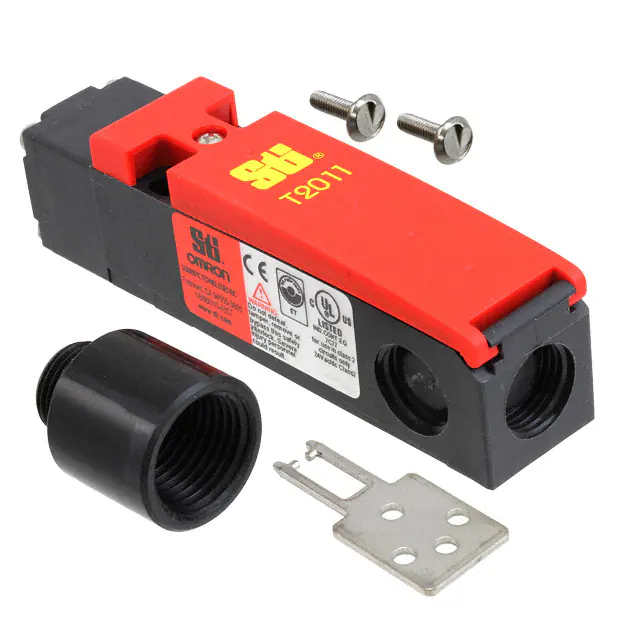

T2011-030TMINTERLOCK NON-LOCKING 3PST |
3,247 |
|
Datasheet |
T2011 | Bulk | Obsolete | Non-Locking | 3PST-NC | 230VAC, 24VDC | - | 612gf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M16 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
|
MC-S121INTERLOCK MAGNETIC |
1,463 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | - | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable Leads | - | 5mm | 11mm | CE, cULus | - | IP68 - Dust Tight, Waterproof | -25°C ~ 125°C |
|
|
XCSPA891INTERLOCK KEY LOCKING 3PST |
3,991 |
|
Datasheet |
XCSPA | Box | Active | Key Locking | 3PST-2NO/1NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG11 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
D4BS-45FSINTERLOCK NON-LOCKING DPST |
2,567 |
|
Datasheet |
D4BS | Bulk | Active | Non-Locking | DPST-NO/NC | 120VAC | - | 2kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 | IP67 - Dust Tight, Waterproof | -40°C ~ 80°C |
