Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KO106A102SWITCH KEYLOCK 2POS SPST 1A 125V |
1,878 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 1A (AC) | 125 V | Off-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 12.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
KO130OA126SWITCH KEYLOCK 2POS DPDT 4A 125V |
3,155 |
|
Datasheet |
KO | Bulk | Active | DPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | 3 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|

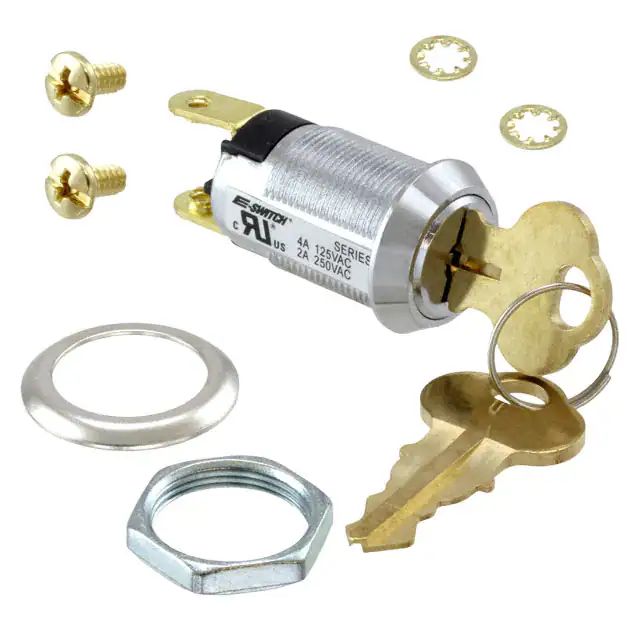

KO128B2007SWITCH KEYLOCK 2POS SPST 4A 125V |
548 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Screw Terminal | Panel Mount | - | - |
|
KO129ESWITCH KEYLOCK 2POS SPDT 4A 125V |
793 |
|
Datasheet |
KO | Bulk | Active | SPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-Mom | 28 V | Flat Key | 3 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
CKL12ATW01-001SWITCH KEYLOCK 2POS SPDT 3A 250V |
1,293 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | All | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
Y1011U2C203NQSWITCH KEY 2POS SPDT 4A 125V 4PC |
5,310 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | All | 90° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
LK6JNB126N3SWITCH KEYLOCK 3POS DP3T 4A 125V |
321 |
|
Datasheet |
LK | Bulk | Active | DP3T | 3 | Not Specified | 4A (AC/DC) | 125 V | On-On-On | 28 V | Flat Key | All | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
LK6SNB126N3SWITCH KEYLOCK 2POS DPDT 4A 125V |
446 |
|
Datasheet |
LK | Bulk | Active | DPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
SK12AAW01SWITCH KEYLOCK 2POS SPDT 3A 125V |
1,264 |
|
Datasheet |
SK | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 125 V | On-On | - | Flat Key | All | 90° | Silver (Ag) | Circular - 12.00mm Dia | - | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
LK6HNB126N3SWITCH KEYLOCK 3POS DP3T 4A 125V |
281 |
|
Datasheet |
LK | Tray | Active | DP3T | 3 | Not Specified | 4A (AC/DC) | 125 V | On-On-On | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
SK12BG13SWITCH KEYLK 2POS SPDT 0.4VA 28V |
4,445 |
|
Datasheet |
SK | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | On-On | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | - | Gold | PC Pin | Through Hole | Process Sealed | -25°C ~ 70°C |
|
CKM12BFW01-001SWITCH KEYLOCK 2POS SPDT 3A 250V |
670 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

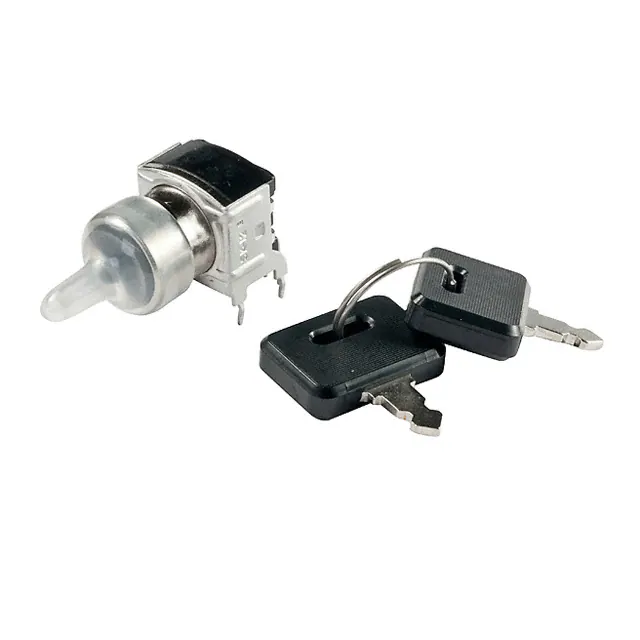

SK12BG30SWITCH KEYLK 2POS SPDT 0.4VA 28V |
605 |
|
Datasheet |
SK | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | On-On | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | - | Gold | PC Pin | Through Hole, Right Angle | Process Sealed | -25°C ~ 70°C |
|
|
SK13DAW01SWITCH KEYLOCK 3POS SPDT 3A 125V |
420 |
|
Datasheet |
SK | Bulk | Active | SPDT | 3 | Non-Shorting (BBM) | 3A (AC) | 125 V | On-Off-On | - | Flat Key | All | 45° | Silver (Ag) | Circular - 12.00mm Dia | - | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12BFW01-001SWITCH KEYLOCK 2POS SPDT 3A 250V |
190 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
Y101132C203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
678 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | 1 only | 90° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
SK22BG13SWITCH KEYLK 2POS DPDT 0.4VA 28V |
1,712 |
|
Datasheet |
SK | Box | Active | DPDT | 2 | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | On-On | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | - | Gold | PC Pin | Through Hole | Process Sealed | -25°C ~ 70°C |
|
H1011U2F205NQSWITCH KEYLCK 2POS SPDT 12A 125V |
2,171 |
|
Datasheet |
H | Tray | Active | SPDT | 2 | Not Specified | 12A (AC), 1A (DC) | 125 V | On-On | 125 V | Flat Key | All | 90° | Copper | Circular - 19.30mm Dia | Silver | Quick Connect - 0.110" (2.8mm) | Panel Mount | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
Y2011U2C203NQSWITCH KEY 2POS DPDT 4A 125V 4PC |
558 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | All | 90° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
Y201132C203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
1,129 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | 1 only | 90° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | - |
