Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CKL12BTW01-001SWITCH KEYLOCK 2POS SPDT 3A 250V |
164 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
Y201132R203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
3,728 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | 1 only | 90° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | Antistatic | - |
|
LK5ENB126N3SWITCH KEYLOCK 3POS SP3T 4A 125V |
1,173 |
|
Datasheet |
LK | Tray | Active | SP3T | 3 | Not Specified | 4A (AC/DC) | 125 V | Mom-On-Mom | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
Y100AA2C203NQSWITCH KEYLOCK 3POS SP3T 4A 125V |
216 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | Not Specified | 4A (AC/DC) | 125 V | On-On-On | 28 V | Flat Key | All | 45° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
LK6SGB126M3SWITCH KEYLOCK 2POS DPDT 4A 125V |
168 |
|
Datasheet |
LK | Bag | Active | DPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
LK68GB126M3SWITCH KEYLOCK 2POS DPDT 4A 125V |
145 |
|
Datasheet |
LK | Bag | Active | DPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
SK22BG30SWITCH KEYLK 2POS DPDT 0.4VA 28V |
307 |
|
Datasheet |
SK | Box | Active | DPDT | 2 | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | On-On | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | - | Gold | PC Pin | Through Hole, Right Angle | Process Sealed | -25°C ~ 70°C |
|
Y1900S2C207NQSWITCH KEYLOCK 4POS SP4T 4A 125V |
127 |
|
Datasheet |
Y | Bulk | Active | SP4T | 4 | Not Specified | 4A (AC/DC) | 125 V | On-On-On-On | 28 V | Flat Key | All | 90° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
YF21132C203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
988 |
|
Datasheet |
YF | Tray | Active | DPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | 1 only | 90° | Copper | Circular - 11.99mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | - |
|
84825-01SWITCH KEYLOCK 2POS SPST 20A 12V |
687 |
|
Datasheet |
- | Bulk | Active | SPST | 2 | Not Specified | 20A (DC) | - | Off-On | 12 V | Flat Key | Center | 45° | Brass | Circular - 22.35mm Dia | Tin | Connector | Panel Mount | - | -40°C ~ 85°C |
|
Y200AB2C203NQSWITCH KEYLOCK 4POS DP4T 4A 125V |
127 |
|
Datasheet |
Y | Tray | Active | DP4T | 4 | Not Specified | 4A (AC/DC) | 125 V | On-On-On-On | 28 V | Flat Key | All | 45° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
Y101132V203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
254 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Tubular Key | 1 only | 90° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
84830-07SWITCH KEYLOCK 3POS DPDT 20A 12V |
257 |
|
Datasheet |
- | Bulk | Active | DPDT | 3 | Not Specified | 20A (DC) | - | On-Off-On | 12 V | Flat Key | Center | 45° | Copper | Circular - 22.35mm Dia | - | Screw Terminal | Panel Mount | - | -40°C ~ 85°C |
|
M-6110-05SWITCH KEYLOCK |
221 |
|
Datasheet |
- | Bulk | Active | - | 3 | Not Specified | - | - | Off-On | - | Flat Key | 1 only | 40° | - | - | - | Screw Terminal | Panel Mount | - | - |
|

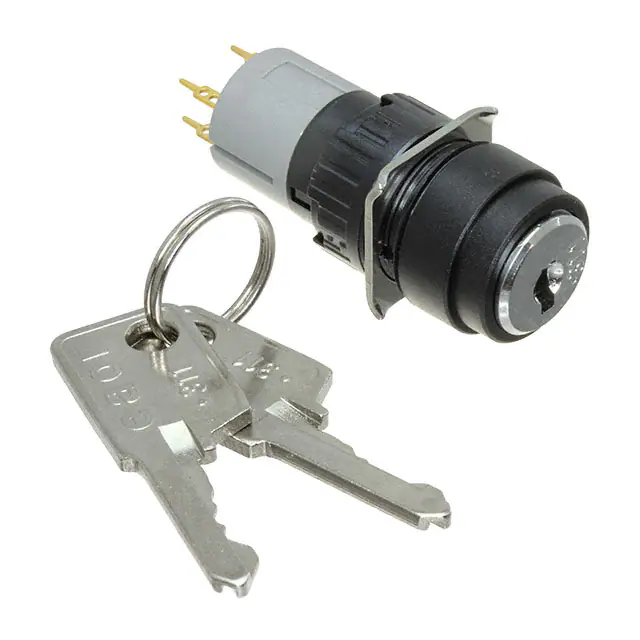

51-414.036DSWITCH KEYLK 2POS DPST 100MA 42V |
343 |
|
Datasheet |
51 | Bulk | Active | DPST-NO | 2 | Not Specified | 100mA (AC/DC) | 42 V | Off-On | 42 V | Flat Key | 1 only | 90° | - | Circular - 16.00mm Dia | - | PC Pin, Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|

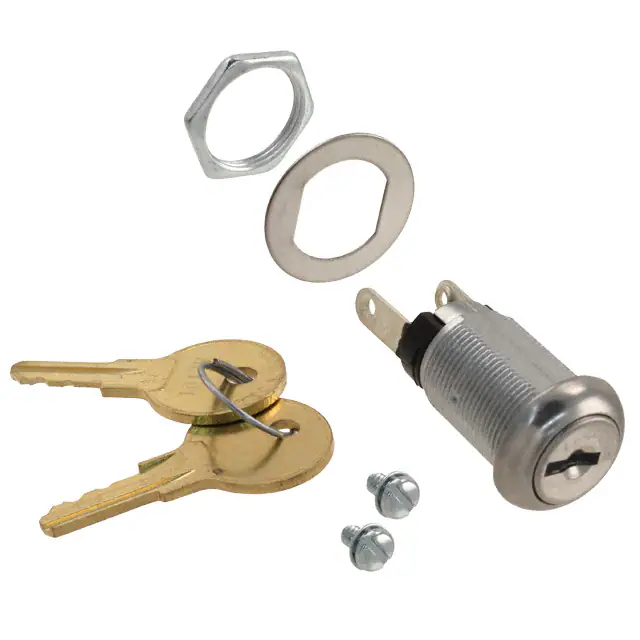

2SWK132AL101SWITCH KEYLOCK 2POS SPST 1A 120V |
1,076 |
|
Datasheet |
SWK | Bulk | Active | SPST | 2 | Non-Shorting (BBM) | 1A (AC) | 120 V | Off-On | - | Flat Key | All | 90° | Silver (Ag) | Circular - 19.20mm Dia | - | Screw Terminal | Panel Mount | - | - |
|
M-489SWITCH KEYLOCK 2POS 10A 12V |
2,129 |
|
Datasheet |
- | Bulk | Active | - | 2 | Not Specified | 10A (DC) | - | Off-Mom | 12 V | Flat Key | 1 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
51-256.025DSWITCH KEYLOCK 2POS 4PST 5A 250V |
1,373 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 2 | Not Specified | 5A (AC) | 250 V | On-Off, Off-On | - | Flat Key | 1 only | 90° | - | Circular - 16.00mm Dia | - | Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|

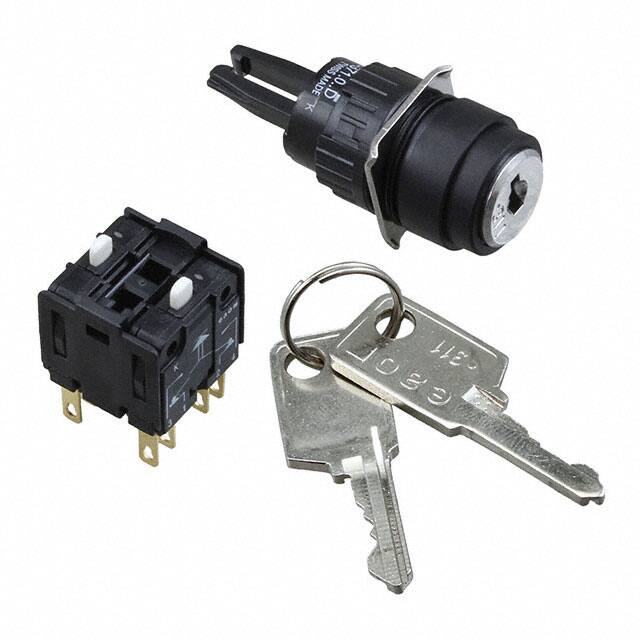

51-378.F22DSWITCH KEYLOCK 3POS 4PST 5A 250V |
4,788 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | Not Specified | 5A (AC) | 250 V | On-Off-Mom | - | Flat Key | Left and Center | 42°, 90° | Silver (Ag) | Circular - 16.20mm Dia | Gold | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65 | -25°C ~ 55°C |
|
KO131A102SWITCH KEYLOCK 2POS SPST 1A 125V |
221 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 1A (AC) | 125 V | Off-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 12.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
